Transducers | LF : 1 x 18″ |
SPL peak / 1m (measured) | 132 dB |
Weight | 53.8kg / 118.61lbs |
Rigging | From 0 to 10° |
Description
B 18 is a compact, powerful LF extension for ARES 8 line arrays, enhancing the system’s low end response and directivity. ARES 8 and B 18 unite with S / MTSub Series subs to form a consistent, high performance, 4-way line array system. B 18 is fully compatible with the ARES 8 rigging system and can be flown alongside, on top of or behind ARES 8 elements, or deployed in ground stack / standalone configurations.
The B 18 houses a long excursion 18″ neodymium driver and combines front diffusion, bass reflex, and transmission line design for ultimate efficiency and performance.

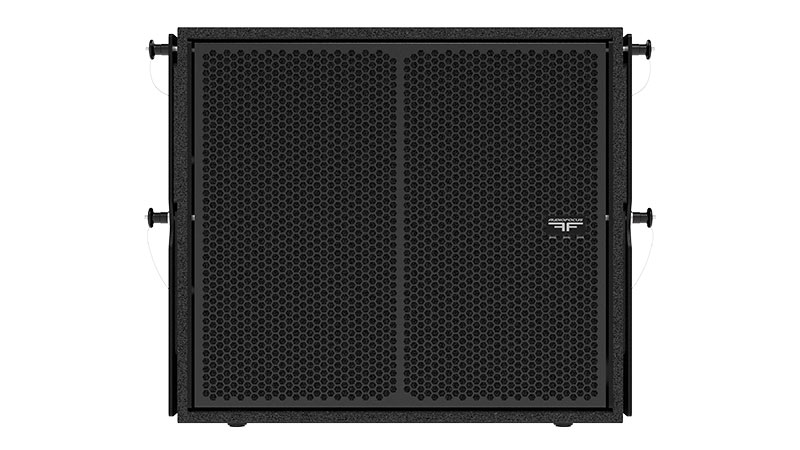

B 18 is built with pride in Belgium and coated in tough, weather-resistant polyurea to safeguard your investment. The cabinet front is protected by a rigid metal grill, backed by acoustically transparent foam.
We recommend AUDIOFOCUS or Powersoft amplifiers for use with B 18.
Features
- LF extension for ARES 8 series
- Flown or ground stacked
- Pole mount socket
- Passive
- Integrated rigging
Technical specifications
Description | LF extension for ARES 8 |
Transducers | LF: 1 x 18″ |
Frequency range (-6dB) | 55Hz-100Hz |
SPL peak (1) | 132 dB |
Processing | Dedicated AUDIOFOCUS SCiO and Armonia/Powersoft |
Rigging | 20 different inter-cabinet angle positions, from 0 to 10° |
Connectors | 2 × 4-point speakON |
Nominal Impedance | 8ohm |
Watt AES/peak | 600/2400W |
Dimensions (H x W x D) | 510 x 650 x 705 mm 20.07 x 25.59 x 27.75 inches |
Weight | 53.8kg / 118.61lbs |
Finish | Highly resistant polyurea coating
|
Cabinet | High grade birch plywood |
(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5
