| Transducers | 2 x 10” neodymium LF transducers |
| SPL peak (1) | 126.5 dB |
| Weight | 23,2kg / 50.71lbs |
Description
C210Sa is a dual-vented bandpass subwoofer, housing a pair of high specification 10” neodymium LF transducers and employing Tetracoil technology for high SPL and superb efficiency. With its low-profile design, C210Sa is a discreet yet powerful option for stylish hospitality and leisure installations as well as corporate AV and live events.

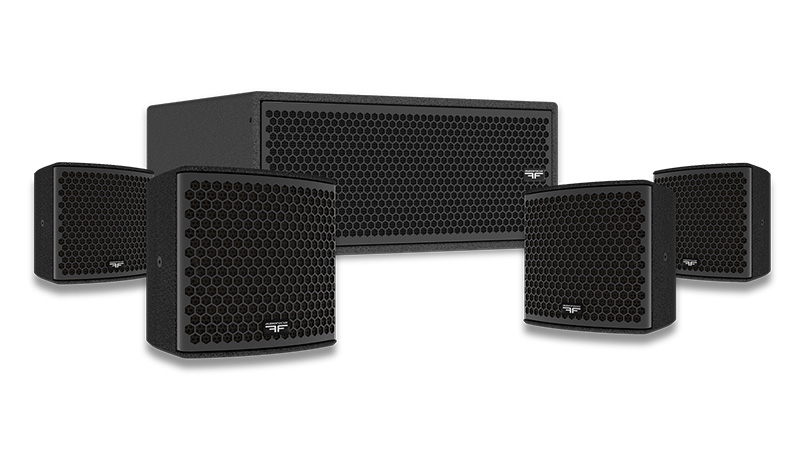

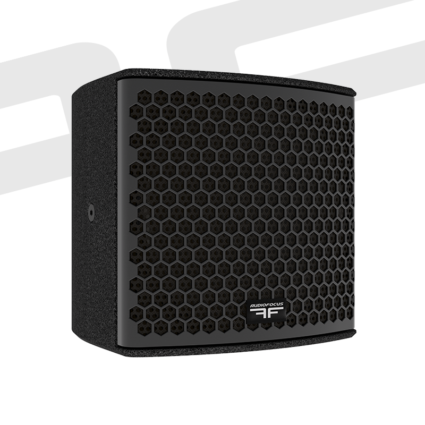

C210Sa features an integral Class D amplifier with full DSP, allowing it to power multiple super-compact Cyris CX6 speakers (up to 4 x CX6 in performance applications and up to 6 x CX6 in spoken word / BGM roles), cutting the need for external hardware and offering a plug ‘n play small PA solution.
C210Sa is built in Belgium by skilled craftspeople and state-of-the-art machinery before being coated in tough, weather-resistant polyurea to safeguard your investment.
Features
- Compact, low-profile design
- 2 x 10” neodymium LF transducers
- Tetracoil technology
- Plug ‘n play system building
- Power up to 6 x CX6 coax speakers
Technical specifications
| Description | Low-profile self-powered live / installation subwoofer |
| Transducers | LF : 2 x 10″ |
| Frequency range (-6dB) | 32Hz-125Hz |
| SPL peak (1) | 126.5 dB |
| Processing | Dedicated AUDIOFOCUS A-series SCiO presets |

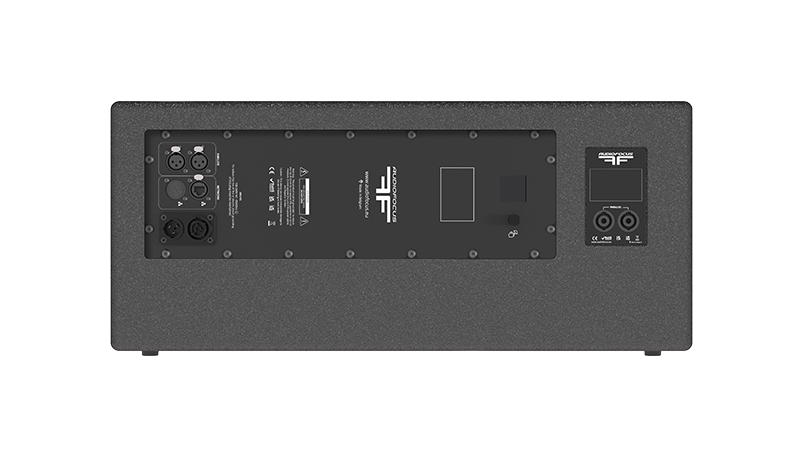

| Input connectors | IN: 2×3-point XLR |
| Output connectors | 2×4-point speakON |
| Power Connectors | IN: 1×3-point powerCON TRUE1TOP LINK: 1×3-point powerCON TRUE1TOP |
| Network connectors | 1 x etherCON for control |
| Dimensions (H x W x D) | 282 x 640 x 500 mm 11,1 x 25,2 x 19,7 inches |
| Weight | 23,2kg / 50.71lbs |
| Finish | Highly resistant polyurea coating |
| Cabinet | High grade birch plywood |
(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5. CEA2010 Max SPL.
