CYRIS CX6

Super-compact 6” coaxial installation / live / fill loudspeaker


TransducersLF: 1×6”
HF : 1× 1”
SPL peak (1)122.4 dB
Nominal directivity (-6dB)90°x 90°
Weight3.05kg / 6.61lbs
Share this product

Description

Cyris CX6 is a super-compact 2-way passive loudspeaker, housing a powerful 6” coaxial neodymium driver in a similar footprint to industry-standard 5” coaxial designs. CX6 delivers class-leading SPL in short-throw applications and is also an ideal fill cabinet in larger installed and touring systems. A naturally cardioid design enables remarkable intelligibility and clarity when discreetly positioned close to walls or corners, while a flared vent manages low frequency distortion.

Cyris CX6 speakers can be paired with the C210S / C210Sa low-profile subwoofer as a compact, plug ‘n play solution for bars, conferences, parties and more. The active C210Sa can power multiple CX6 cabinets, while the passive C210S is ideal when using A-series rack amplifiers. A mic stand attachment and M6 inserts for an optional U bracket add further versatility for integrators and rental companies. When employed as a fill speaker, the CX6 is also an ideal accompaniment to larger ARES, FRX, Carys and VENU series cabinets.

Cyris CX6 upholds AUDIOFOCUS’ reputation for exceptional build quality and audio performance. The CX6 enclosure is hand-built in Belgium from birch plywood and premium components before being encased in a tough, weather-resistant polyurea coating.

Features

  • Super-compact, portable design
  • Plug ‘n play system building
  • Floor / wall / mic stand mounting
  • Full range cardioid vent reduces side / rear reflections for enhanced intelligibility
  • Increased gain before feedback when reinforcing headset / lavalier mics
  • Flair vent to reduce low frequency distortion
  • Rugged birch plywood construction

Technical specifications

Description2-way passive full-range point source
TransducersLF: 1×6”
HF : 1× 1”
Frequency range (-6dB)90Hz-18kHz
Nominal directivity (-6dB)90°x 90°
SPL peak (1)122.4 dB
ProcessingDedicated AUDIOFOCUS A-series SCiO presets
Rigging2 x M6 inserts for optional U bracket
1 × 3/8″ insert for microphone stand

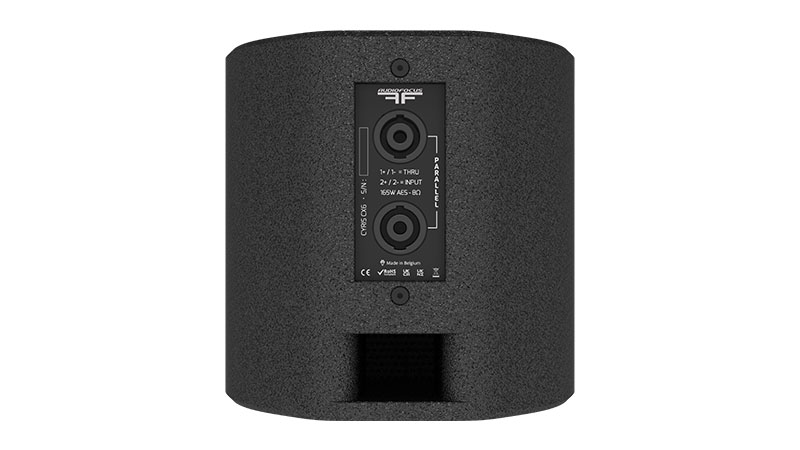

Connectors2×4-point speakON
Nominal Impedance8ohm
Passive cross-over network
Watt AES/peak165W / 660W
Dimensions (H x W x D)174 x 180 x 196 mm
6,85 x 7,09 x 7,72 inches
Weight3,05kg / 6.61lbs
FinishHighly resistant polyurea coating
CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5. Multitone Maximum SPL IEC 60268-21 §18.1.2b, Compression limit of 3dB

GLL file
CX6 Preliminary

Gll • 650 Ko • 13/06/2023

A Series
Operation manual V1.1

PDF • 11 Mo • 09/01/2023

A Series Output Chart
CYRIS CX6

PDF • 2.81 Mo • 05/12/2022

Technical sheets
CYRIS CX6

PDF • 383 Ko • 05/12/2022

SCiO Presets
CYRIS CX6

Zip • 31 Ko • 09/01/2023

Armonia Presets
CYRIS CX6

Spk3 • 2.9 Ko • 13/07/2023

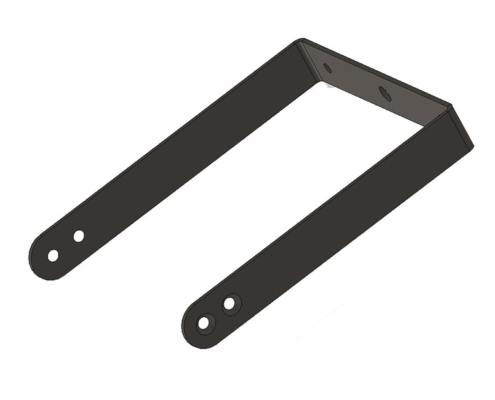

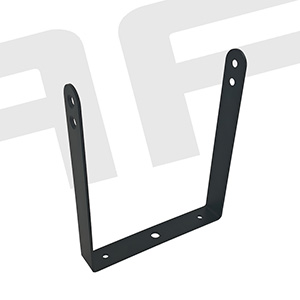

U-BRACKET FOR CX6
