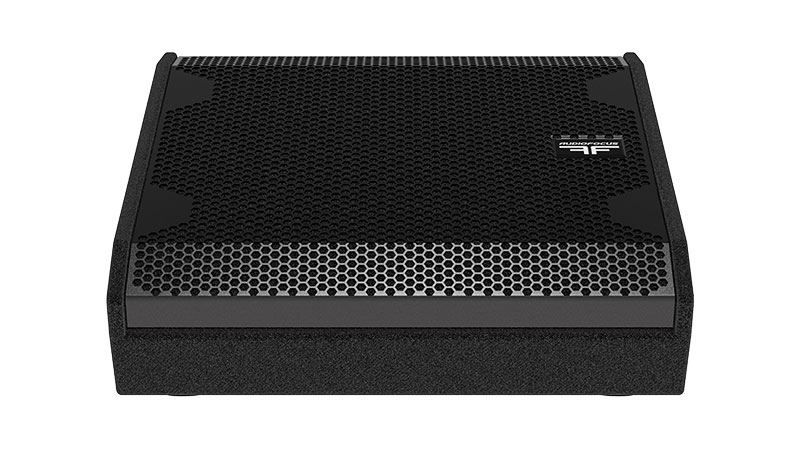

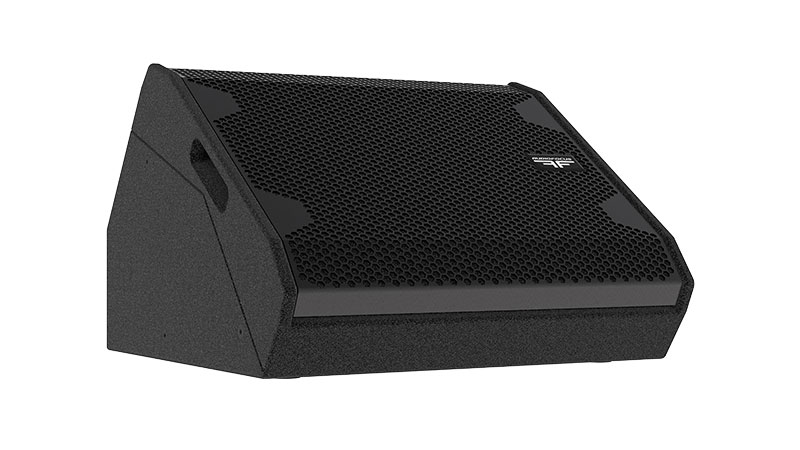

CM 15x

Touring compact coaxial 15″ passive stage monitor


TransducersLF: 1×15’’ / HF : 1×3″
Frequency Range (-6dB)55Hz – 20kHz
SPL peak / 1m (measured)136 dB
Weight20kg / 44.09lbs
Share this product

Description

CM 15x is a uniquely compact, passive 2-way coaxial stage monitor, with the flexibility to serve as a full-range PA speaker, making it a popular choice for live events, touring, DJ sets, drum fills and front fills.

The horn orientation can be changed quickly by hand, with no tools needed. Created to deliver outstanding SPL for its size, CM 15x’s low profile design won’t get in the way of the performance.

The HF driver diaphragm assembly employs a high specification cotton composite dome together with a phasing plug, giving CM 15x its exceptional linearity, precision, and musicality.

We recommend AUDIOFOCUS and Powersoft amplifiers for use with CM 15x.

Housed in a rugged, road-ready enclosure with rigid magnetic grill, CM 15x is built with pride in Belgium and coated in tough, weather-resistant polyurea to protect your investment.

Features

  • 2-Way passive stage monitor
  • Coaxial construction
  • 3’’ compression driver + 15” low frequency transducer
  • Adjustable AF horn 80×60°
  • Ultra-low port noise
  • Tiltable pole mount
  • Rear rain cover included

Technical specifications

DescriptionPassive full-range 15″ coaxial monitor
Transducers LF: 1×15’’
HF: 1×3’’
Frequency range (-6dB)55Hz-20kHz
Nominal directivity (-6dB)80°x60°
Rotatable horn, no tools needed
SPL max (1)139 dB
ProcessingDedicated AUDIOFOCUS SCiO and Powersoft Armonia presets
RiggingAdjustable pole mount and M8 threaded inserts

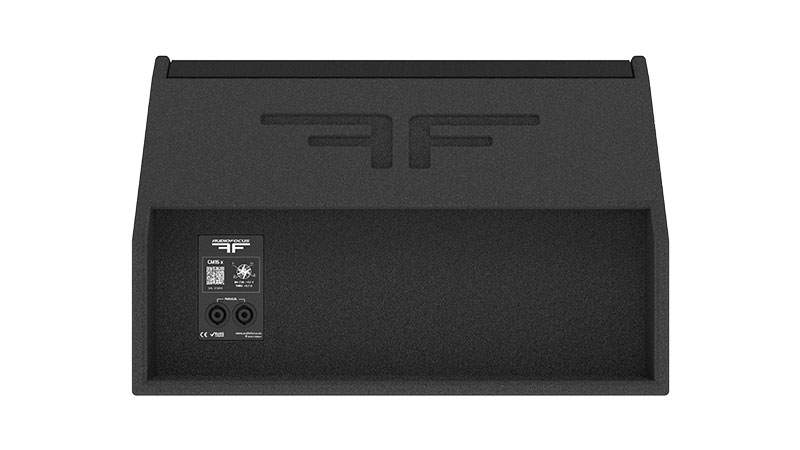

Connectors2 × 4-point speakON
Nominal Impedance8ohm
Passive cross-over network
Watt AES/peak530W/ 2120W
Dimensions (H x W x D)355 x 530 x 515 mm
13.97 x 20.86 x 20.27 inches
Weight20kg / 44.09lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5
