| Transducers | LF: 1×12’’ / HF : 1×3’’ |
| Frequency Range (-6dB) | 60Hz – 20kHz |
| SPL peak / 1m (measured) | 137 dB |
| Weight | 17.2kg / 37.91lbs |
Description

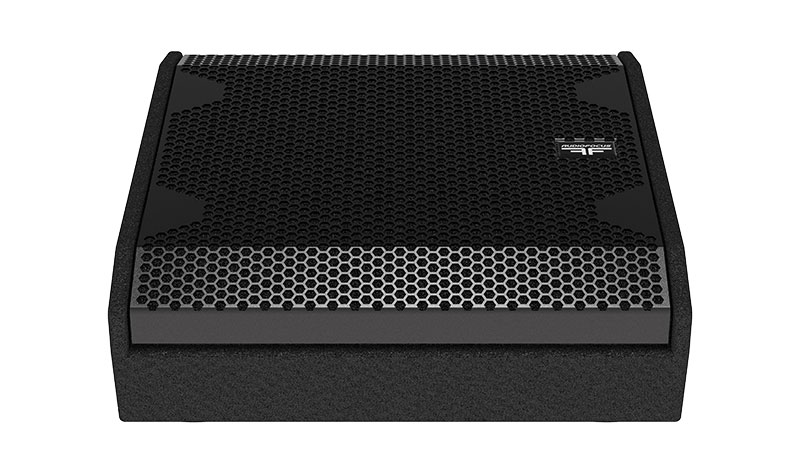

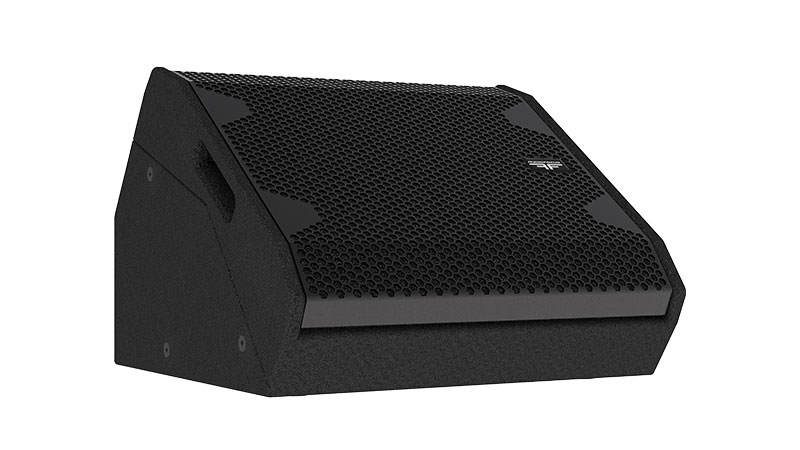

CM 12x is a uniquely compact, passive 2-way coaxial stage monitor, with the flexibility to serve as a full-range PA speaker, making it a popular choice for live events, touring, DJ sets, drum fills, and front fills.
The horn orientation can be changed quickly by hand, with no tools needed. Created to deliver outstanding SPL for its size, CM 12x’s low profile design won’t get in the way of the performance.
The HF driver diaphragm assembly employs a high specification cotton composite dome together with a phasing plug, giving CM 12x its exceptional linearity, precision, and musicality.
We recommend AUDIOFOCUS and Powersoft amplifiers for use with CM 12x.
Housed in a rugged, road-ready enclosure with a rigid magnetic grill, CM 12x is built with pride in Belgium and coated in tough, weather-resistant polyurea to protect your investment.
Features
- 2-Way passive stage monitor
- Coaxial construction
- 3’’ compression driver + 12’’ low frequency transducer
- Adjustable AF horn 70×50°
- X-comb technology inside
- Ultra-low port noise
- Tiltable pole mount
- Rear rain cover included
Technical specifications
| Description | Passive full-range coaxial monitor |
| Transducers | LF: 1×12’’ HF: 1×3’’ |
| Frequency range (-6dB) | 60Hz-20kHz |
| Nominal directivity (-6dB) | 70°x50° Rotatable horn |
| SPL peak (1) | 137 dB |
| Processing | Dedicated AUDIOFOCUS and Powersoft Armonia presets |
| Rigging | Adjustable pole mount and M8 threaded inserts |

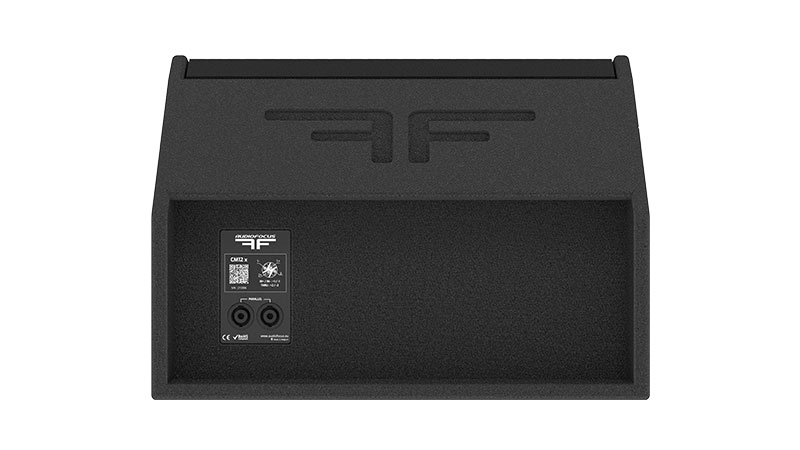

| Connectors | 2 × 4-point speakON |
| Nominal Impedance | 8ohm Passive cross-over network |
| Watt AES/peak | 430W/ 1720W |
| Dimensions (H x W x D) | 336 x 460 x 460mm 13.22 x 18.11 x 18.11 inches |
| Weight | 17.2kg / 37.91lbs |
| Finish | Highly resistant polyurea coating
|
| Cabinet | High grade birch plywood |
(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5
