| Transducers | LF: 1×12’’ / HF : 1×1.4’’ |
| Frequency Range (-6dB) | 55Hz – 20kHz |
| SPL max / 1m (measured) | 136 dB |
| Weight | 31,5kg / 69.44lbs |
Description

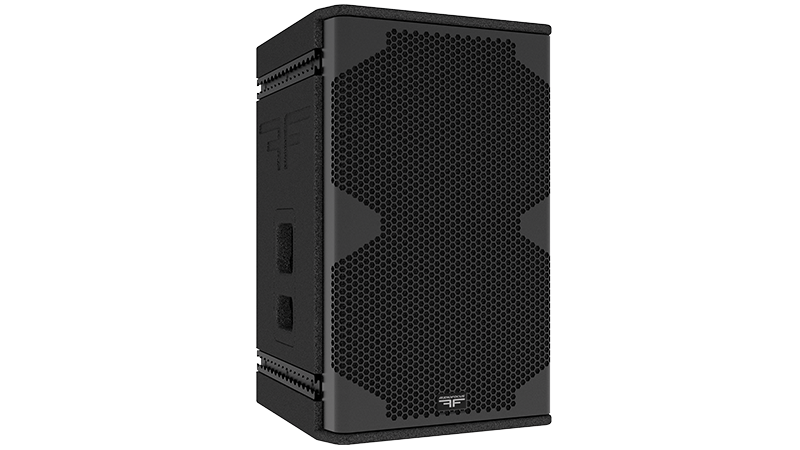

FRX 12 is a compact, powerful bi-amplified 2-way constant curvature loudspeaker, optimized for medium throw, high SPL live applications. FRX 12 is a uniquely versatile building block for systems ranging from single top pole mounts to left/right, central cluster or in the round setups. Typically used in horizontal ground stack configurations, FRX 12 can also be flown horizontally or vertically and its adjustable 80×30° AF horn can be reconfigured quickly without the need for tools.
Our proprietary X-Comb DSP technology eliminates comb effects, ensuring perfect coupling between FRX 12 cabinets and creating a coherent wavefront at any location. The enclosure houses a 1.4’’ diaphragm compression driver loaded with a 12’’ neodymium low-frequency transducer and offers two distinct directivity plans.
FRX 12 can be quickly deployed in any configuration when used with AUDIOFOCUS A Series amplifiers with integral DSP and dedicated presets. Armonia presets are also available for Powersoft amplifiers.

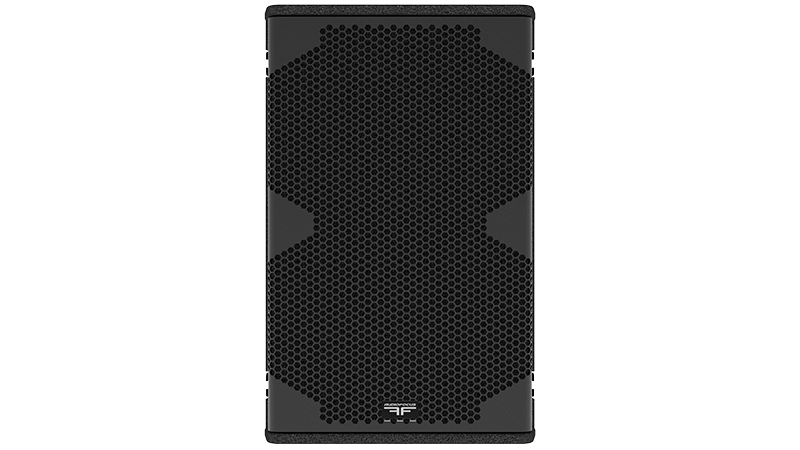

FRX 12 is built with pride in Belgium and coated in tough, weather-resistant polyurea to safeguard your investment. The cabinet front is protected by a rigid metal grill, backed by acoustically transparent foam.
Features
- Multi-function FoH system
- Optimised for medium throw applications
- For audiences of 100-3,000 people
- Bi-amplified
- Adaptive (rotating) AF horn 80×30°
- X-Comb technology inside
Technical specifications
| Description | 2-way bi-amplified full-range constant curvature element |
| Transducers | LF: 1×12’’ HF: 1×4” exit compression driver / voice coil diameter 1.75” |
| Frequency range (-6dB) | 55Hz-20 kHz |
| Nominal directivity (-6dB) | 80°x30° Rotatable horn, no tools needed |
| SPL max (1) | 136 dB |
| Processing | Dedicated AUDIOFOCUS and Powersoft Armonia presets |
| Rigging | Pole mounted and Aeroquip fly tracks with dedicated rigging |

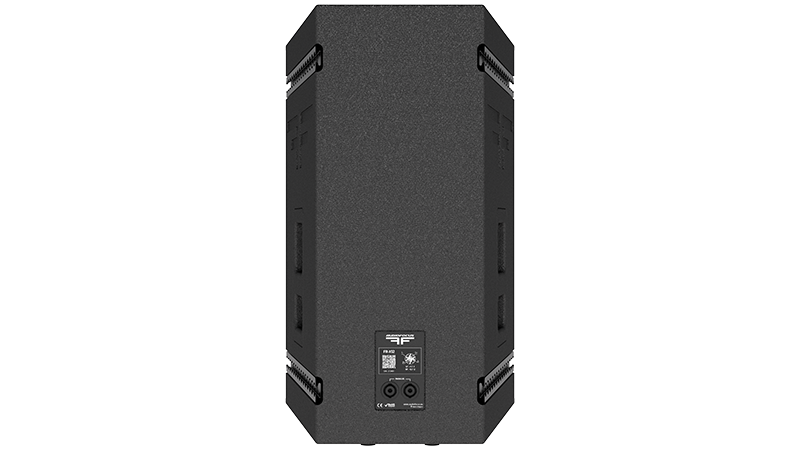

| Connectors | 2 × 4-point speakON |
| Nominal Impedance | LF: 8ohm HF: 8ohm |
| Watt AES/peak | LF: 600/2400W HF: 80/320W |
| Dimensions (H x W x D) | 604 x 382 x 437 mm 23.77 x 15.03 x 17.2 inches
|
| Weight | 31,5kg / 69.44lbs |
| Finish | Highly resistant polyurea coating
|
| Cabinet | High grade birch plywood |
(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5
