| Transducers | LF: 1×12’’ / HF : 1×1.4″ |
| Frequency Range (-6dB) | 55Hz – 20kHz |
| SPL max / 1m (measured) | 136 dB |
| Weight | 33kg / 72.75lbs |
Description

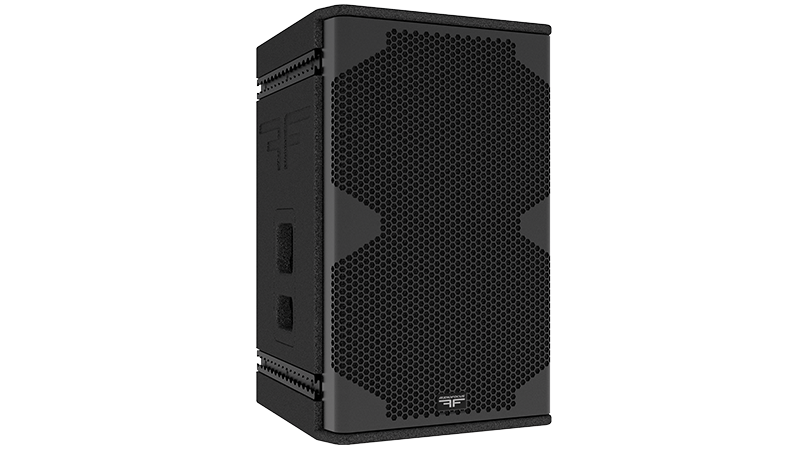

FRX 12a is a compact, powerful self-powered 2-way constant curvature loudspeaker, optimized for medium throw, high SPL live applications. FRX 12a is a uniquely versatile building block for systems ranging from single top pole mounts to left/right, central cluster or in the round setups. Typically used in horizontal ground stack configurations, FRX12a can also be flown horizontally or vertically and its adjustable 80×30° AF horn can be reconfigured quickly without the need for tools.
Our proprietary X-Comb DSP technology eliminates comb effects, ensuring perfect coupling between FRX 12a cabinets and creating a coherent wavefront at any location. The enclosure houses a 1.4’’ diaphragm compression driver loaded with a 12’’ neodymium low-frequency transducer and offers two distinct directivity plans.
An advanced AUDIOFOCUS SCiO Class D amplifier module with integral DSP allows FRX 12a to be quickly deployed in any configuration.

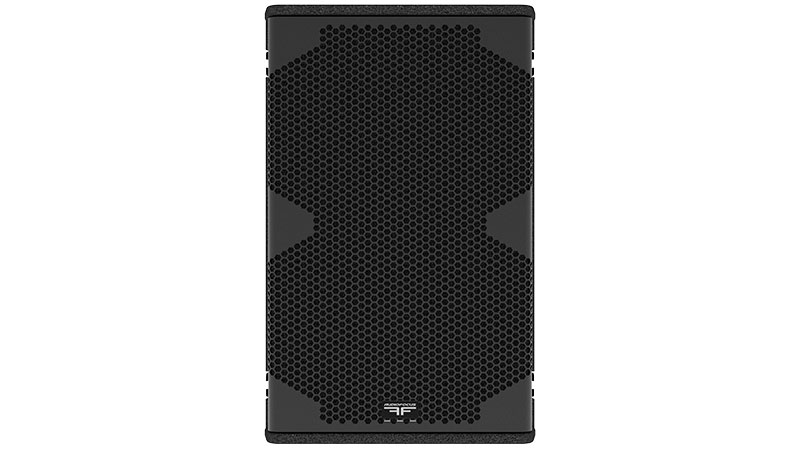

FRX 12a is built with pride in Belgium and coated in tough, weather-resistant polyurea to safeguard your investment. The cabinet front is protected by a rigid metal grill, backed by acoustically transparent foam.
Features
- Multi-function FoH system
- Optimised for medium throw applications
- For audiences of 100-3,000 people
- Self-powered plug ‘n play
- Adaptive (rotating) AF horn 80×30°
- X-Comb technology inside
Technical specifications
| Description | 2-way active self-powered full-range constant curvature element |
| Transducers | LF: 1×12’’ HF: 1×4” exit compression driver / voice coil diameter 1.75” |
| Frequency range (-6dB) | 55Hz-20kHz |
| Nominal directivity (-6dB) | 80°x30° Rotatable horn, no tools needed |
| SPL max (1) | 136 dB |
| Processing | Dedicated AUDIOFOCUS SCiO presets |
| Rigging | Pole mounted and Aeroquip fly tracks with dedicated rigging |
| Audio Connectors | IN: 1×3-point XLR LINK: 1×3-point XLR |
| Network Connectors | 1 x etherCON for control |
| Power Connectors | IN: 1×3-point powerCON TRUE1TOP LINK: 1×3-point powerCON TRUE1TOP |
| Dimensions (H x W x D) | 604 x 382 x 437 mm 23.77 x 15.03 x 17.2 inches
|
| Weight | 33kg / 72.75lbs |
| Finish | Highly resistant polyurea coating
|
| Cabinet | High grade birch plywood |
(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5
- Display 9 Products per page
Gll files for Easeand Easefocus
GLL • 6.69 Mo • 06/01/2022
Quick Start guideSCio Web Connection
PDF • 250 Ko • 13/06/2023
Technical sheetFRX12a
PDF • 800 Ko • 06/01/2022
A4M SCiOUser Manual
PDF • 6.50 Mo • 11/07/2023
SCiO
Connect & Control your amplifiers
AUDIOFOCUS SCiO amplifiers can be securely monitored and controlled anytime, anywhere over the network.
Our intuitive Web UI network manager is web-based, eliminating the need for software downloads, and allows multiple amplifiers to be managed from your preferred device.
The network manager offers the comprehensive processing options you would expect from a high-end system controller.
For more detailed information please visit the AUDIOFOCUS SCiO page.
