Transducers | LF: 1 x 8’’ Tetracoil HF: 1.4” exit / 2.4” voice coil |
SPL peak/1m | 129dB Mtone 12dB crest factor |
Weight | 10.5kg / 23lbs |
Description

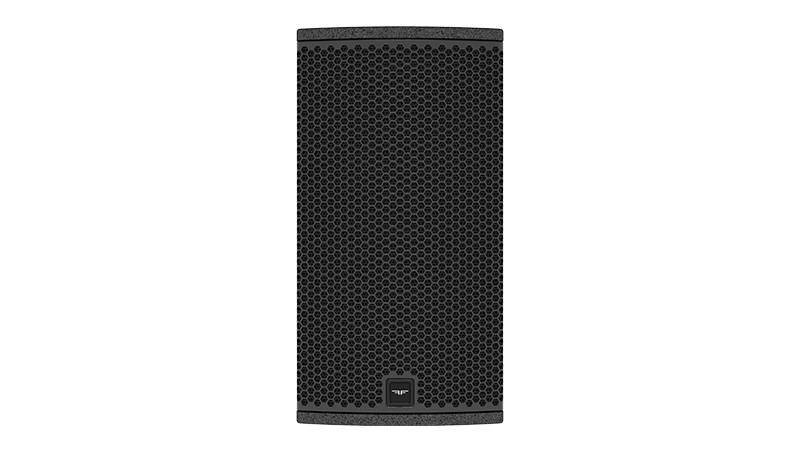

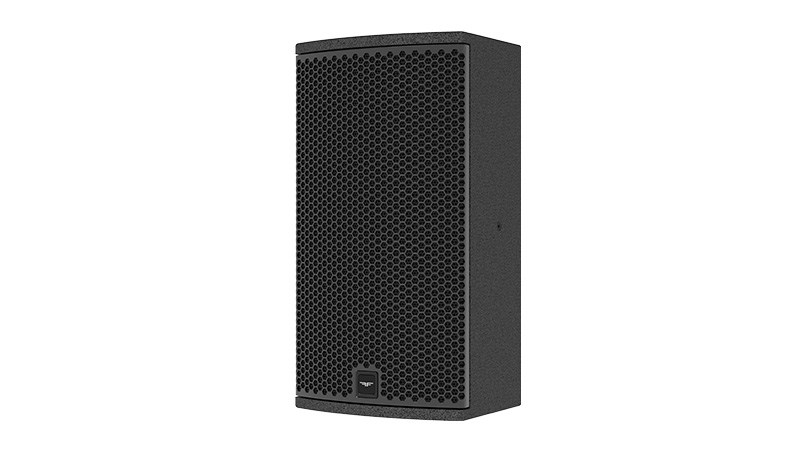

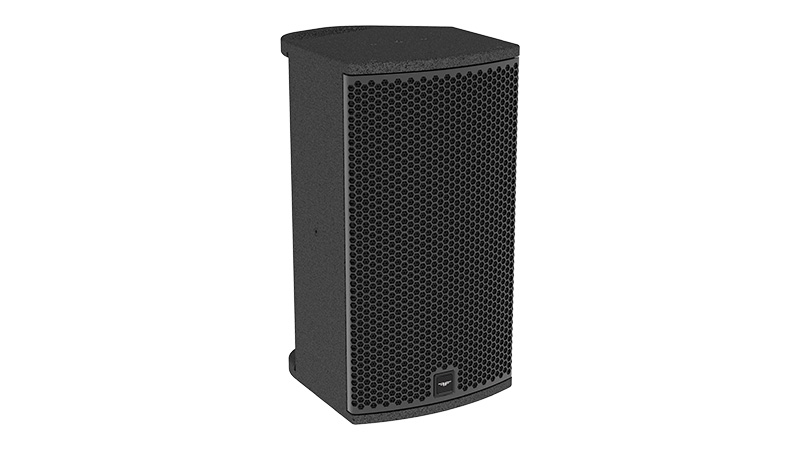

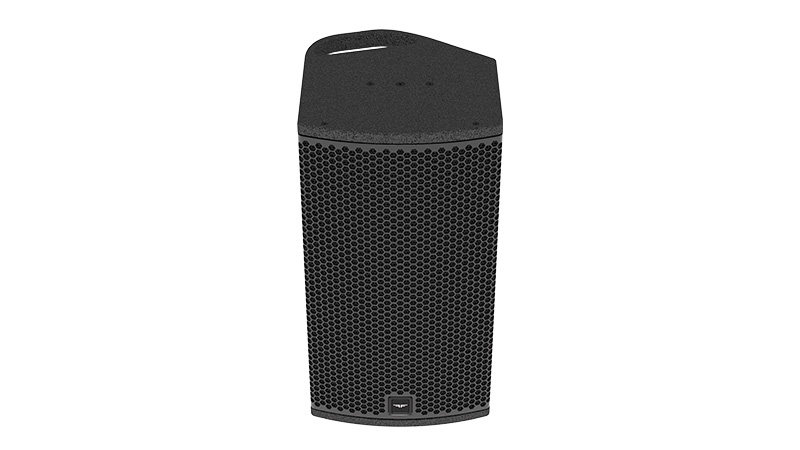

Isolde AP108x is a powerful, passive, compact point source loudspeaker with the versatility to excel in countless short throw live and installation scenarios. A premium 8” LF transducer incorporating Tetracoil technology ensures best-in-class SPL and massive headroom. The chosen neodymium magnet 1.4” exit throat / 2.4” voice coil HF transducer is from the exceptional family of drivers employed in our flagship touring series, sharing the same acclaimed intelligibility and audio signature across the range.
As a 2-way loudspeaker, Isolde outshines rival coax designs with superior control and directivity. This precision is augmented by a custom engineered, 3D printed horn concept, enforcing rigid control over the speaker’s coverage pattern.

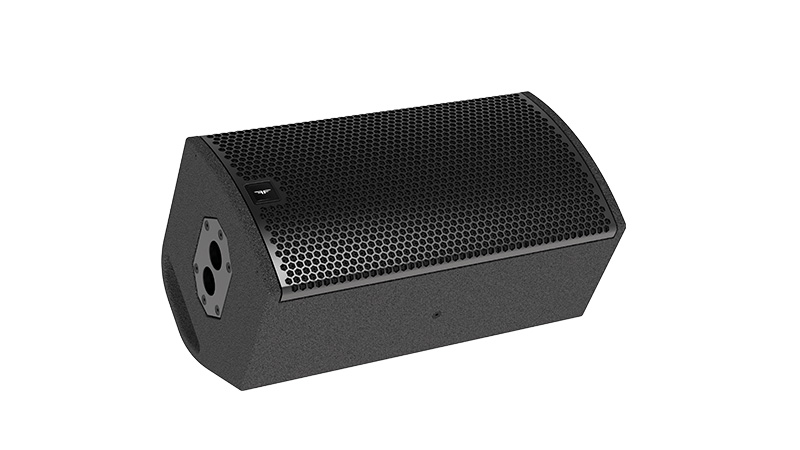

The ability to quickly rotate the horn through 90°, coupled with its unique cabinet shape, allows AP108x to do double duty as a compact wedge monitor. A range of wall, ceiling and pole mounting options underlines Isolde AP108x’s readiness to perform wherever high SPL is needed in a small package.
Isolde AP108x is made in Belgium using birch plywood for peerless rigidity and audio transparency.
Features
- Versatile point source /compact monitor
- Tetracoil voice coil for high SPL / headroom
- Rotatable custom precision horn
- Ceiling / Wall / Pole mount options
- Rugged shaped birch plywood cabinet
Technical specifications (Preliminary information)
Description | 2 way passive point source loudspeaker |
Transducers | LF: 1 x 8’’ Tetracoil HF: 1.4” exit throat / 2.4” voice coil |
Frequency range (-6dB) | 55 Hz -20 kHz |
SPL peak (1) | 129dB |
Processing | Dedicated AUDIOFOCUS A-series SCiO and Powersoft Armonia presets |

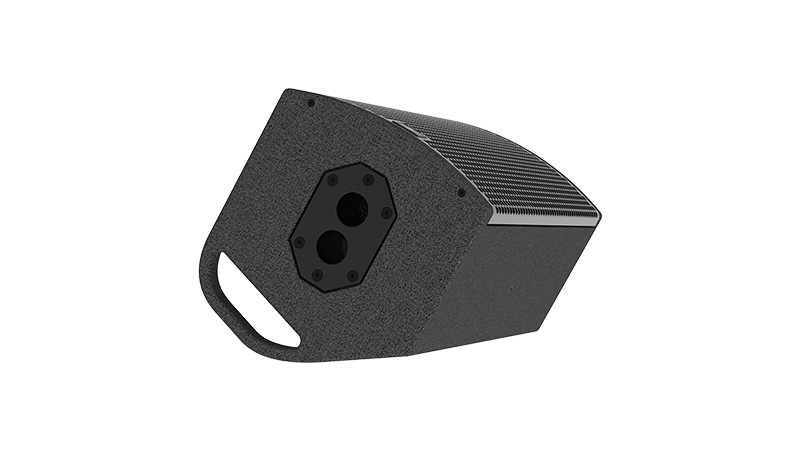

Rigging | Optional ceiling mount / vertical yoke / pole mount 0° and 5° tilt |

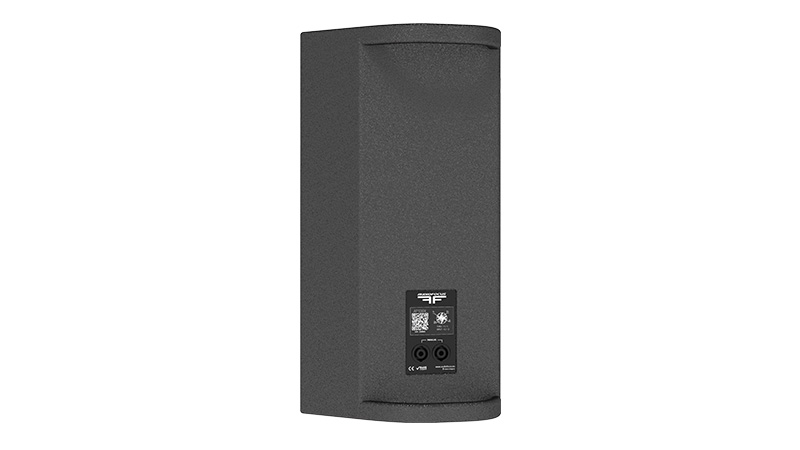

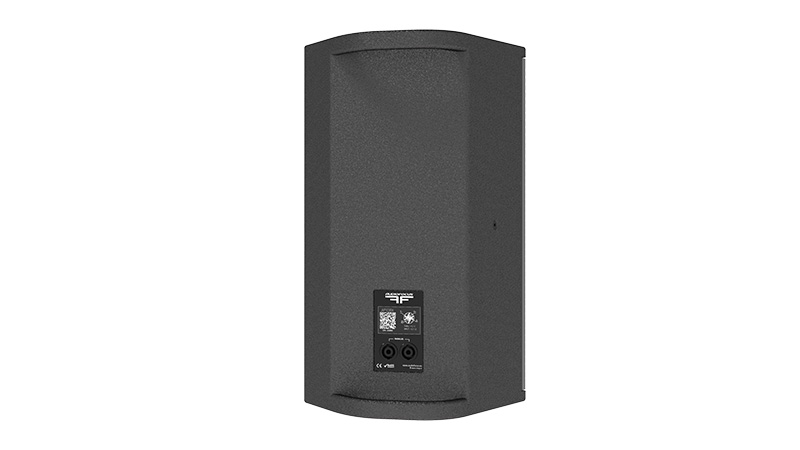

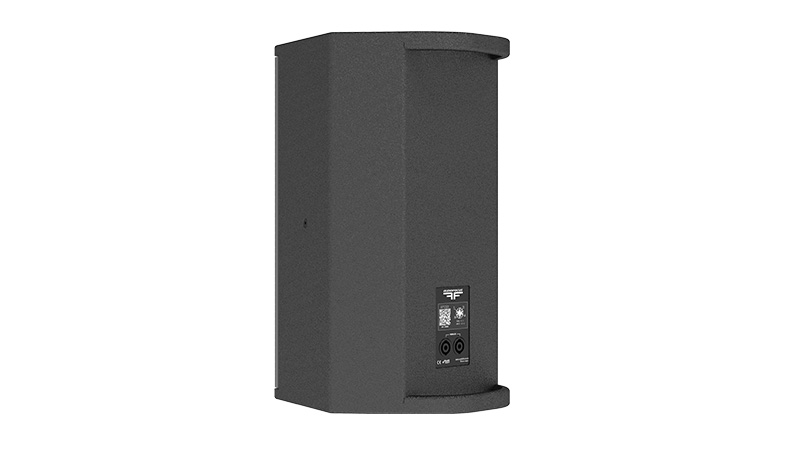

Connectors | 2 × 4-point speakON |
Nominal Impedance | 8ohms |
Watt AES/peak | 400W / 1600W |
Dimensions (H x W x D) | 260mm x 495mm x 250mm 10.2 x 19.5 x 9.8 inches |
Weight | 10.5kg / 23lbs |
Finish | Highly resistant polyurea coating |
Cabinet | High grade birch plywood |
(1) Mtone 12dB crest factor with compression of 2dB average
