| Transducers | LF: 2×10’’ HF: 1×1.5” exit compression driver / voice coil diameter 4” |
| SPL peak (1) | 135 dB |
| Weight | 34kg / 75lbs |
Description

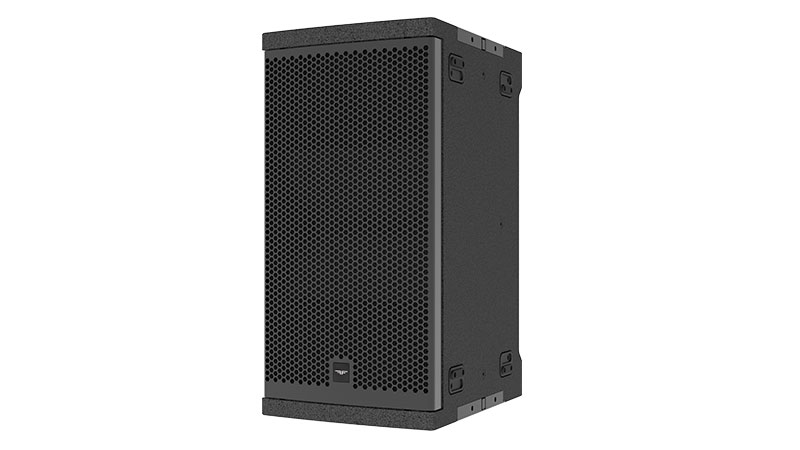

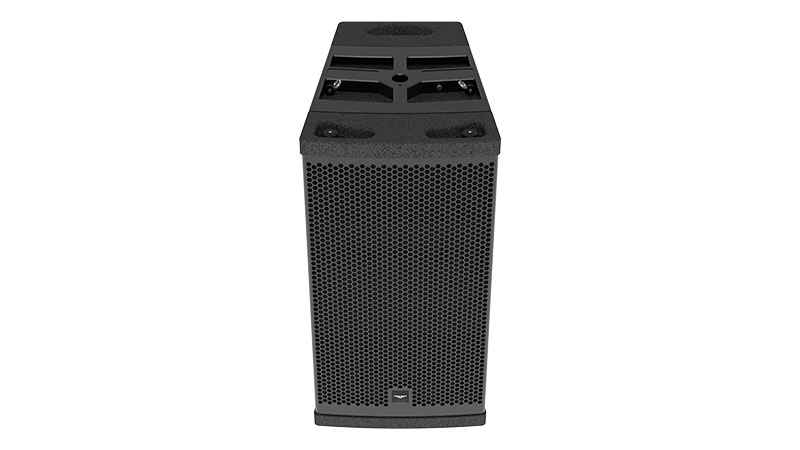

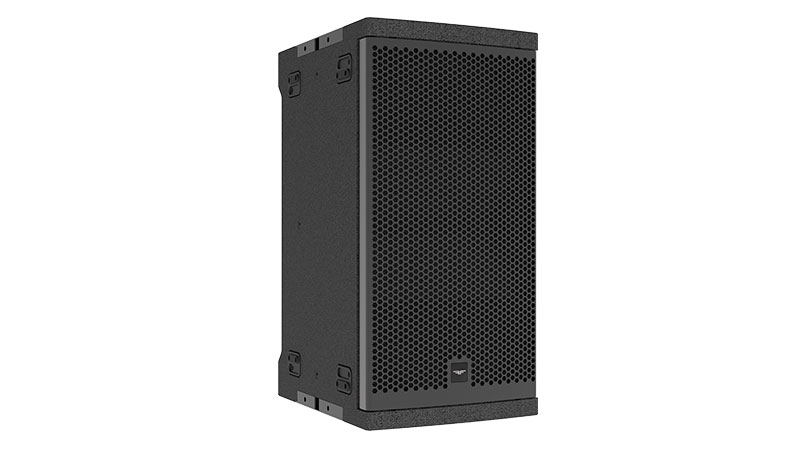

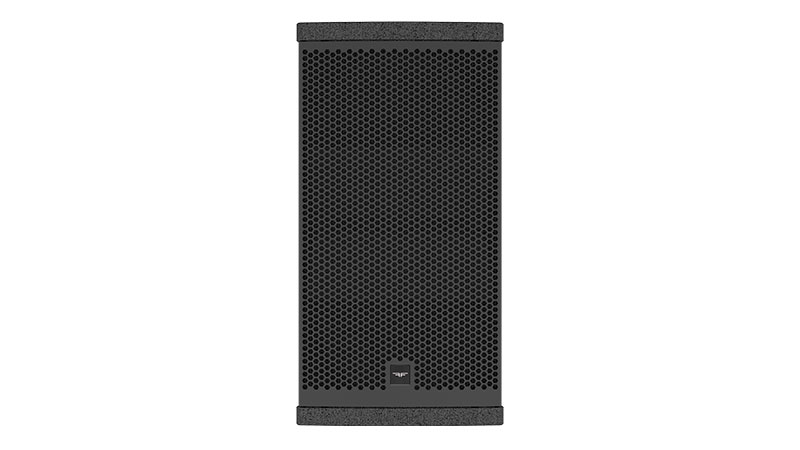

CC210Na is a core element of the ARROCC constant curvature system, mounting twin 10” LF transducers in a V formation and featuring Tetracoil Double Voice Coil technology for exceptional power, precision control, impulse response and handling of transients. A large next-gen titanium diaphragm 4” HF compression driver delivers superior linearity and mid-band clarity.

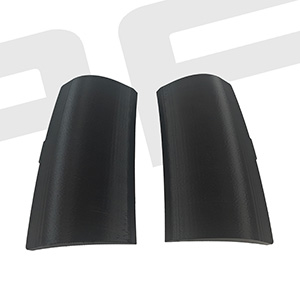

Thanks to a forthcoming adjustable horn plug option, CC210Na’s 90°V x 12.5°W coverage can be adjusted to 70°V x 12.5°W when desired. ARROCC employs the 3D printed SEVERIN precision waveguide for ultra-precise definition of coverage patterns, achieving the optimal listening experience for all audience members.

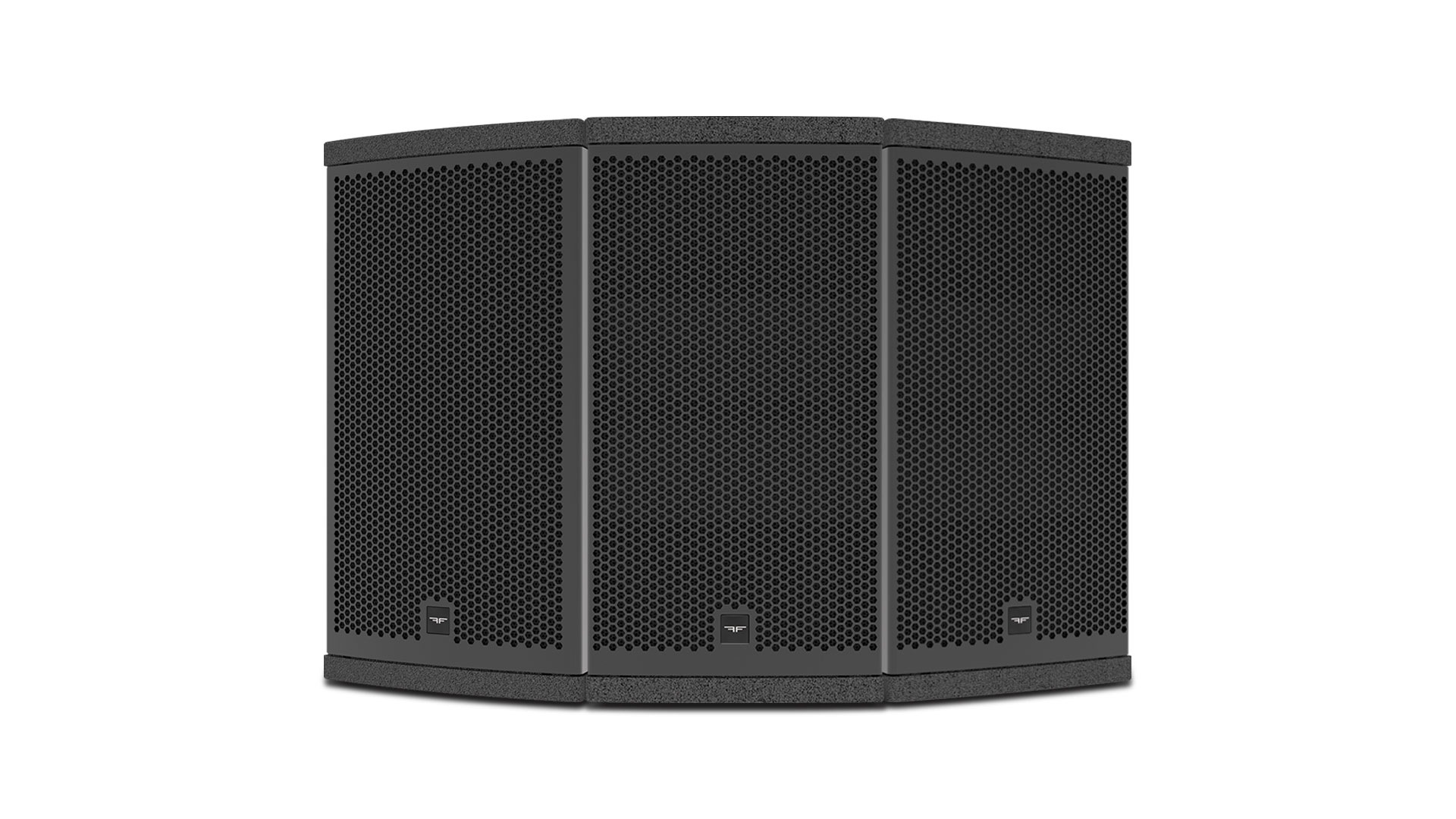

CC210Na (narrow) can be freely combined with CC210Wa (wide) cabinets and 118Sa subs, forming a flexible, modular solution for every medium throw sound reinforcement scenario. Versatile rigging options allow ARROCC systems to be flown or stacked horizontally and vertically, pole mounted, or fixed to walls or ceilings.
Intuitive SCiO software enables remote control of CC210Na’s integral amplifier from any device.
ARROCC CC210Na is built in Belgium by skilled craftspeople and state-of-the-art machinery.
Features
- V-mounted twin 10” LF transducers
- Tetracoil double voice coils for power and precision
- Large 4” titanium diaphragm HF compression driver
- Mix with CC210Wa to achieve desired coverage
- Scalable, plug ‘n play system building
- Rigging / mounting options for every scenario
Technical specifications (Preliminary information)
| Description | Narrow coverage 2×10” self-powered constant curvature loudspeaker |
| Transducers | LF: 2×10’’ HF: 1×1.5” exit compression driver / voice coil diameter 4” |
| Frequency range (-6dB) | 55Hz – 19kHz |
| Nominal directivity (-6dB) | 90°x 12.5° • External plate option for 70° coverage |
| SPL peak (1) | 135 dB |
| Processing | Dedicated AUDIOFOCUS SCiO presets |

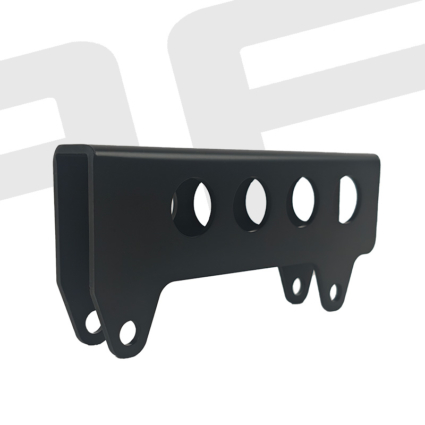

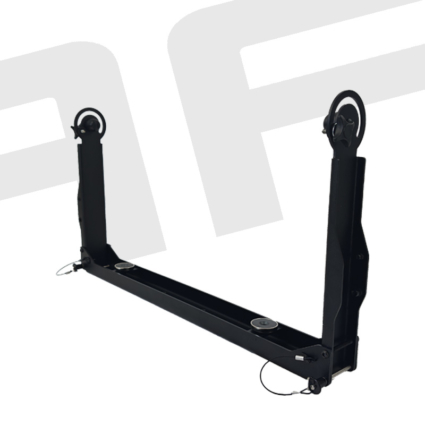

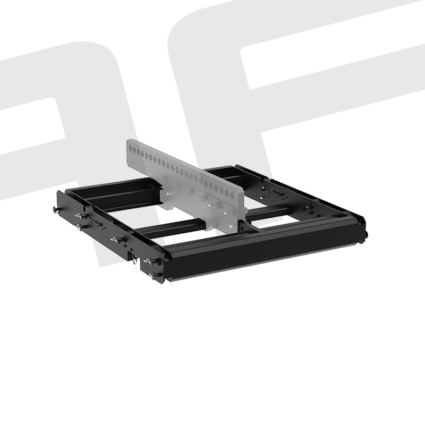

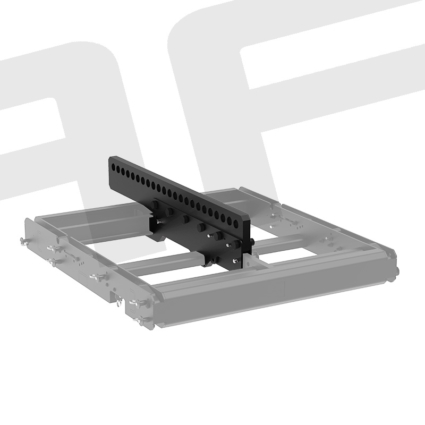

| Rigging | Horizontal and vertical rigging frames, hanging bracket, and pole mount |
| Audio connectors | IN: 1×3-point XLR LINK: 1×3-point XLR |
| Network Connectors | 1x etherCON for control |
| Power Connectors | IN: 1×3-point powerCON TRUE1TOP LINK: 1×3-point powerCON TRUE1TOP |
| Dimensions (H x W x D) | 626 x 323 x 440mm 25 x 12,7 x 17 inches |
| Weight | 34kg / 75lbs |
| Finish | Highly resistant polyurea coating |
| Cabinet | High grade birch plywood |
(1) Mtone 12 dB crest factor
Technical sheetARRoCC CC210Na
PDF • 370 Ko • 19/01/2023
Gll files for Ease – Array
gll • 6Mb • 26/09/2024
Gll files for Ease – Cluster
gll • 6Mb • 25/09/20243
SCiO
Connect & Control your amplifiers
AUDIOFOCUS SCiO amplifiers can be securely monitored and controlled anytime, anywhere over the network.
Our intuitive Web UI network manager is web-based, eliminating the need for software downloads, and allows multiple amplifiers to be managed from your preferred device.
The network manager offers the comprehensive processing options you would expect from a high-end system controller.
For more detailed information please visit the AUDIOFOCUS SCiO page.
SCiO WEB CONNECTION QUICK START GUIDE
Note – this Quick Start Guide is for use with products manufactured from July 2022
