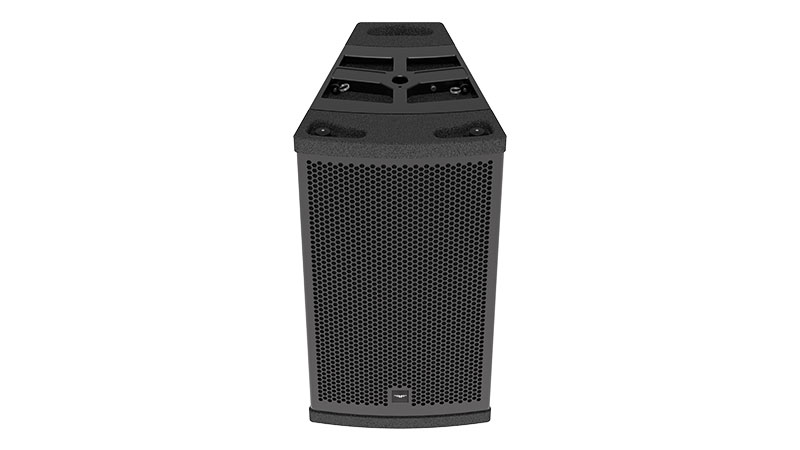

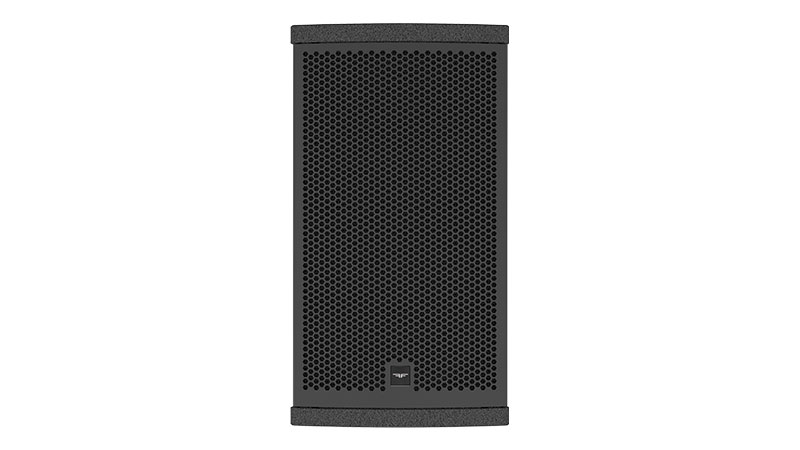

CC210Wx

2×10” passive constant curvature loudspeaker


TransducersLF: 2×10’’
HF: 1×1.5” exit compression driver / voice coil diameter 4”
SPL peak (1)135 dB
Weight30kg / 66lbs
Share this product

Description

CC210Wx is a core element of the ARROCC constant curvature system, mounting twin 10” LF transducers in a V formation and featuring Tetracoil Double Voice Coil technology for exceptional power, precision control, impulse response and handling of transients. A large next-gen titanium diaphragm 4” HF compression driver delivers superior linearity and mid-band clarity.

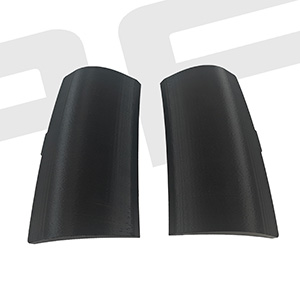

Thanks to an easy-fit insert, CC210Wx’s wide 90° x 25° coverage can be adjusted to 70° x 25° when desired. ARROCC employs the 3D printed SEVERIN precision waveguide for ultra-precise definition of coverage patterns, achieving the optimal listening experience for all audience members.

CC210Wx (wide) can be freely combined with CC210Nx (narrow) cabinets, 118S subs and A series amplifiers, forming a flexible, modular solution for every small-medium sound reinforcement scenario. Versatile rigging options allow ARROCC systems to be flown or stacked horizontally and vertically, pole mounted, or fixed to walls or ceilings.

ARROCC CC210Wx is built in Belgium by skilled craftspeople and state-of-the-art machinery.

Features

  • V-mounted twin 10” LF transducers
  • Tetracoil double voice coils for power and precision
  • Large 4” titanium diaphragm HF driver
  • Mix with CC210Nx to achieve desired coverage
  • Scalable, plug ‘n play system building
  • Rigging / mounting options for every scenario

Technical specifications (Preliminary information)

DescriptionWide coverage 2×10” passive constant curvature loudspeaker
TransducersLF: 2×10’’
HF: 1×1.5” exit compression driver / voice coil diameter 4”
Frequency range (-6dB)55Hz – 19kHz
Nominal directivity (-6dB)90°x25° • External plate option for 70° coverage
SPL peak (1)135 dB
ProcessingDedicated AUDIOFOCUS A-series SCiO presets and Powersoft Armonia presets
RiggingHorizontal and vertical rigging frames, hanging bracket, and pole mount
Connectors2 × 4-point speakON
Dimensions (H x W x D)626 x 343 x 400mm
25 x 13,5 x 15,7 inches
Weight30kg / 66lbs
FinishHighly resistant polyurea coating
CabinetHigh grade birch plywood

(1) Mtone 12 dB crest factor

Technical sheet
CC210Wx

PDF • 370 Ko • 12/01/2024

A Series Output Chart
CC210Wx

PDF • 370 Kb • 19/04/2024

SCiO Presets
ARRoCC CC210Wx

Zip • 1 Mb • 19/06/2024

Powersoft Armonia Presets
ARRoCC CC210Wx

Zip • 7 Kb • 08/11/2024

Gll files for Ease – Array

gll • 6Mb • 25/09/2024

Gll files for Ease – Cluster

gll • 6Mb • 25/09/2024
