FRX 15i

2-way bi-amplified full-range installation constant curvature element


TransducersLF: 1×15’’ / HF : 1×1.4’’
Frequency Range (-6dB)55Hz – 20kHz
SPL max / 1m (measured)137.8 dB
Weight33,5kg / 73.85lbs
Share this product

Description

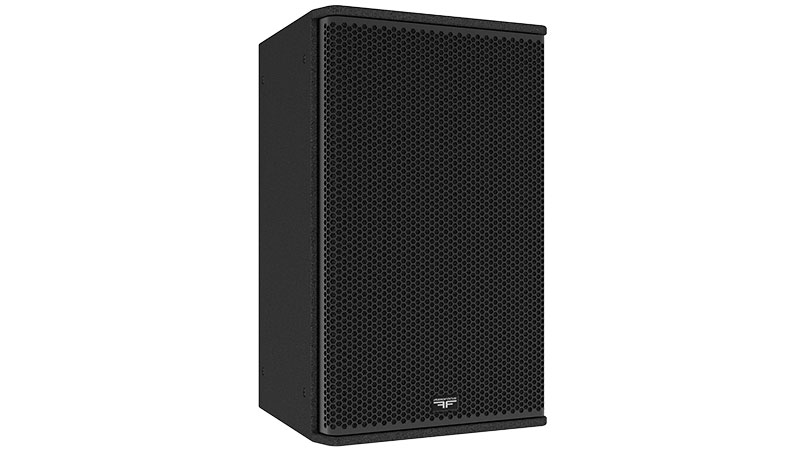

FRX 15i is a compact, powerful bi-amplified 2-way constant curvature loudspeaker, optimized for medium throw, high SPL installation applications. FRX 15i is a uniquely versatile building block for systems ranging from single top pole mounts to left/right, central cluster or in the round setups. Typically used in horizontal ground stack configurations, FRX 15i can also be flown, allowing it to adapt to the needs of the venue. The adjustable 80×30° AF horn can be configured quickly without the need for tools.

Our proprietary X-Comb DSP technology eliminates comb effects, ensuring perfect coupling between FRX 15i cabinets and creating a coherent wavefront at any location. The enclosure houses a 1.4’’ diaphragm compression driver loaded with a 15’’ neodymium low-frequency transducer and offers two distinct directivity plans.

FRX 15i can be quickly deployed in any configuration when used with AUDIOFOCUS A Series amplifiers with integral DSP and dedicated presets. Armonia presets are also available for Powersoft amplifiers.

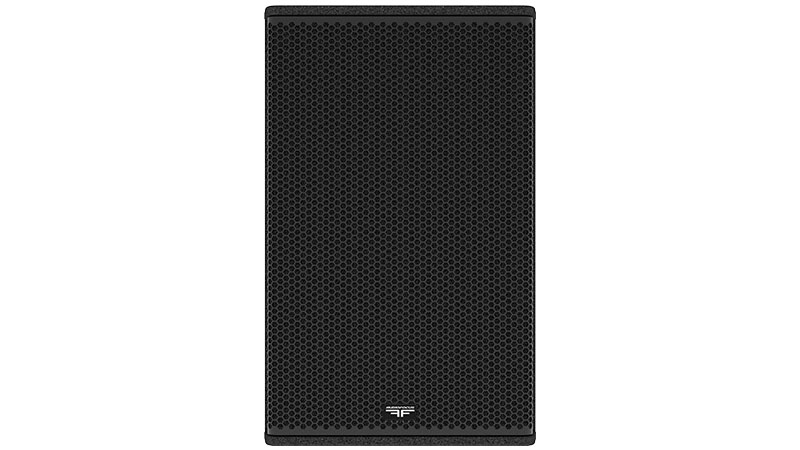

FRX 15i is built with pride in Belgium and coated in tough, weather-resistant polyurea to safeguard your investment. The cabinet front is protected by a rigid metal grill, backed by acoustically transparent foam.

Features

  • Multi-function FoH system
  • Optimised for medium throw applications
  • For 100-3,000 capacity installations
  • Bi-amplified
  • Adaptive (rotating) AF horn 80×30°
  • X-Comb technology inside

Technical specifications

Description2-way bi-amplified full-range installation constant curvature element
Transducers LF: 1×15’’
HF: 1 × 1.4’’ exit compression driver / voice coil diameter 1.75”
Frequency range (-6dB)55Hz-20kHz
Nominal directivity (-6dB)80°x30°
Rotatable horn, no tools needed
SPL max (1)137.8 dB
ProcessingDedicated AUDIOFOCUS and Powersoft Armonia presets
RiggingM8 threaded inserts
Optional bracket and rigging hardware available

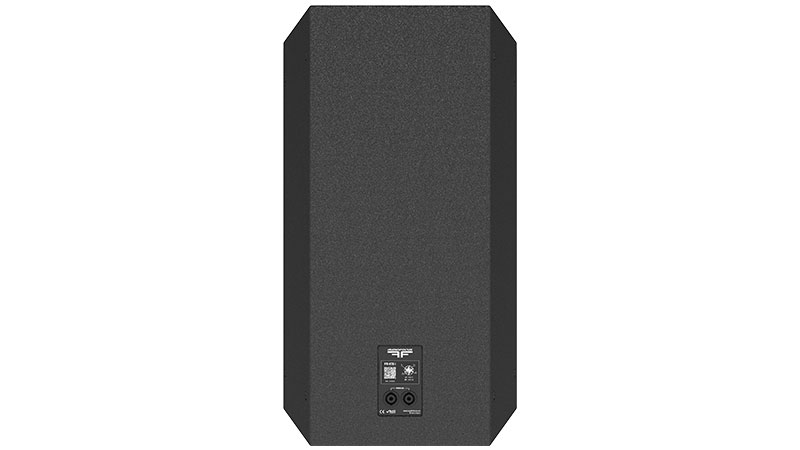

Connectors2x SPK4 speakON
Nominal ImpedanceLF: 8ohm
HF: 8ohm
Watt AES/peakLF: 600/2400W
HF: 80/320W
Dimensions (H x W x D)680 x 429 x 437 mm
26.77 x 16.88 x 17.20 inches
Weight33,5kg / 73.85lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5

Gll files for Ease
and Easefocus

Gll • 6.71 Mo • 06/01/2022

Powersoft Presets
FRX 15i

Zip • 15 Ko • 20/12/2022

SCiO Presets
FRX 15i

Zip • 49 Ko • 09/01/2023
