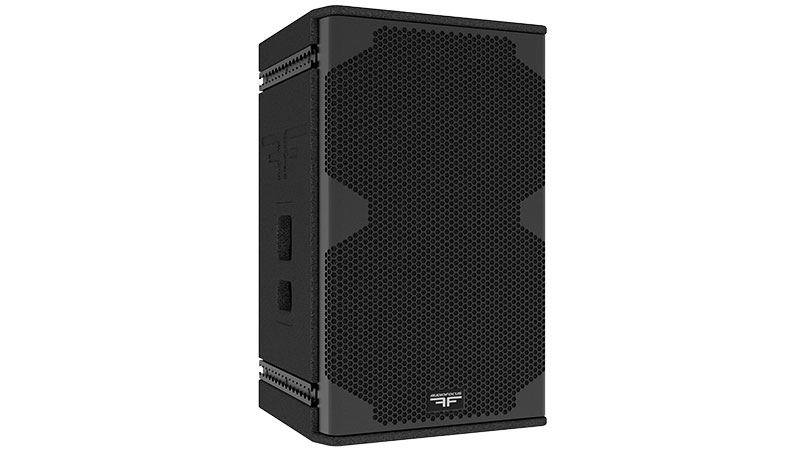

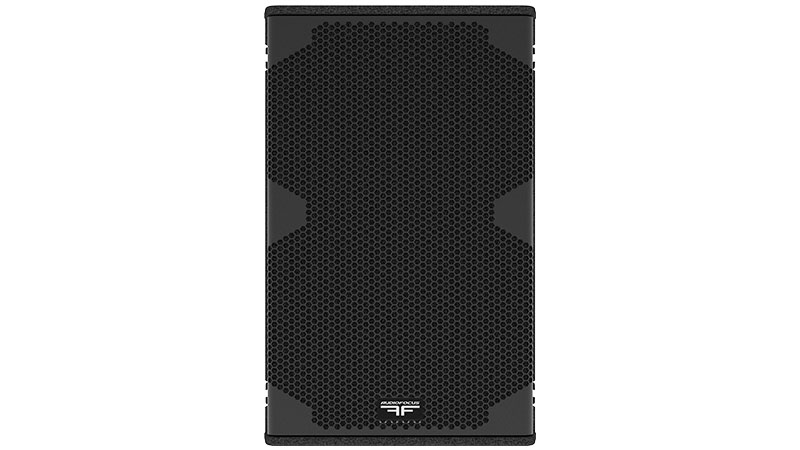

FRX 15a

Touring high performance 2-way self-powered constant curvature element

TransducersLF: 1×15’’ / HF : 1×1.4’’
Frequency Range (-6dB)55Hz – 20kHz
SPL max / 1m (measured)138 dB
Weight35kg / 77.16lbs
Share this product


FRX 15a is a compact, powerful self-powered 2-way constant curvature loudspeaker, optimized for medium throw, high SPL live applications. FRX 15a is a uniquely versatile building block for systems ranging from single top pole mounts to left/right, central cluster, or in the round setups. Typically used in horizontal ground stack configurations, FRX 15a can also be flown and its adjustable 80×30° AF horn can be reconfigured quickly without the need for tools.

Our proprietary X-Comb DSP technology eliminates comb effects, ensuring perfect coupling between FRX 15a cabinets and creating a coherent wavefront at any location. The enclosure houses a 1.4’’ diaphragm compression driver loaded with a 15’’ neodymium low-frequency transducer and offers two distinct directivity plans.

An advanced AUDIOFOCUS SCiO Class D amplifier module with integral DSP and dedicated presets allows FRX 15a to be quickly deployed in any configuration.

FRX 15a is built with pride in Belgium and coated in tough, weather-resistant polyurea to safeguard your investment. The cabinet front is protected by a rigid metal grill, backed by acoustically transparent foam.


  • Multi-function FoH system
  • Optimised for medium throw applications
  • For audiences of 100-3,000 people
  • Self-powered plug ‘n play
  • Adaptive (rotating) AF horn 80×30°
  • X-Comb technology inside

Technical specifications

Description2-way active self-powered full-range constant curvature element
Transducers LF: 1×15’’
HF: 1×4” exit compression driver / voice coil diameter 1.75”
Frequency range (-6dB)55Hz-20kHz
Nominal directivity (-6dB)80°x30°
Rotatable horn, no tools needed
SPL max (1)138 dB
ProcessingDedicated AUDIOFOCUS SCiO presets
RiggingPole mounted and Aeroquip fly tracks with dedicated rigging
Audio ConnectorsIN: 1×3-point XLR
LINK: 1×3-point XLR
Network Connectors1 x etherCON for control
Power ConnectorsIN: 1×3-point powerCON TRUE1TOP
LINK: 1×3-point powerCON TRUE1TOP
Dimensions (H x W x D)680 x 429 x 437 mm
26.77 x 16.88 x 17.20 inches
Weight35kg / 77.16lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5

Gll files for Ease and Easefocus
FRX 15a

Gll • 6.71 Mo • 06/01/2022

Quick Start guide
SCio Web Connection

PDF • 250 Ko • 13/06/2023

User Manual

PDF • 6.50 Mo • 11/07/2023

Firmware update SCiO
+ Procedure guide

ZIP • 5.9 Mo • 09/04/2024
PDF • 143 Ko • 09/04/2024


Connect & Control your amplifiers

AUDIOFOCUS SCiO amplifiers can be securely monitored and controlled anytime, anywhere over the network.

Our intuitive Web UI network manager is web-based, eliminating the need for software downloads, and allows multiple amplifiers to be managed from your preferred device.

The network manager offers the comprehensive processing options you would expect from a high-end system controller.
For more detailed information please visit the AUDIOFOCUS SCiO page.


Note – this Quick Start Guide is for use with products manufactured from July 2022
