| Transducers | LF : 1 x 21″ |
| SPL peak / 1m (measured) | 139 dB |
| Weight | 60kg / 132.27lbs |
| Rigging | Pole mount |
Description

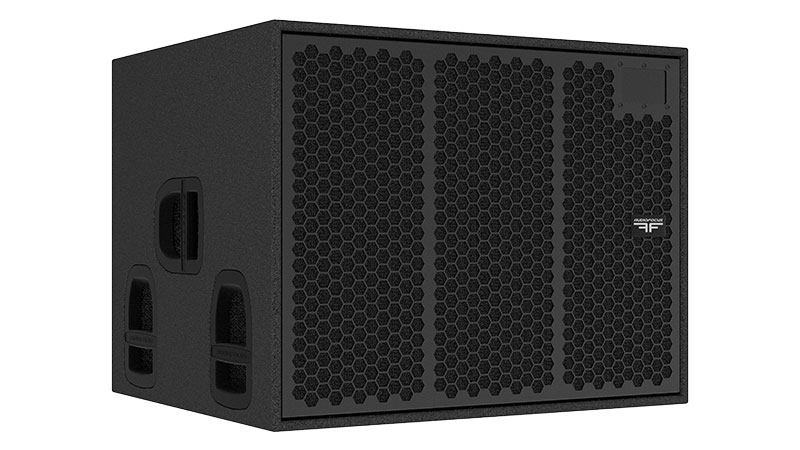

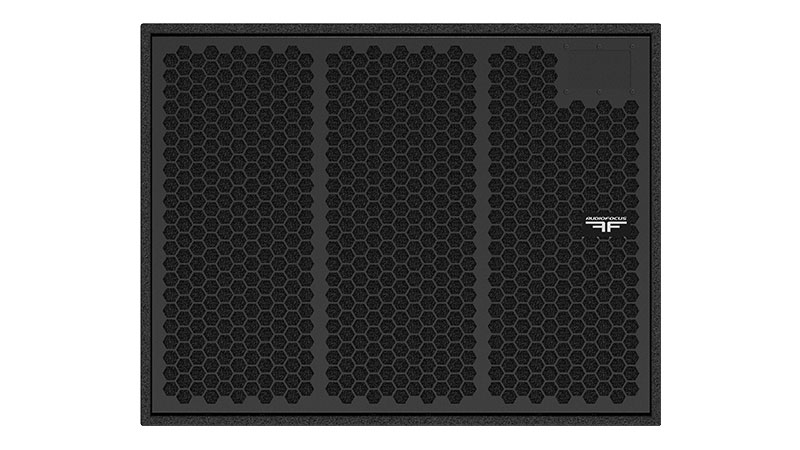

S 21a is a compact, high-performance self-powered touring subwoofer, designed to complement our FR-X, ARES 8 and ARES 12 series in sound reinforcement applications scaling to full stadium shows.
S 21a houses a long excursion 21″ neodymium driver and combines front diffusion, bass reflex, and transmission line design for maximum efficiency and outstanding SPL.
Rental companies favor S 21a as an alternative to industry-standard 2×18” subs, saving half the truck space and around 40% of the weight. The subwoofer can be deployed standalone, stacked or flown, making it a versatile, high-earning hire stock staple.
An advanced AUDIOFOCUS SCiO Class D amplifier module with integral DSP and versatile presets allows S 21a to be quickly deployed in any configuration, including cardioid and end-fire.
S 21a is built with pride in Belgium and coated in tough, weather-resistant polyurea to safeguard your investment. The cabinet front is protected by a rigid metal grill, backed by acoustically transparent foam.
Features
- Powerful bass-reflex T-line design
- Lightweight and portable
- Pole mount socket
- Self-powered plug ‘n play
- Dedicated presets
Technical specifications
| Description | High-power self-powered subwoofer |
| Transducers | LF: 1 x 21″ |
| Frequency range (-6dB) | 28Hz-100Hz |
| SPL peak (1) | 139 dB |
| Processing | Dedicated AUDIOFOCUS SCiO omni and cardioid presets |
| Rigging | Pole socket |
| Audio Connectors | IN: 1×3-point XLR LINK: 1×3-point XLR |
| Network connectors | 1 x etherCON for control |
| Power Connectors | IN: 1×3-point powerCON TRUE1 TOP LINK: 1×3-point powerCON TRUE1 TOP |
| Dimensions (H x W x D) | 590 x 750 x 655 mm 23.22 x 29.52 x 25.78 inches |
| Weight | 60kg / 132.27lbs |
| Finish | Highly resistant polyurea coating
|
| Cabinet | High grade birch plywood |
(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5
- Display 9 Products per page
Gll files for Ease and Easefocus
Gll fileS 21
Gll • 1.65 Mo • 06/01/2022
Gll fileS 21 Stack
Gll • 1.78 Mo • 06/01/2022
Quick Start guideSCio Web Connection
PDF • 250 Ko • 13/06/2022
A4M SCiOUser Manual
PDF • 6.50 Mo • 10/07/2023
Technical sheetS 21a
PDF • 732 Ko • 09/04/2024
SCiO
Connect & Control your amplifiers
AUDIOFOCUS SCiO amplifiers can be securely monitored and controlled anytime, anywhere over the network.
Our intuitive Web UI network manager is web-based, eliminating the need for software downloads, and allows multiple amplifiers to be managed from your preferred device.
The network manager offers the comprehensive processing options you would expect from a high-end system controller.
For more detailed information please visit the AUDIOFOCUS SCiO page.
SCiO WEB CONNECTION QUICK START GUIDE
Note – this Quick Start Guide is for use with products manufactured from July 2022
