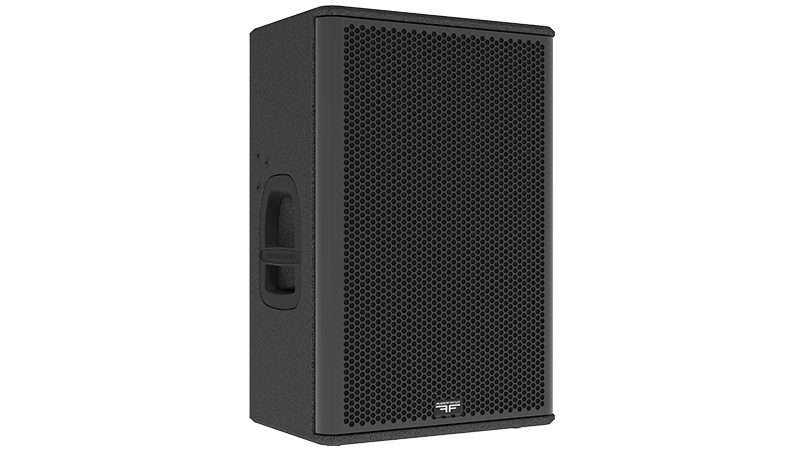

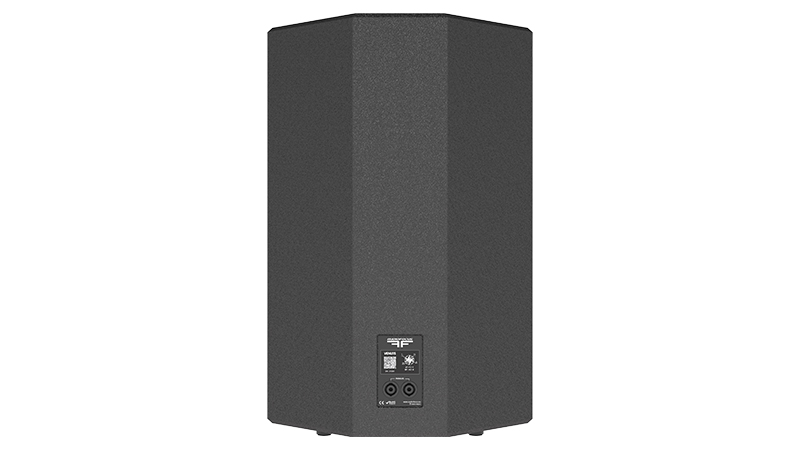

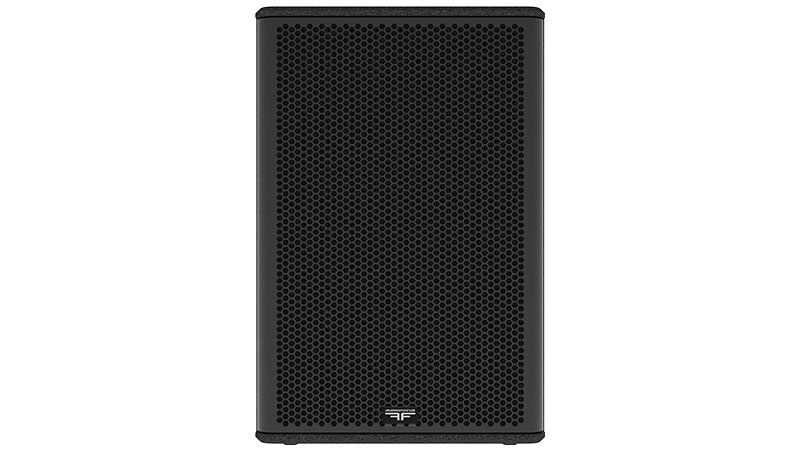

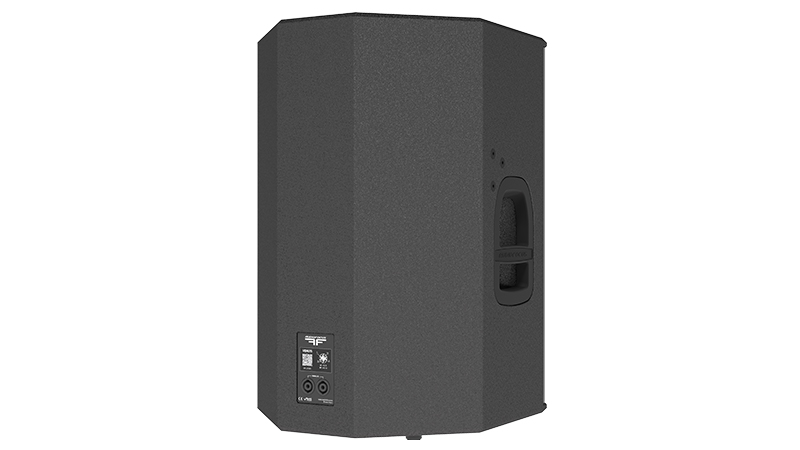

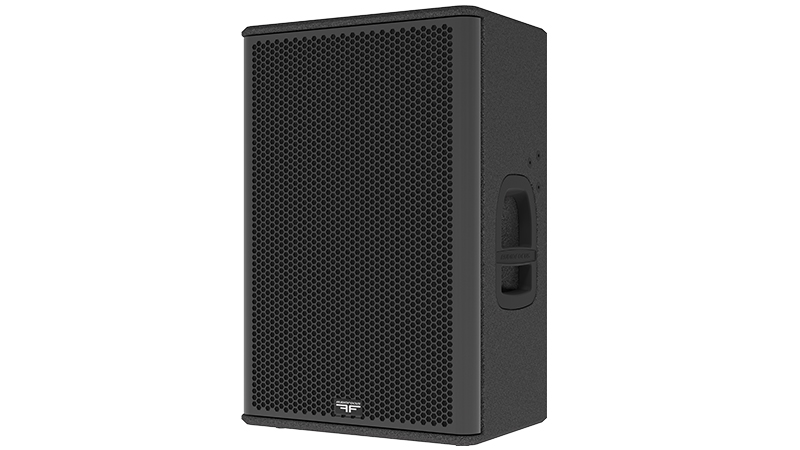

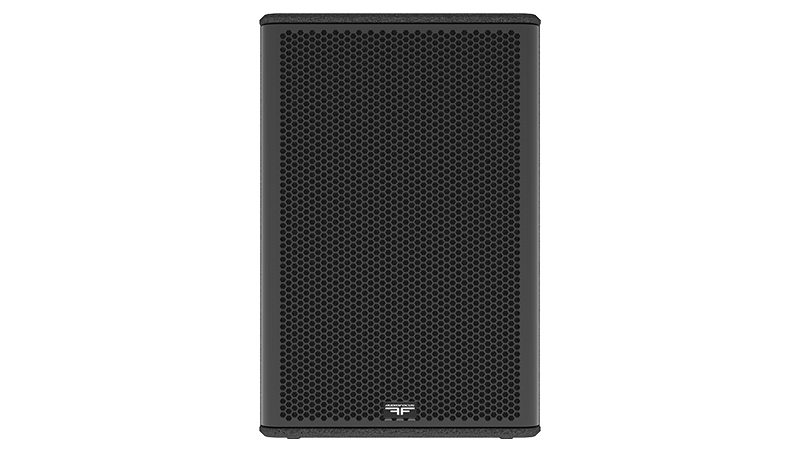

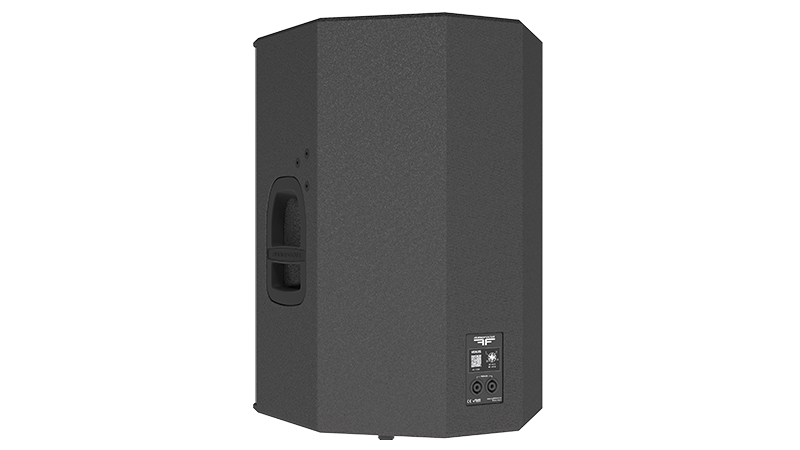

VENU 15

Compact touring 2-way 15″ bi-amp point source loudspeaker


TransducersLF: 1×15’’ / HF : 1×1’’
Frequency Range (-6dB)47Hz – 20kHz
SPL peak / 1m (measured)136 dB
Weight21.4kg / 47.17lbs
Share this product

Description

VENU 15 is a bi-amped 2-way top unit, offering big performance in a compact package. VENU 15 excels as a single top, as a full-range PA system when teamed up with a subwoofer, and can also serve as a monitor solution, delivering excellent return on your investment.

VENU 15 can be quickly deployed in any configuration when used with AUDIOFOCUS A-704 SCiO, A-1504 SCiO, or A-3004 SCiO amplifiers with integral DSP and dedicated presets. Armonia presets are also available for Powersoft amplifiers.

VENU 15 is built in Belgium to the same exacting standards as our pro touring ranges and coated in tough, weather-resistant polyurea to protect your investment.

Features

  • Compact 2-way FoH system
  • Suitable for mobile and portable use
  • Rugged top and side carry handles
  • Mirror monitor configuration
  • Tiltable pole mounts
  • Bi-amplified

Technical specifications

Description2-way bi-amplified full-range point source
Transducers LF: 1×15’’
HF : 1×1’’
Frequency range (-6dB)47Hz-20kHz
Nominal directivity (-6dB)110°x60°
Rotatable horn
SPL peak (1)136 dB
ProcessingDedicated AUDIOFOCUS A-series SCiO and Powersoft Armonia presets
RiggingAdjustable pole mount and M8 threaded inserts
Optional bracket available
Connectors2 × 4-point speakON
Nominal ImpedanceLF: 8ohm
HF: 8ohm
Watt AES/peakLF: 400/1600W
HF: 35/140W
Dimensions (H x W x D)638 x 426 x 412 mm
25.11 x 16.77 x 16.22 inches
Weight21.4kg / 47.17lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5

Gll files for Ease and Easefocus

Gll • 4.21 Mo • 06/01/2022

A Series Output Chart
VENU 15

PDF • 163Kb • 19/04/2024

Powersoft Presets
VENU 15

Zip • 17 Kb • 22/05/2024

SCiO Presets
VENU 15

Zip • 43 Ko • 09/01/2023

User Manual
VENU Series

PDF • 9.60 Mo • 13/07/2023
