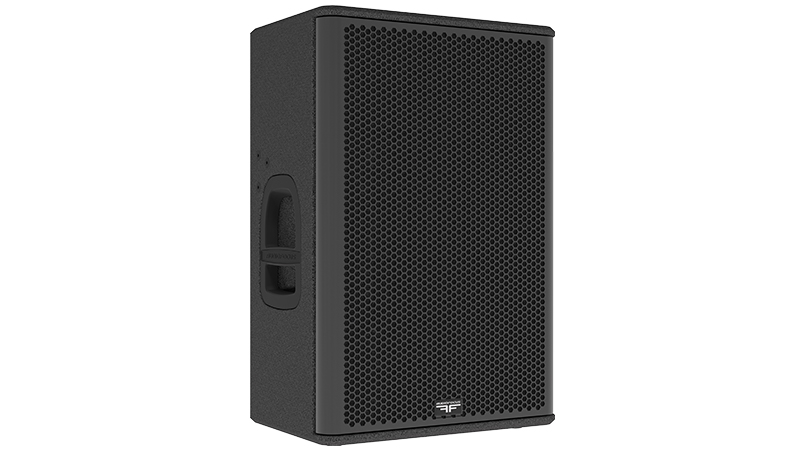

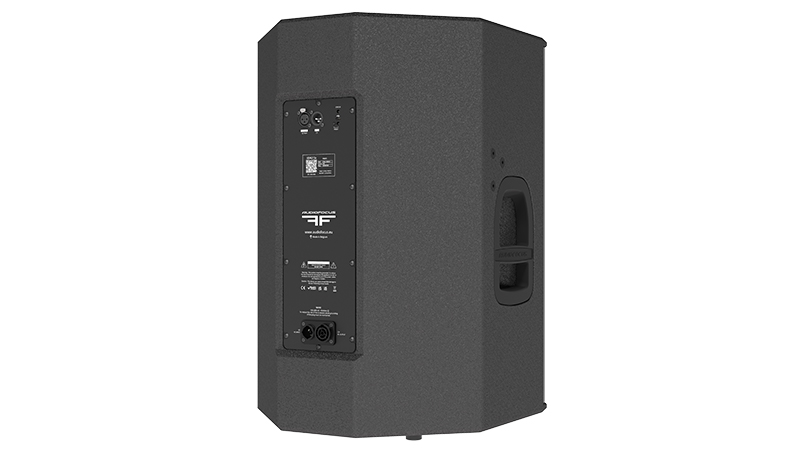

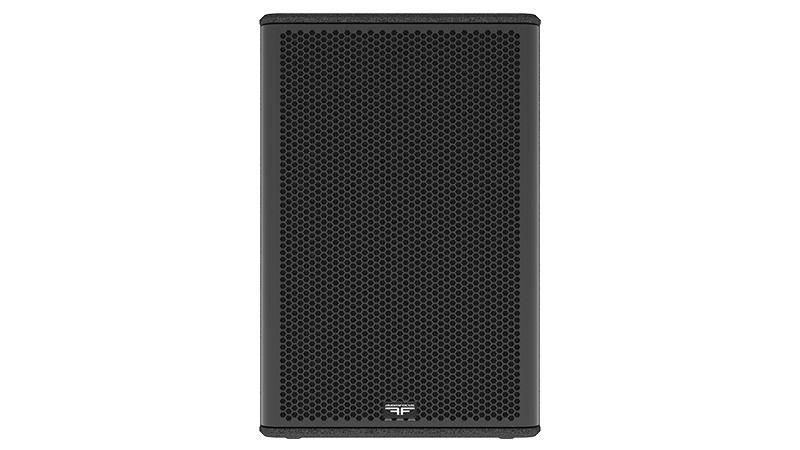

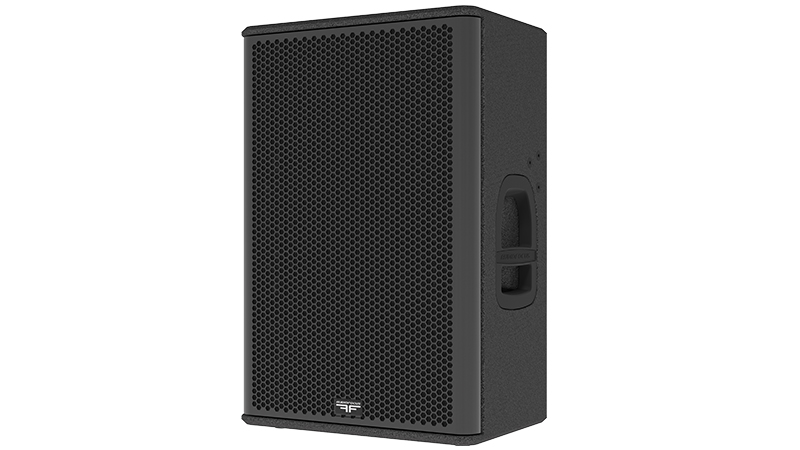

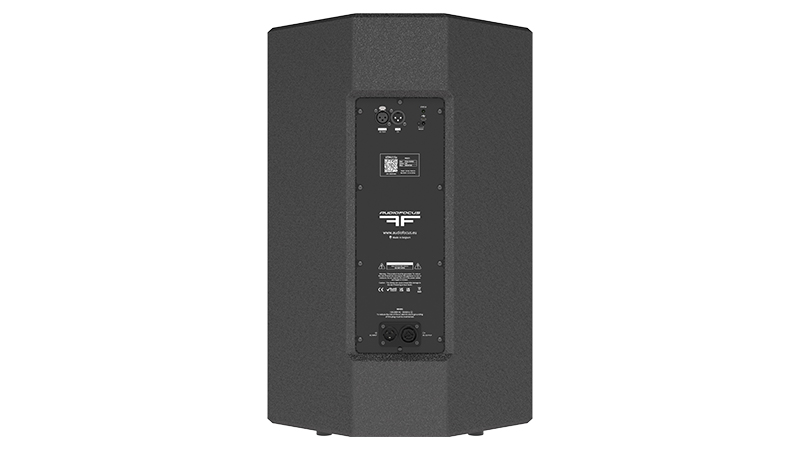

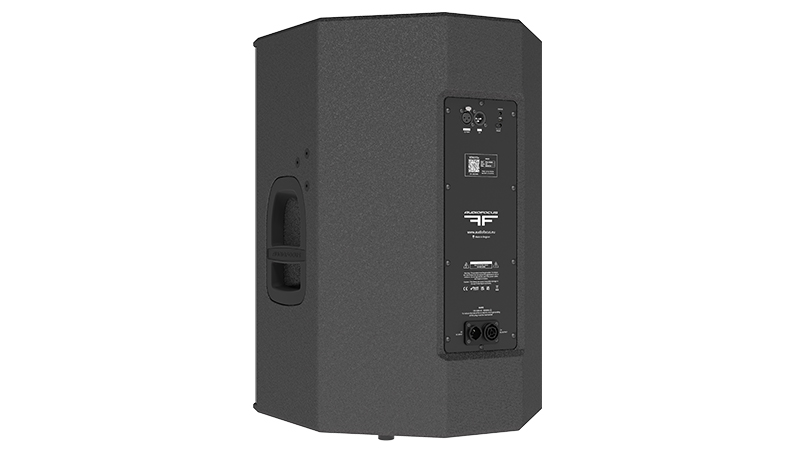

VENU 15a

Compact touring 2-way 15″ self-powered point source loudspeaker


TransducersLF: 1×15’’ / HF : 1×1’’
Frequency Range (-6dB)47Hz – 20kHz
SPL peak / 1m (measured)136 dB
Weight22,5kg / 49.60lbs
Share this product

Description

VENU 15a is a self-powered 2-way top unit with a maximum SPL of 136 dB and a frequency range of 47Hz – 20kHZ, offering big performance in a compact package. VENU 15a excels as a single top, as a full-range PA, or even as a stage monitor, delivering excellent return on your investment.

Our R&D team commissioned bespoke Italian transducers, helping the VENU series to earn its reputation for best-in-class sensitivity and transparency for compact loudspeakers.

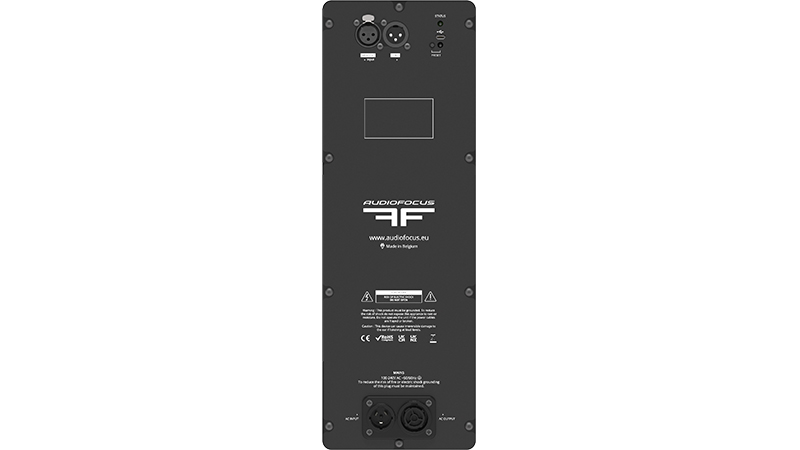

An advanced AUDIOFOCUS Class D amplifier module with integral DSP and 4 versatile presets allows VENU 15a to be quickly deployed in any configuration.

VENU 15a is built in Belgium to the same exacting standards as our pro touring ranges and coated in tough, weather-resistant polyurea to protect your investment.

Features

  • Compact 2-way FoH system
  • Suitable for Mobile and Portable use
  • Rugged top and side carry handles
  • Mirror monitor configuration
  • Tiltable pole mounts
  • Plug ‘n Play
  • Bespoke Italian drivers

Technical specifications

Description2-way active self-powered full-range point source
Transducers LF: 1×15’’
HF : 1×1’’
Frequency range (-6dB)47Hz-20kHz
Nominal directivity (-6dB)110°x60°
Rotatable horn
SPL peak (1)136 dB
ProcessingDedicated AUDIOFOCUS presets
RiggingAdjustable pole mount and M8 threaded inserts
Optional bracket available
Audio ConnectorsIN: 1×3-point XLR
LINK: 1×3-point XLR
Power ConnectorsIN: 1×3-point powerCON
LINK: 1×3-point powerCON
Dimensions (H x W x D)638 x 426 x 412 mm
25.11 x 16.77 x 16.22 inches
Weight22,5kg / 49.60lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood 15 & 24 mm

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5
