VENU 15i

Compact installation 2-way 15″ bi-amp point source loudspeaker


TransducersLF: 1×15’’ / HF : 1×1’’
Frequency Range (-6dB)47Hz – 20kHz
SPL peak / 1m (measured)136 dB
Weight21,4kg / 47.17lbs
Share this product

Description

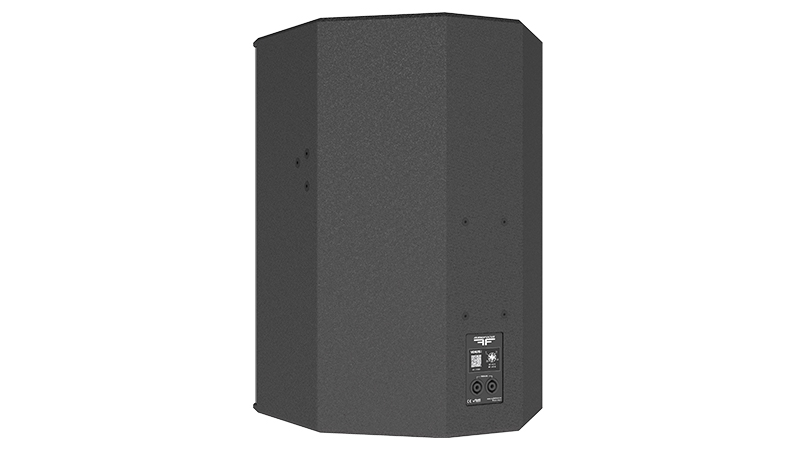

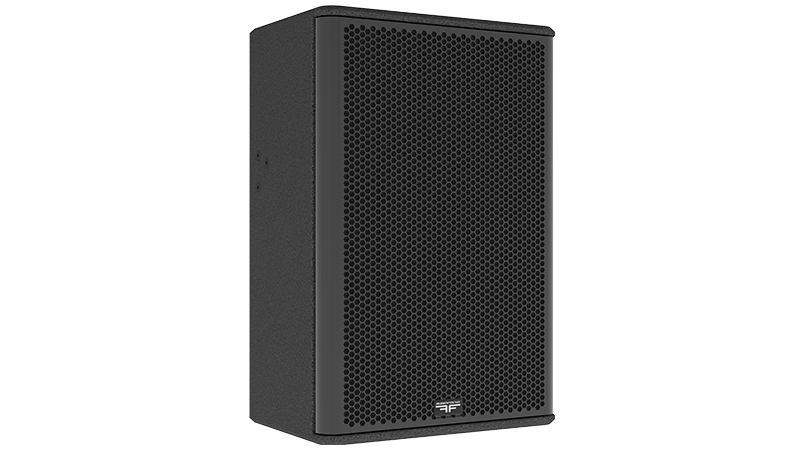

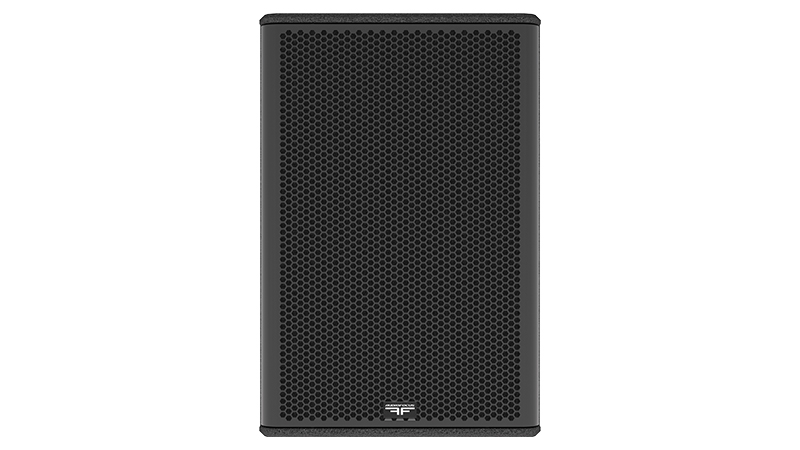

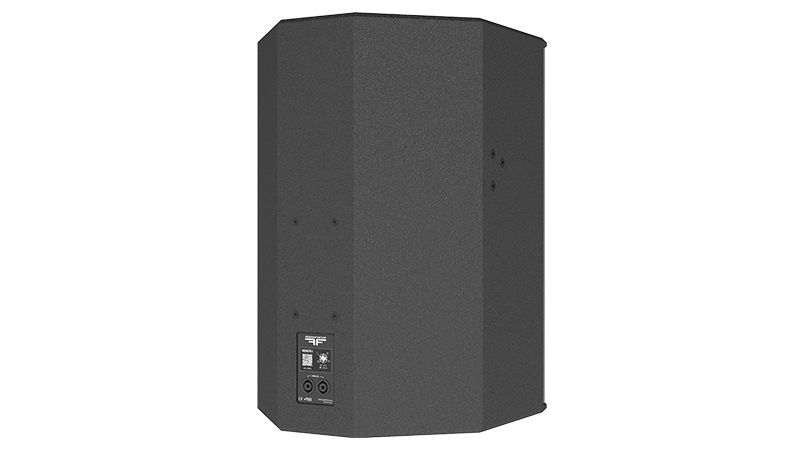

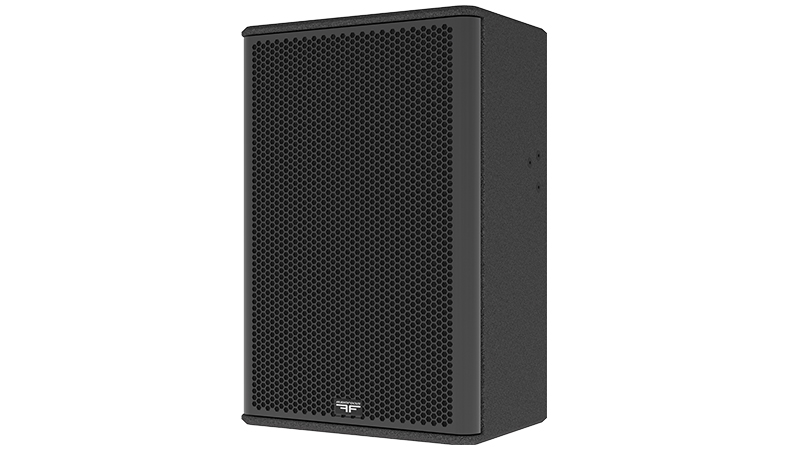

VENU 15i is a bi-amped 2-way top unit, delivering our signature audio quality in a compact format and optimized for installation applications. With its small footprint and high SPL, VENU 15i fits right in wherever sound and size matter – from bars and hotels to smaller music venues.

VENU 15i can be quickly deployed in any configuration when used with AUDIOFOCUS A-704 SCiO, A-1504 SCiO, or A-3004 SCiO amplifiers with integral DSP and dedicated presets. Armonia presets are also available for Powersoft amplifiers.

VENU 15i is built in Belgium to the same exacting standards as our pro touring ranges and coated in tough, weather-resistant polyurea to protect your investment.

Features

  • Compact 2-way FoH system
  • Optimized for permanent installation
  • Mirror monitor configuration
  • Threaded inserts
  • Bi-amplified

Technical specifications

DescriptionInstall 2-way bi-amplified full-range point source
Transducers LF: 1×15’’
HF : 1×1’’
Frequency range (-6dB)47Hz-20kHz
Nominal directivity (-6dB)110°x60°
Rotatable horn
SPL peak (1)136 dB
ProcessingDedicated AUDIOFOCUS A-series SCiO and Powersoft Armonia presets
RiggingRear plate K&M compatible
Connectors2 × 4-point speakON
Nominal ImpedanceLF: 8ohm
HF: 8ohm
Watt AES/peakLF: 400/1600W
HF: 35/140W
Dimensions (H x W x D)638 x 426 x 412 mm
25.11 x 16.77 x 16.22 inches
Weight21.4kg / 47.17lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5

Gll files for Ease
and Easefocus

Gll • 4.21 Mo • 06/01/2022

A Series Output Chart
VENU 15i

PDF • 2.83 Mo • 17/10/2022

Powersoft Presets
VENU 15i

Zip • 17 Ko • 20/12/2022

SCiO Presets
VENU 15i

Zip • 43 Ko • 09/01/2023

User Manual
VENU Series

PDF • 9.60 Mo • 13/07/2023
