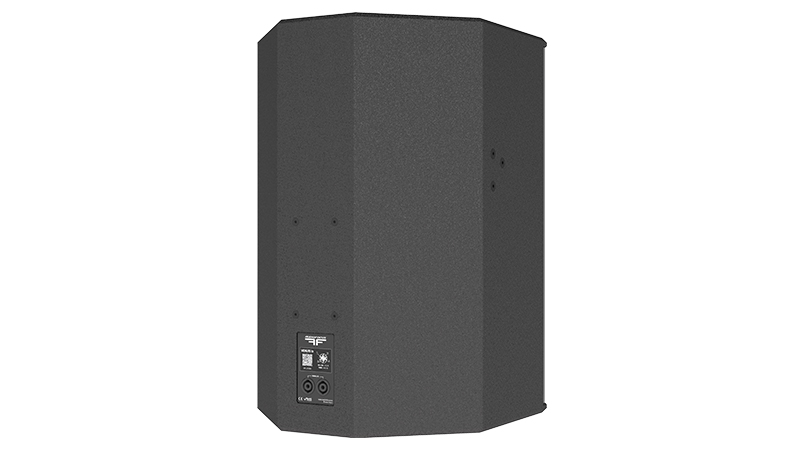

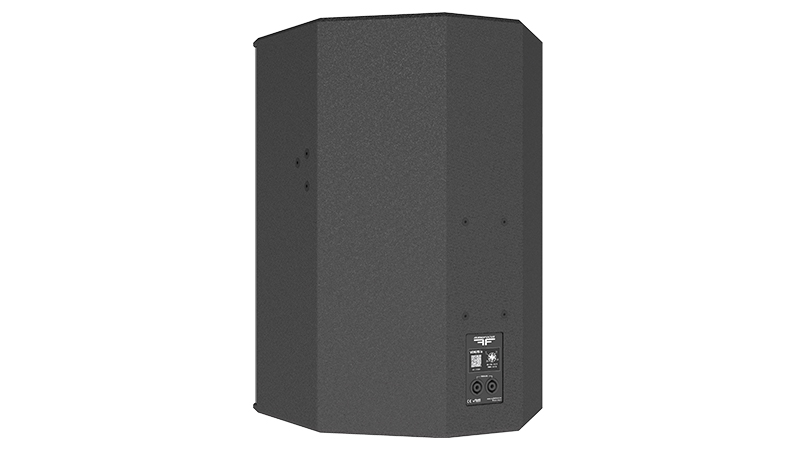

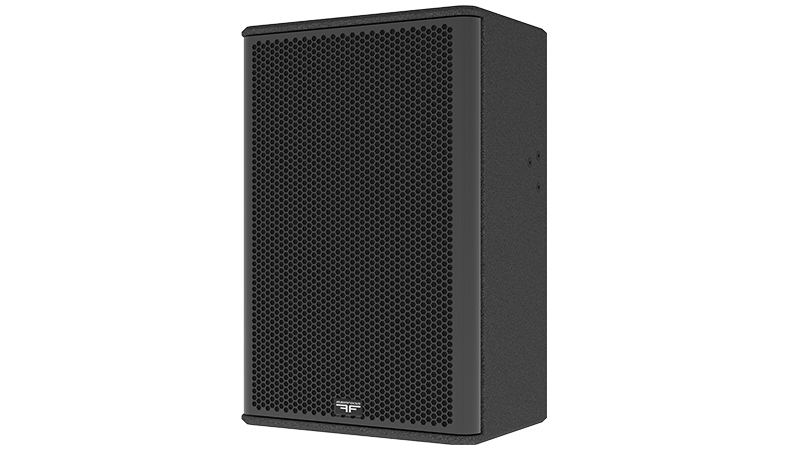

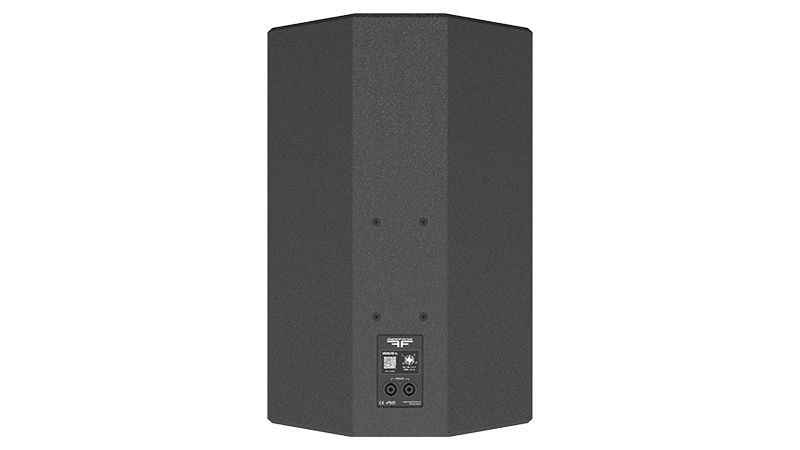

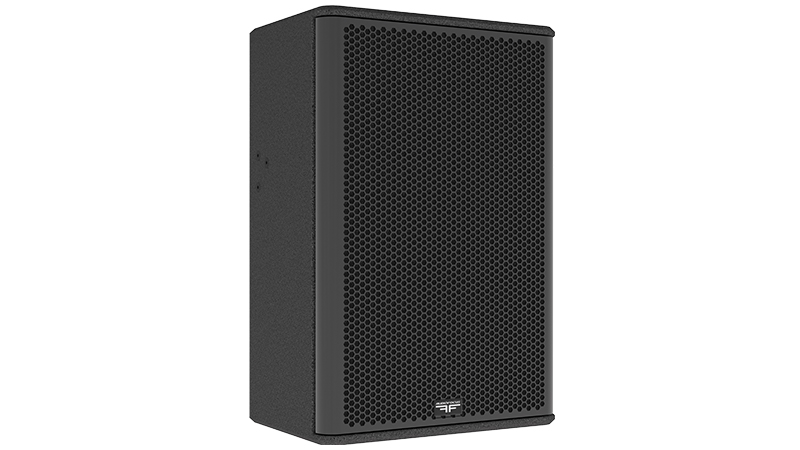

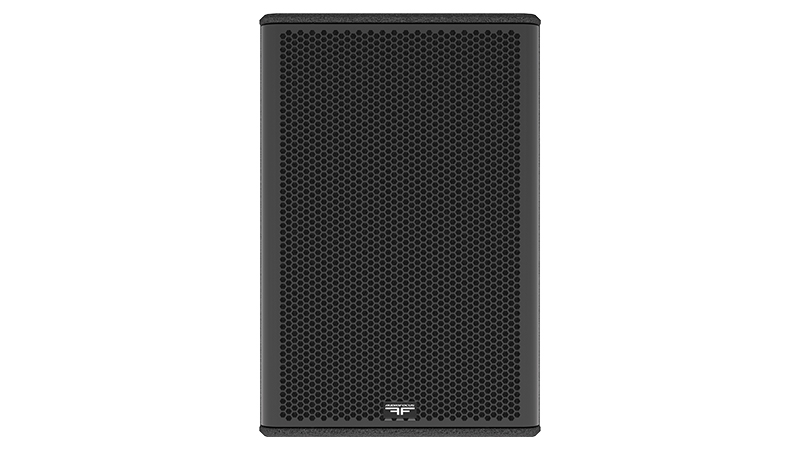

VENU 15ix

Compact installation 2-way 15″ passive point source loudspeaker


TransducersLF: 1×15’’ / HF : 1×1’’
Frequency Range (-6dB)47Hz – 20kHz
SPL peak / 1m (measured)133 dB
Weight21.4kg / 47.17lbs
Share this product

Description

VENU 15ix is a passive 2-way top unit, delivering our signature audio quality in a compact format and optimized for installation applications. With its small footprint and high SPL, VENU 15ix fits right in wherever sound and size matter – from bars and hotels to smaller music venues.

VENU 15ix can be quickly deployed in any configuration when used with AUDIOFOCUS A-704 SCiO, A-1504 SCiO, or A-3004 SCiO amplifiers with integral DSP and dedicated presets. Armonia presets are also available for Powersoft amplifiers.

VENU 15ix is built in Belgium to the same exacting standards as our pro touring ranges and coated in tough, weather-resistant polyurea to protect your investment.

Features

  • Compact 2-way FoH system
  • Optimized for permanent installation
  • Mirror monitor configuration
  • Threaded inserts
  • Passive cross-over network

Technical specifications

Description2-way passive full-range point source
Transducers LF: 1×15’’
HF : 1×1’’
Frequency range (-6dB)47Hz-20kHz
Nominal directivity (-6dB)110° x 60°
Rotatable horn
SPL peak (1)133 dB
ProcessingDedicated AUDIOFOCUS A-series SCiO and Powersoft Armonia presets
RiggingRear plate K&M compatible
Connectors2 × 4-point speakON
Nominal Impedance8ohm
Passive cross-over network
Watt AES/peak435 W / 1740 W
Dimensions (H x W x D)638 x 426 x 412 mm
25.11 x 16.77 x 16.22 inches
Weight21.4kg / 47.17lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5
