118S

High-power compact 18” passive subwoofer


TransducersLF: 1 x 18″ with Tetracoil Double Voice Coils
SPL peak (1)135 dB
Weight68kg / 150lbs
Share this product

Description

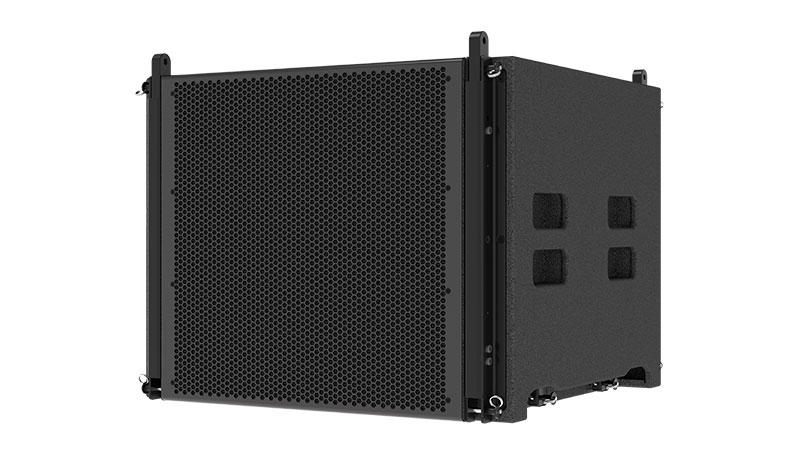

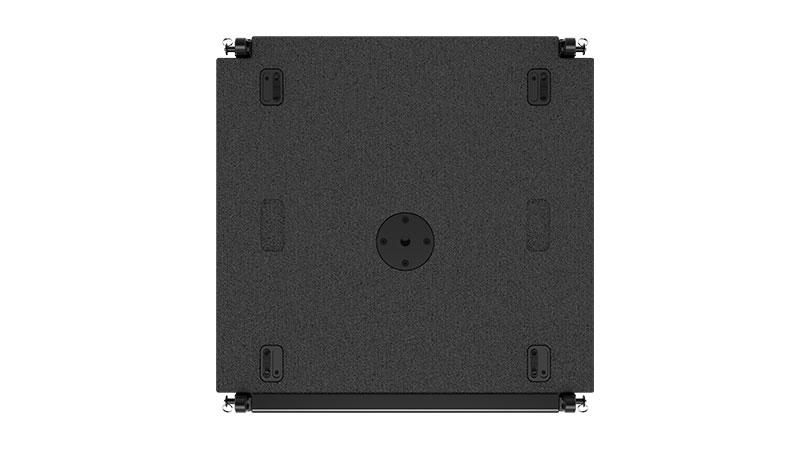

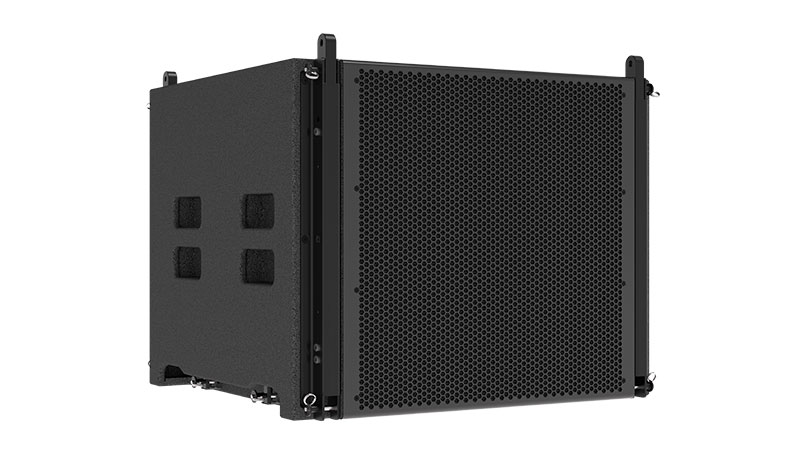

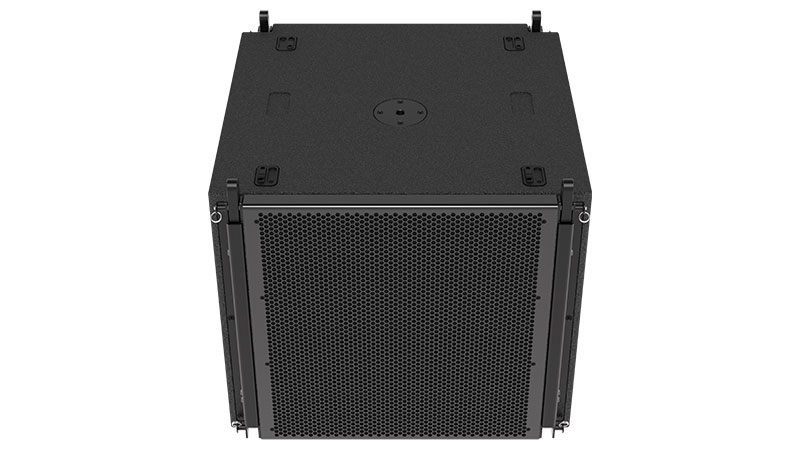

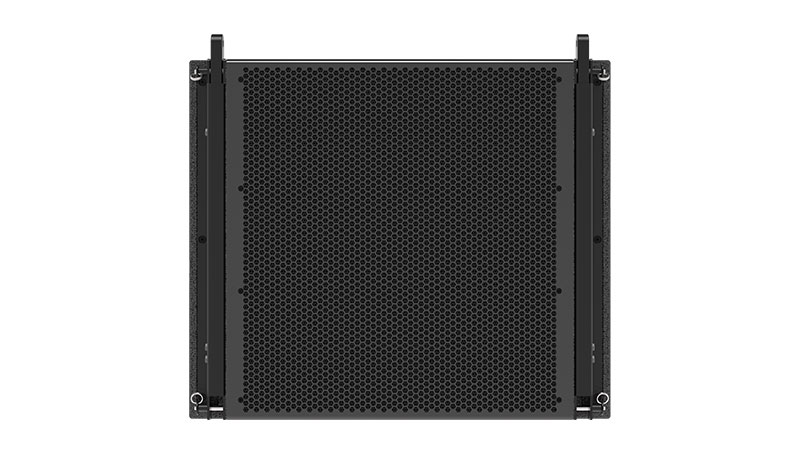

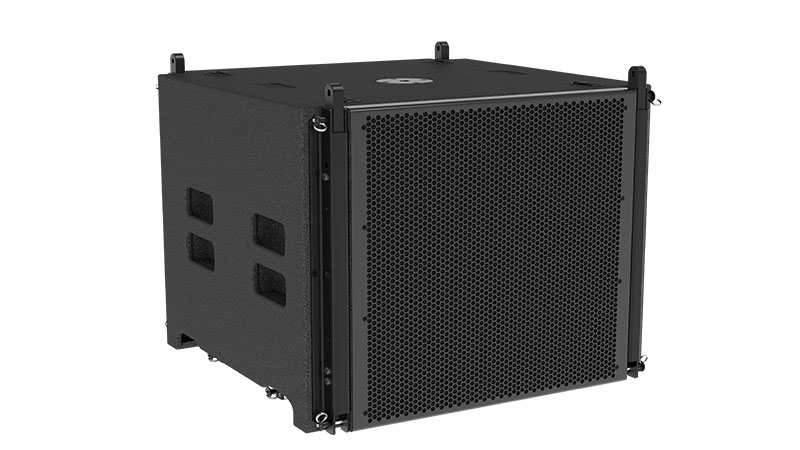

118S is a compact, exceptionally powerful passive touring subwoofer, created as a core component of the AUDIOFOCUS ARRoCC constant curvature loudspeaker system.

The subwoofer houses a next-generation 18” neodymium LF transducer. Tetracoil Double Voice Coil technology allows 118S to achieve best-in-class SPL for its size while ensuring exceptional efficiency and clarity.

118S can be quickly deployed in cardioid and end-fire configurations when used with AUDIOFOCUS A Series amplifiers. Armonia presets are also available for Powersoft amplifiers. 18s can be used standalone or stacked and can be flown with CC210W and CC210N cabinets using the ARRoCC flying frame accessory.

All AUDIOFOCUS loudspeakers are built in Belgium by skilled craftspeople and state-of-the-art machinery before being coated in tough, weather-resistant polyurea to safeguard your investment.

Features

  • Tetracoil double voice coil for efficiency and clarity
  • Exceptional SPL in a compact footprint
  • Cardioid and end-fire configurations
  • Scalable, plug ‘n play system building
  • Compatible with ARRoCC rigging system

Technical specifications (Preliminary information)

DescriptionHigh-power compact 18” subwoofer
TransducersLF: 1 x 18″ with Tetracoil Double Voice Coils
Frequency range (-6dB)30Hz-60Hz
SPL peak (1)135 dB
ProcessingDedicated AUDIOFOCUS and Armonia/Powersoft omni and cardioid presets
RiggingCompatible with ARRoCC flying frame
Connectors2 × 4-point speakON
Nominal impedance8ohm
Watt AES/Peak1800/7200W
Dimensions (H x W x D)700 x 580 x 700mm
27.6 x 22.8 x 27.6 inches
Weight68kg / 150lbs
FinishHighly resistant polyurea coating
CabinetHigh grade birch plywood

(1) Mtone 12 dB crest factor.

Technical sheet
118S

PDF • 370 Ko • 09/01/2024

A Series Output Chart
118S

PDF • 179 Kb • 19/04/2024

Armonia Presets
118S

Zip • 18 Kb • 08/11/2024
