| Transducers | LF: 2 x 10’’ Tetracoil HF: 1 × 4’’ Titanium diaphragm |
| SPL peak/1m | 140dB Mtone (preliminary) |
| Weight | 34kg / 75lbs |
Description

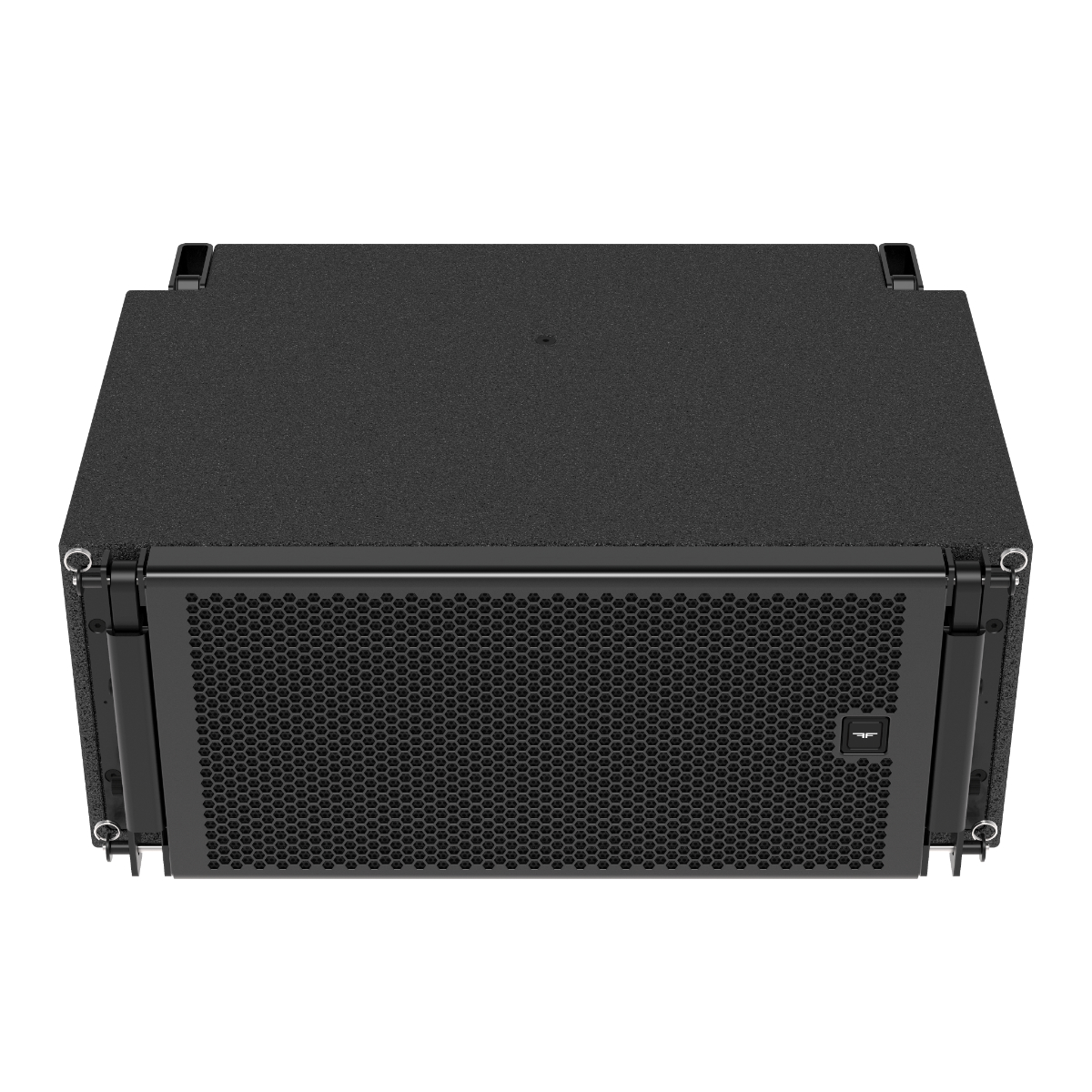

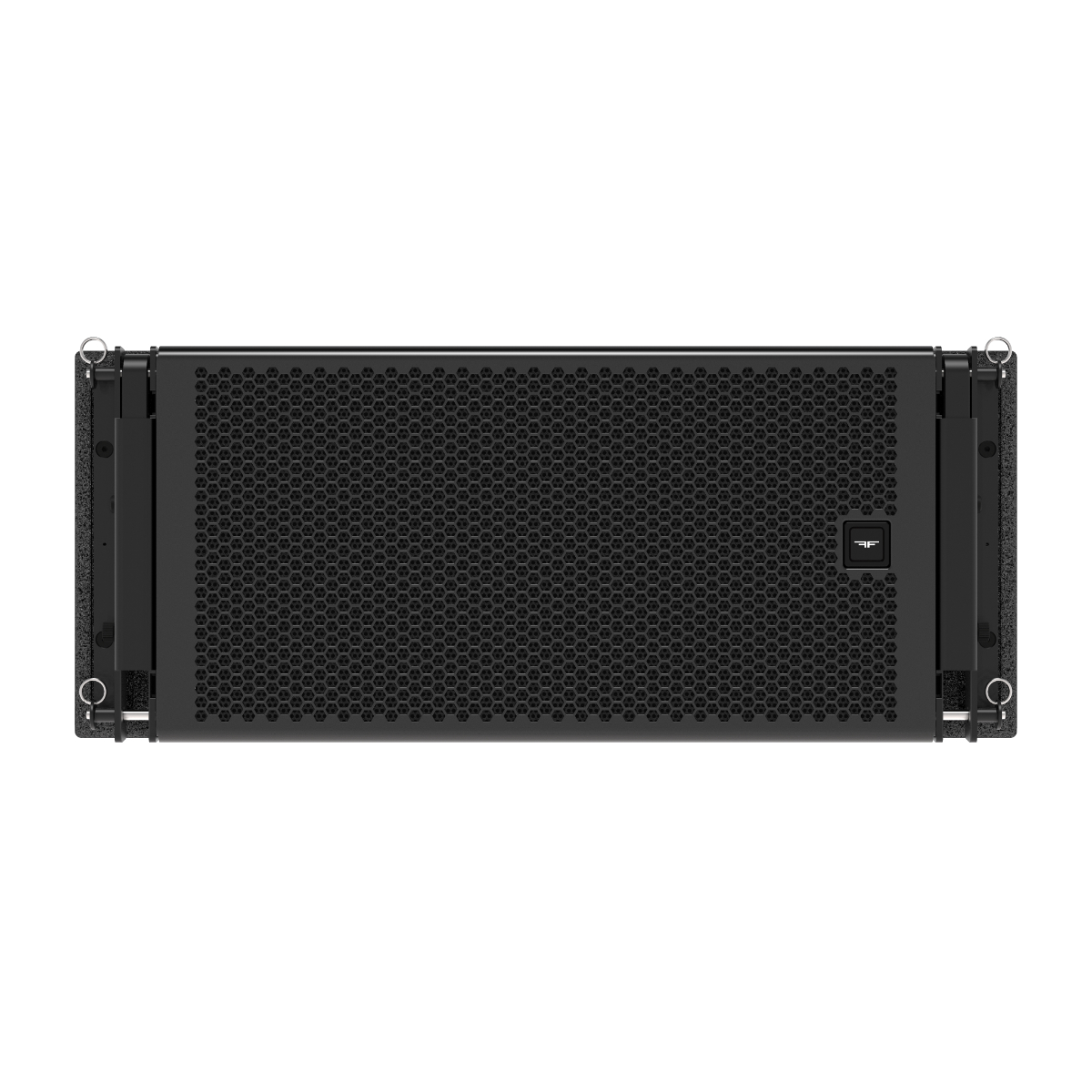

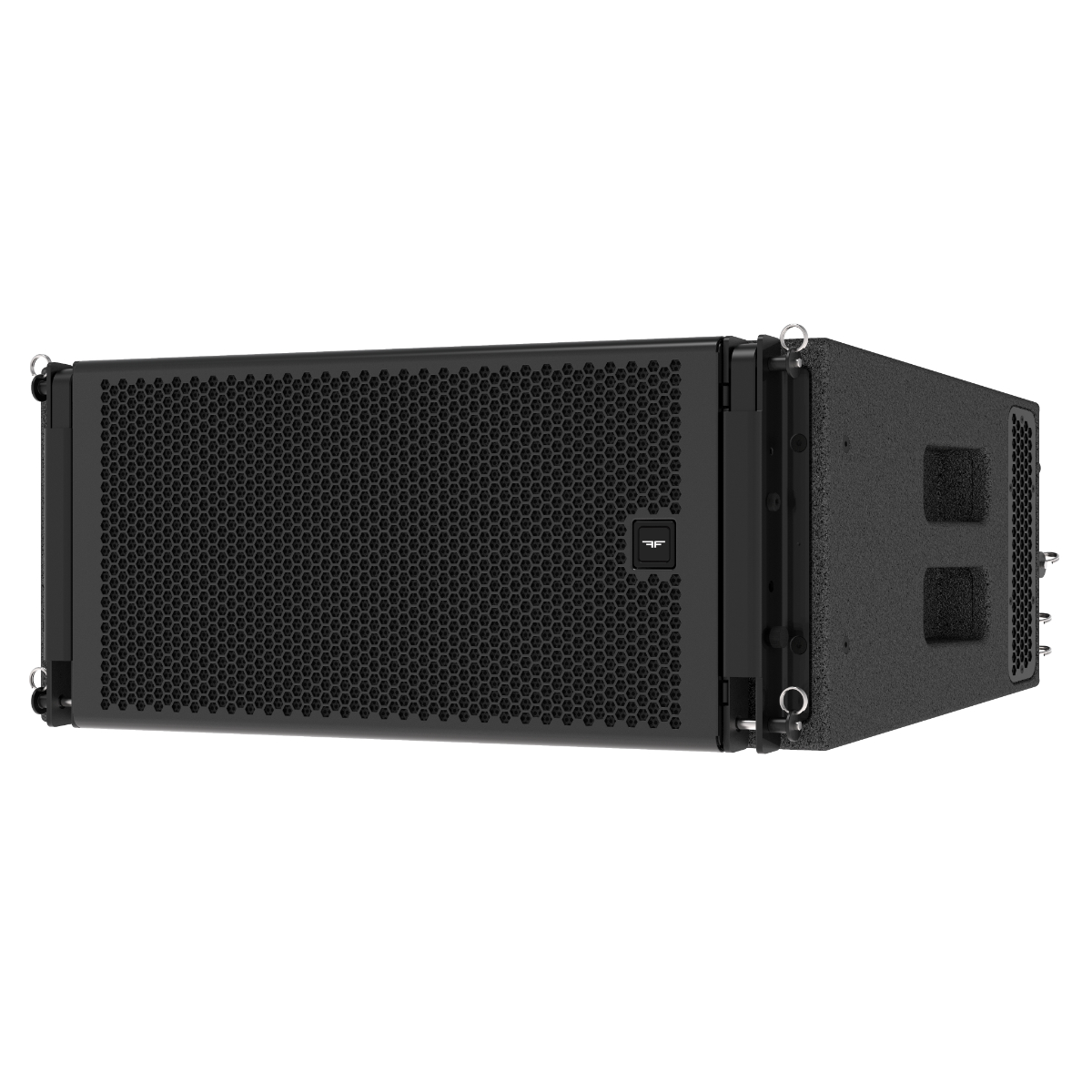

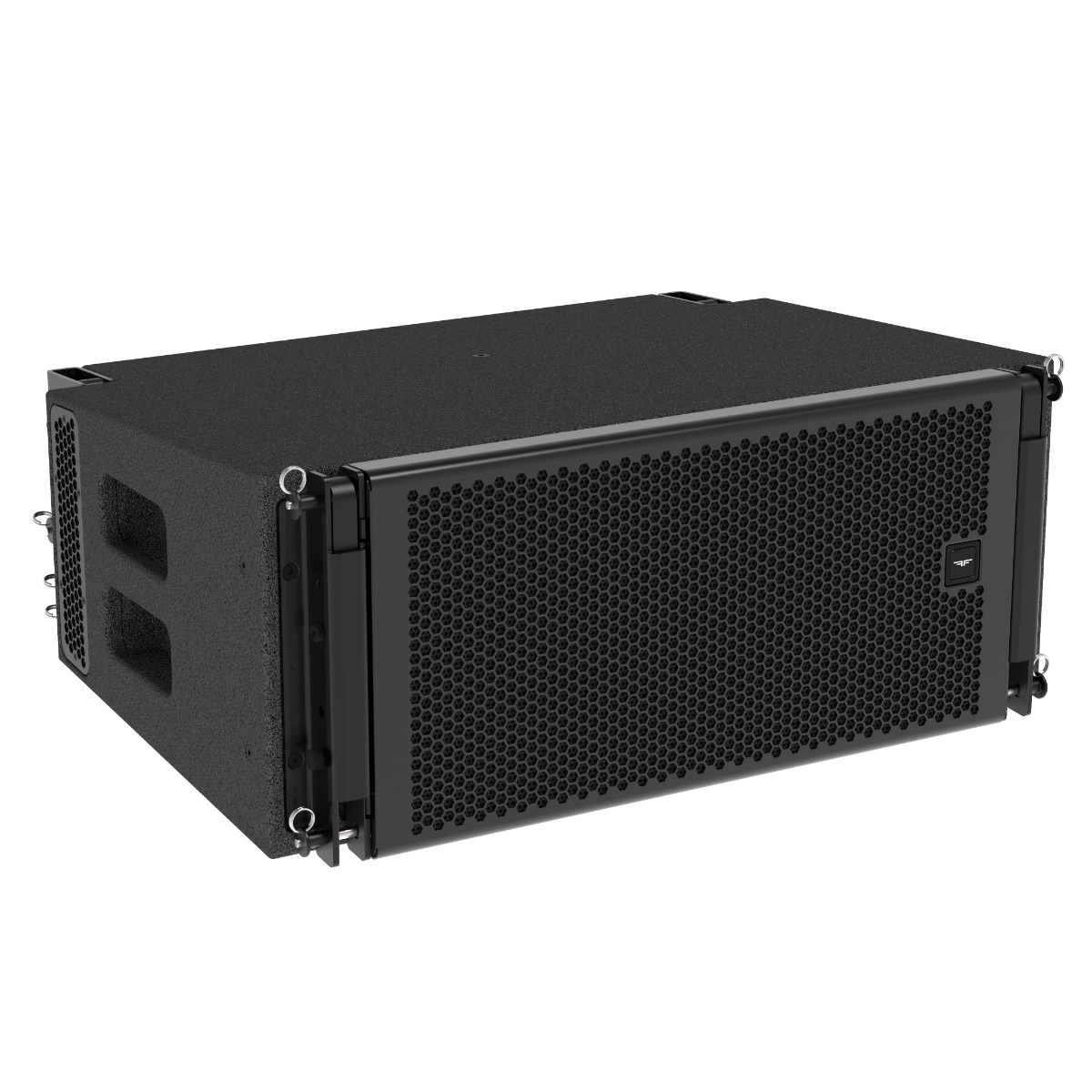

ELIZ 210a is a versatile 2 x 10” line array system with integral amplifier, offering exceptional power and precision in a compact, lightweight format.
ELIZ 210a mounts twin 10” LF transducers in a V formation and harnesses Tetracoil Double Voice Coil technology for exceptional power, enhanced low end performance, precise control, outstanding impulse response, and superior transient handling. A large next-gen titanium diaphragm 4” HF compression driver delivers excellent linearity and mid-band clarity.
A custom two-part ABS magnetized horn plug allows super-fast adjustment of horizontal dispersion, providing maximum versatility with a single top cabinet design.

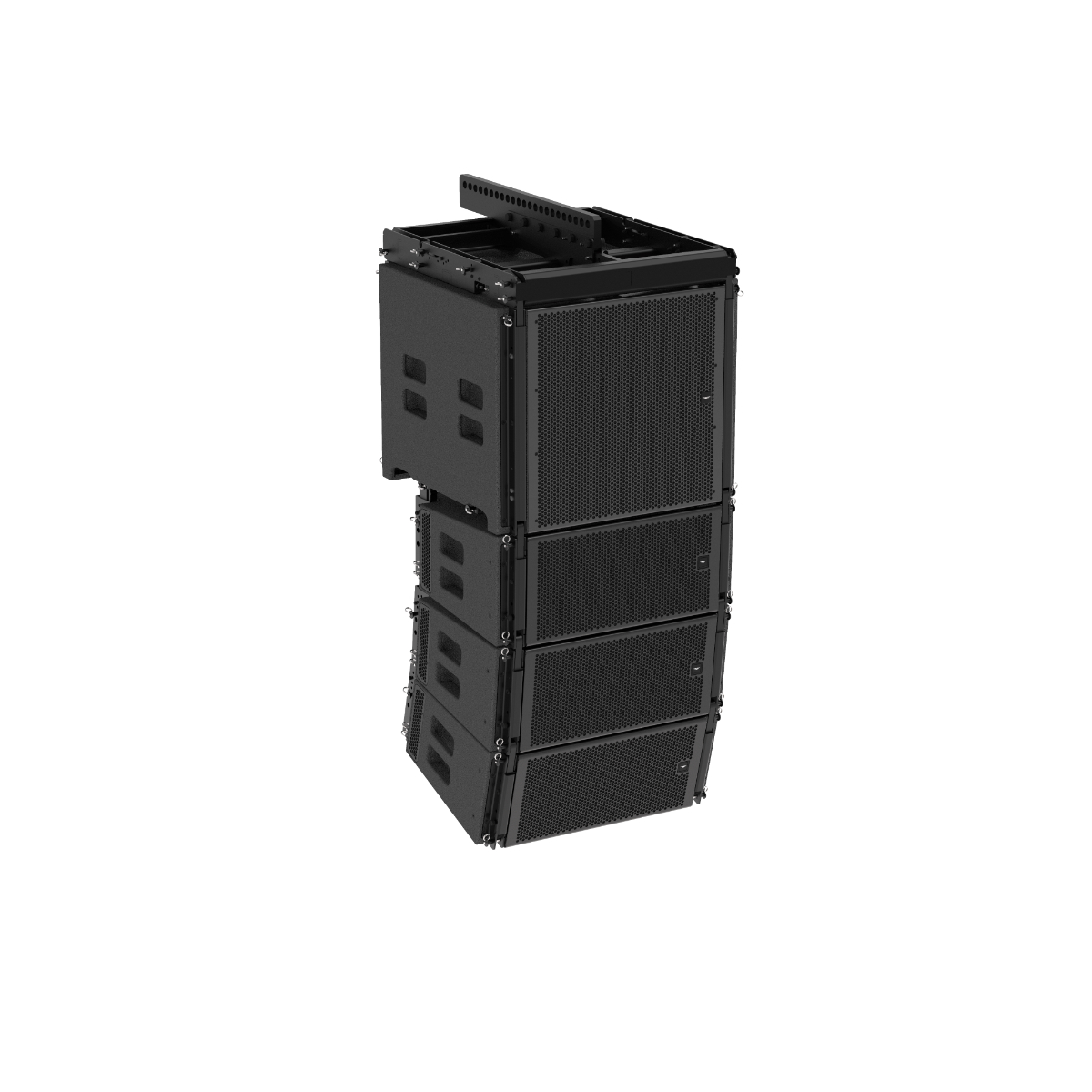

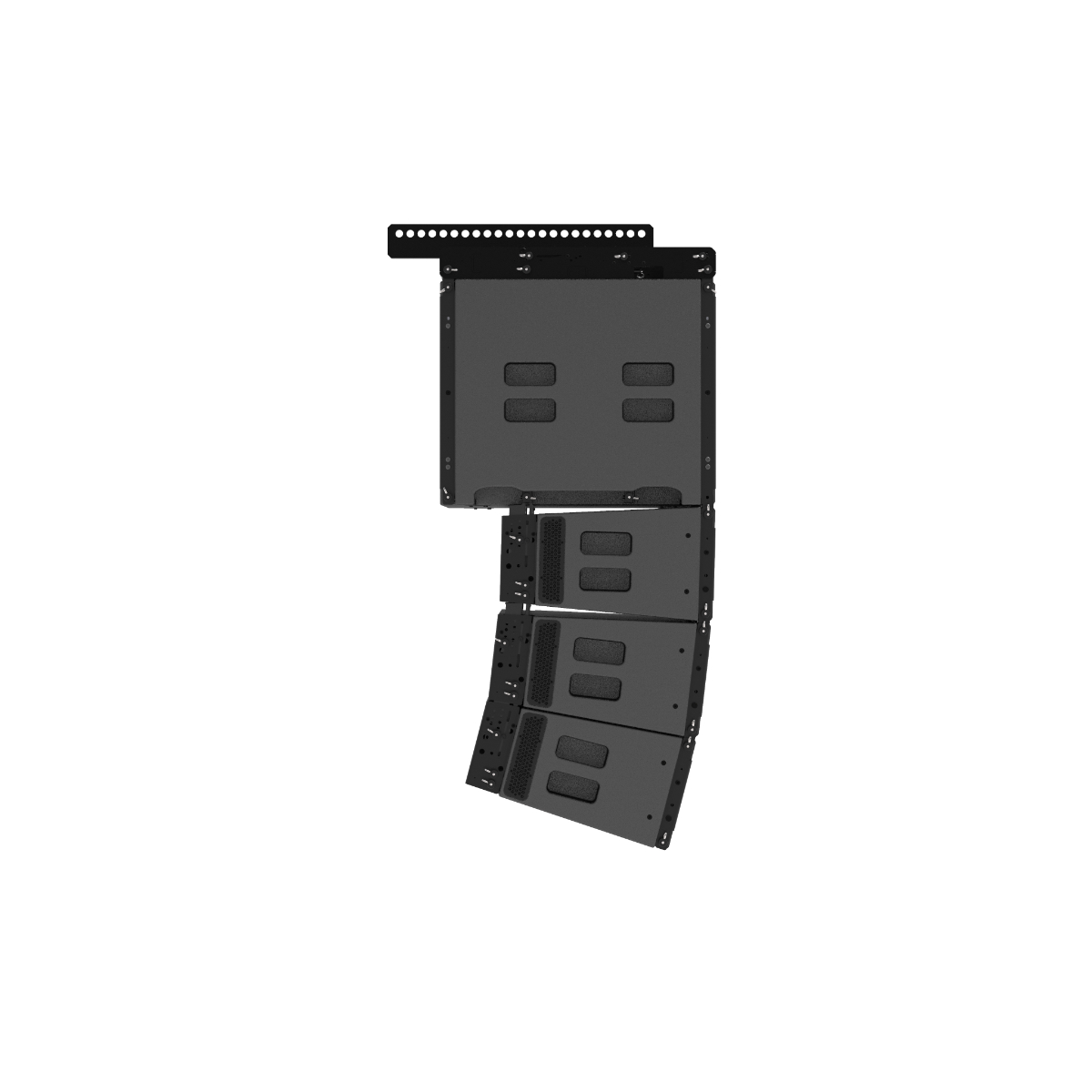

The ELIZ range shares the same audio signature, hanging frame, and 118Sa flown and ground-stacked subwoofers as the ARRoCC constant curvature range, helping rental companies to manage an efficient inventory capable of handling short, medium and long-throw scenarios.
Intuitive SCiO software enables remote control of ELIZ 210a’s integral amplifier from any device.
ELIZ 210a is built in Belgium by skilled craftspeople and state-of-the-art machinery.
Features
- V-mounted twin 10” LF transducers
- Tetracoil double voice coils for power and precision
- 4” titanium diaphragm HF compression driver
- ABS magnetized horn plug adjusts horizontal dispersion
- Integral A4M SCiO amplifier module
- Remotely control + monitor with SCiO software
- Consistent audio signature with ARRoCC 210a + EDGE 210a
Technical specifications (Preliminary information)
| Description | Self-amplified line array loudspeaker |
| Transducers | LF: 2×10’’ Tetracoil HF: 1×1.5” exit compression driver / voice coil diameter 4” |
| Frequency range (-6dB) | 55 Hz – 19 kHz |
| Nominal directivity (-6dB) | 90°x 8° External plate option for 70° coverage |
| SPL peak (1) | 140dB Mtone (preliminary) |
| Processing | Dedicated AUDIOFOCUS A series SCiO and Powersoft Armonia presets |

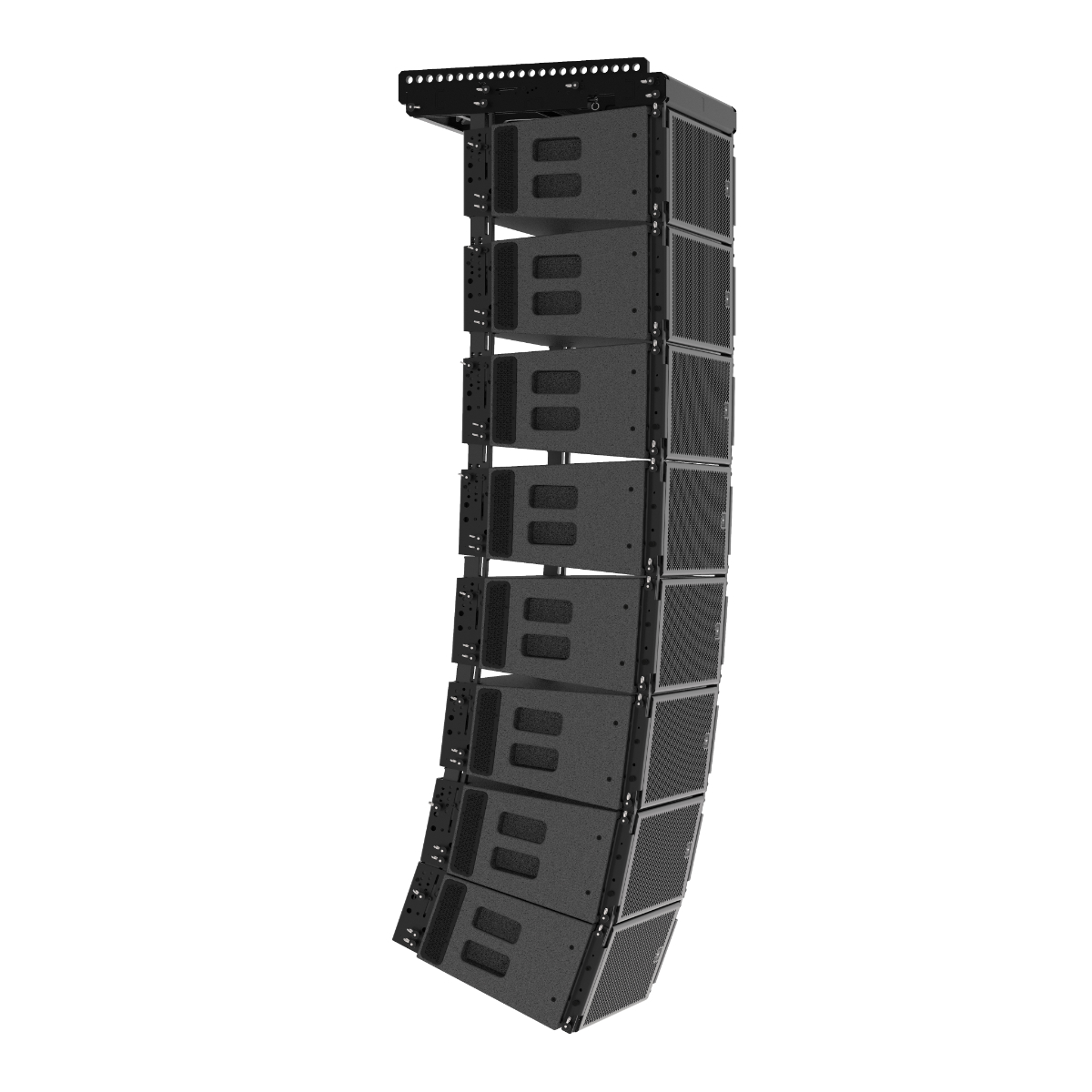

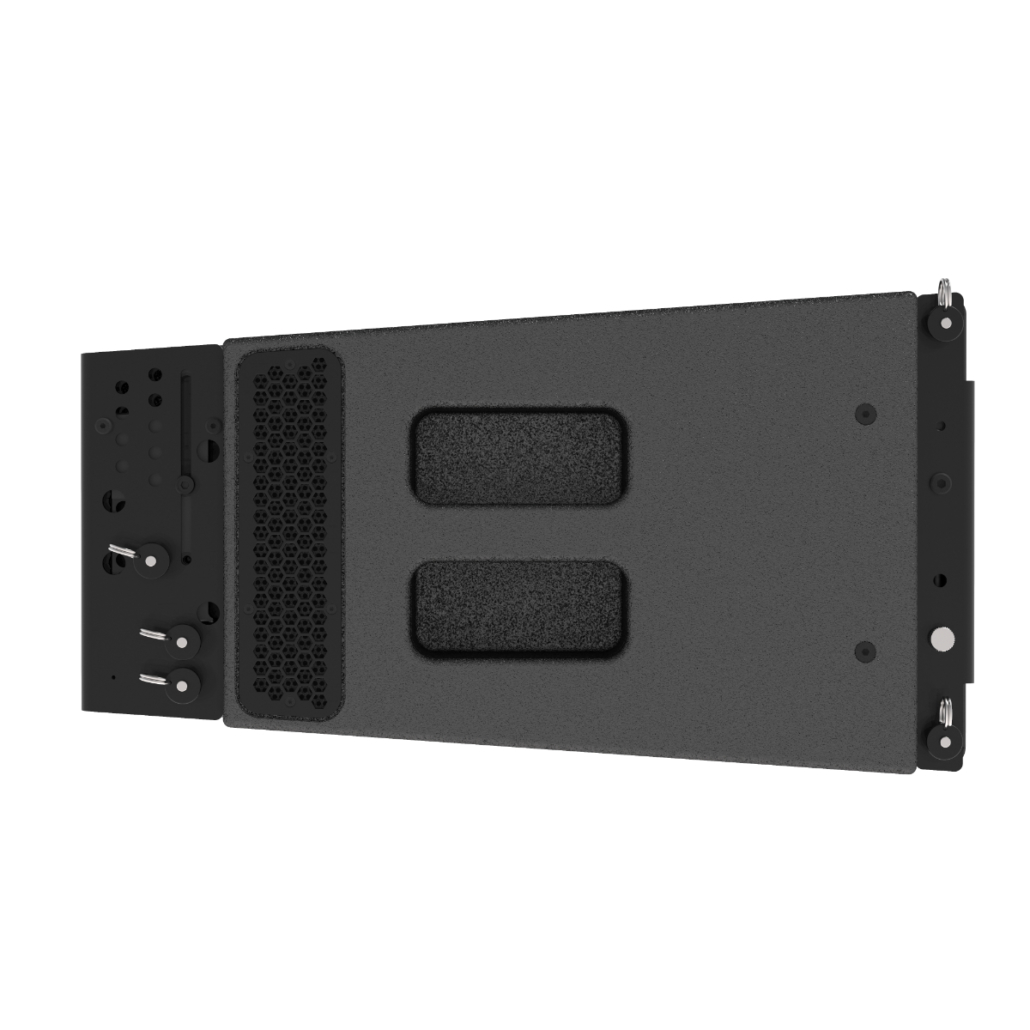

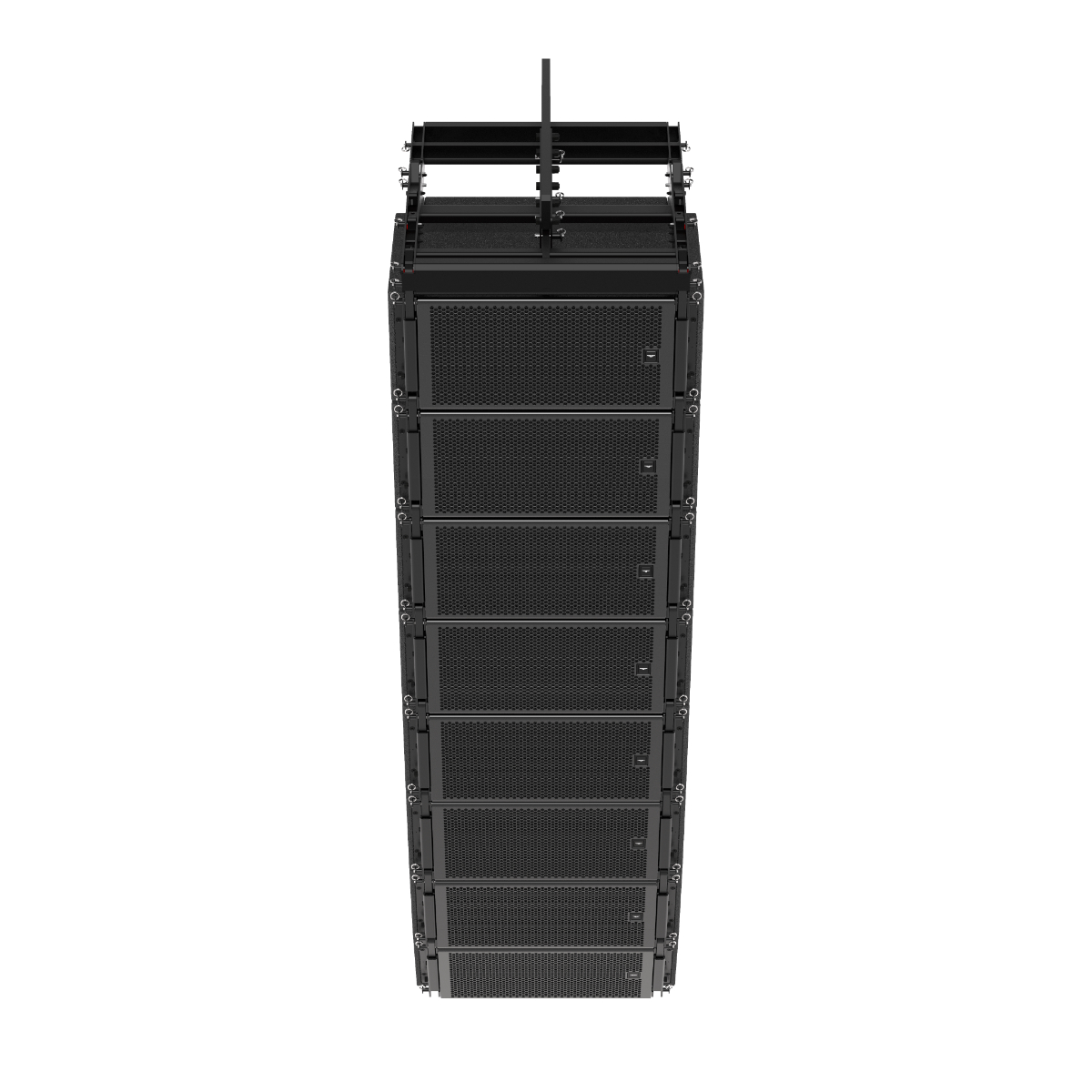

| Rigging | 16 angles from 0 to 8°. Same rigging frame as ARRoCC system and 118Sa , 2 or single point motor option , adjustable extension beam |

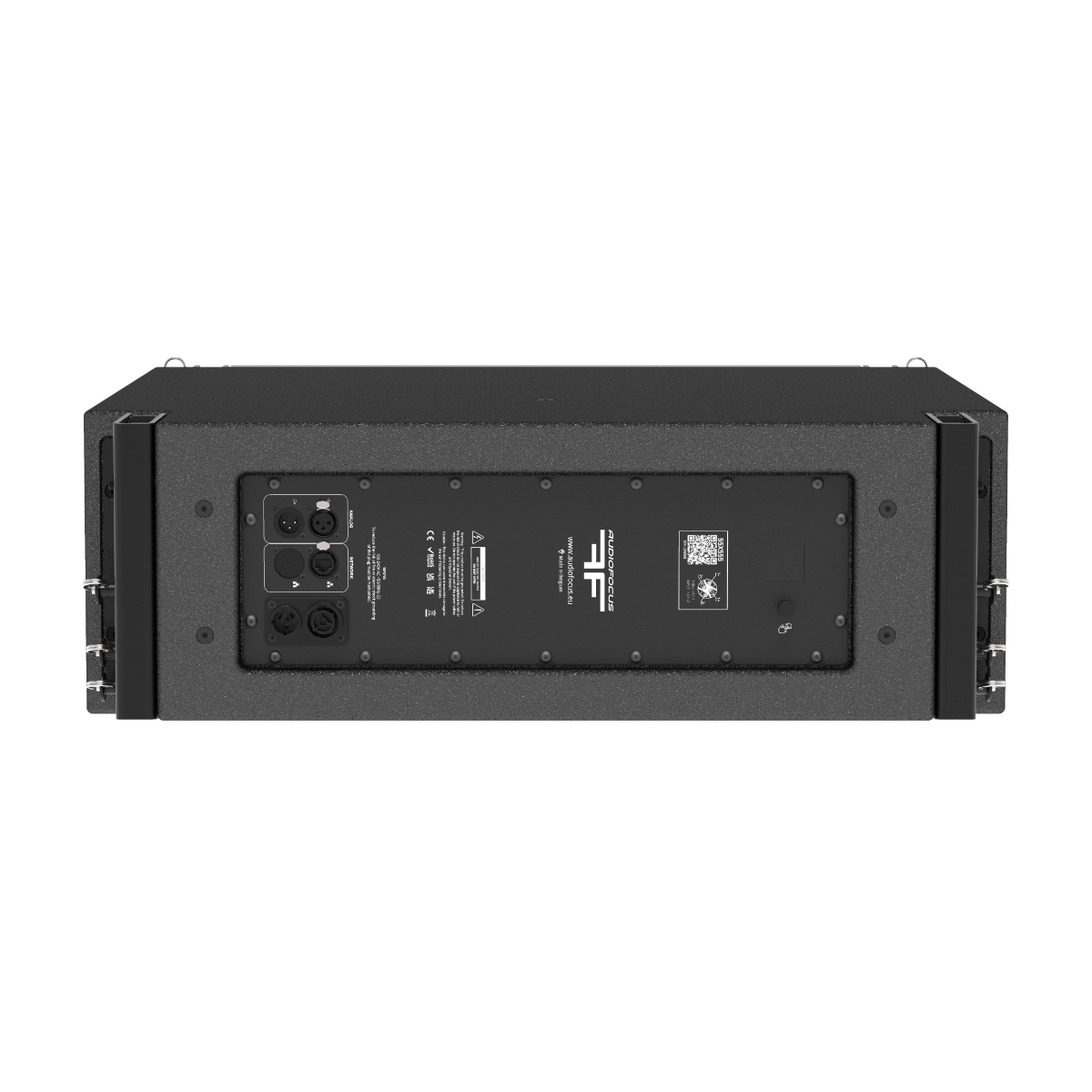

| Audio Connectors | 2 × 4-point speakON |
| Network Connectors | 1x etherCON for control |
| Power Connectors | IN: 1×3-point powerCON TRUE1TOP LINK: 1×3-point powerCON TRUE1TOP |
| Dimensions (H x W x D) | 290 x 700 x 545 mm • 11.4 x 27.6 x 21.5 inches |
| Weight | 34kg / 75lbs (preliminary) |
| Finish | Highly resistant polyurea coating |
| Cabinet | High grade birch plywood |
(1) Mtone 12dB crest factor with compression of 2dB average
Technical sheetELIZ 210a (preliminary)
PDF • 1.7 Mb • 25/01/2025
ELIZ 210 / ARRoCC 210 / 118S Hanging frame + bar .dwg
DWG • 826 Kb • 07/03/2025
Firmware V1.3.5S
+ Update guide
ZIP • 5.9 MB • 21/02/2025
PDF • 143 KB • 09/04/2024
