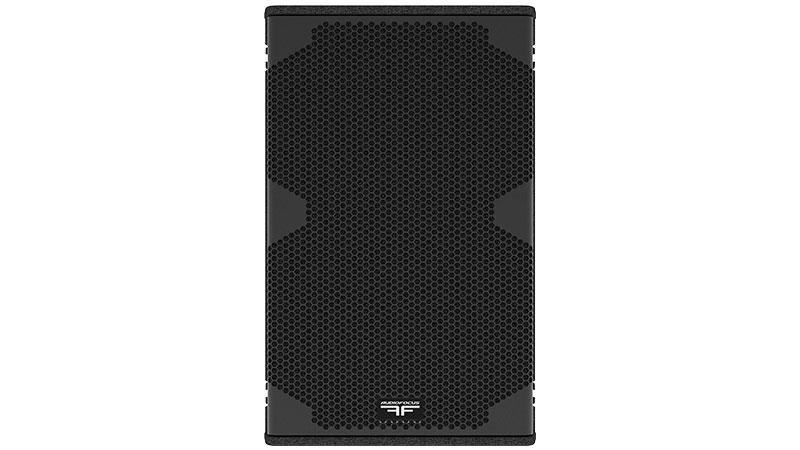

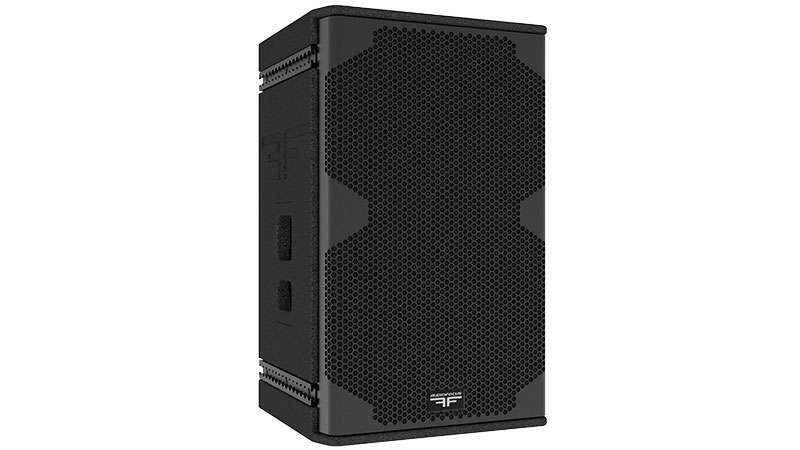

FRX 15

2-way bi-amplified full-range constant curvature element


TransducersLF: 1×15’’ / HF : 1×1.4’’
Frequency Range (-6dB)55Hz – 20kHz
SPL max / 1m (measured)138 dB
Weight33,5kg / 73.85lbs
Share this product

Description

FRX 15 is a compact, powerful bi-amplified 2-way constant curvature loudspeaker, optimized for medium throw, high SPL live applications. FRX 15 is a uniquely versatile building block for systems ranging from single top pole mounts to left/right, central cluster or in the round setups. Typically used in horizontal ground stack configurations, FRX 15 can also be flown and its adjustable 80×30° AF horn can be reconfigured quickly without the need for tools.

Our proprietary X-Comb DSP technology eliminates comb effects, ensuring perfect coupling between FRX 15 cabinets and creating a coherent wavefront at any location. The enclosure houses a 1.4’’ diaphragm compression driver loaded with a 15’’ neodymium low-frequency transducer and offers two distinct directivity plans.

FRX 15 can be quickly deployed in any configuration when used with AUDIOFOCUS A Series amplifiers with integral DSP and dedicated presets. Armonia presets are also available for Powersoft amplifiers.

FRX 15 is built with pride in Belgium and coated in tough, weather-resistant polyurea to safeguard your investment. The cabinet front is protected by a rigid metal grill, backed by acoustically transparent foam.

Features

  • Multi-function FoH system
  • Optimized for medium throw applications
  • For audiences of 100-3,000 people
  • Bi-amplified
  • Adaptive (rotating) AF horn 80×30°
  • X-Comb technology inside

Technical specifications

Description2-way bi-amplified full-range constant curvature element
Transducers LF: 1×15’’
HF: 1×4” exit compression driver / voice coil diameter 1.75”
Frequency range (-6dB)55Hz-20 kHz
Nominal directivity (-6dB)80°x30°
Rotatable horn, no tools needed
SPL max (1)138 dB
ProcessingDedicated AUDIOFOCUS and Powersoft Armonia presets
RiggingPole mounted and Aeroquip fly tracks with dedicated rigging

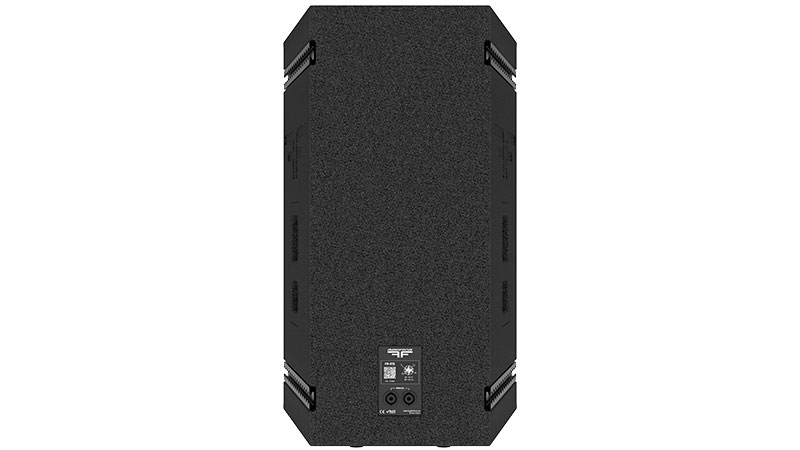

Connectors2 × 4-point speakON
Nominal ImpedanceLF: 8ohm
HF: 8ohm
Watt AES/peakLF: 600/2400W
HF: 80/320W
Dimensions (H x W x D)680 x 429 x 437 mm
26.77 x 16.88 x 17.20 inches
Weight33,5kg / 73.85lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5
