| Transducers | LF : 1 x 15″ |
| SPL peak / 1m (measured) | 132 dB |
| Weight | 35kg / 77.16lbs |
| Rigging | Pole mount |
Description

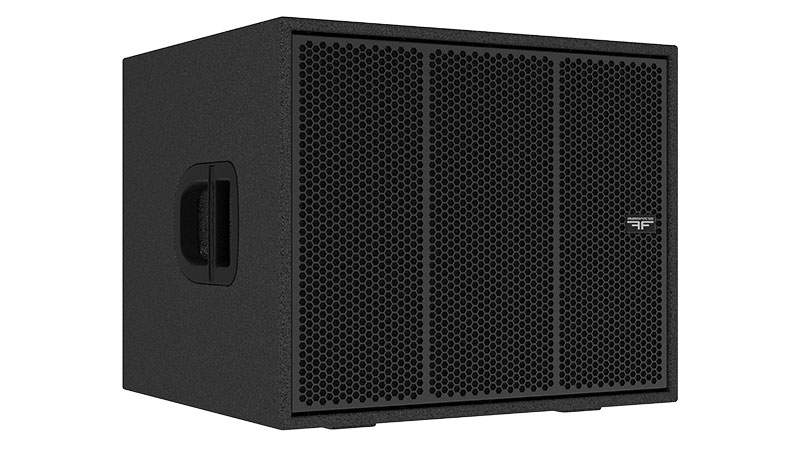

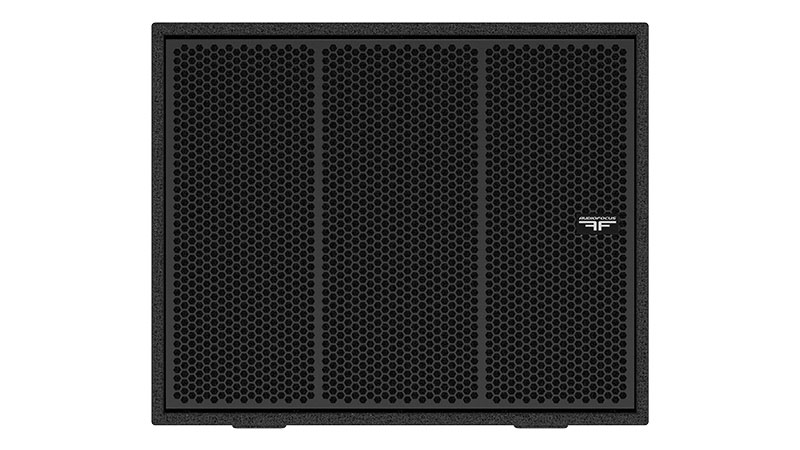

S 15a is a compact, high-performance self-powered touring subwoofer, designed to accompany our VENU series in a wide range of sound reinforcement applications requiring high SPL in a discreet, compact package.
S 15a houses a long excursion 15″ neodymium driver in a bass-reflex and T-lined design and has the versatility to be deployed stand-alone, stacked or flown.
An advanced AUDIOFOCUS Class D amplifier module with integrated DSP and versatile presets allows S 15a to be quickly deployed in any configuration, including cardioid and end-fire.
S 15a is built with pride in Belgium and coated in tough, weather-resistant polyurea to safeguard your investment. The cabinet front is protected by a rigid metal grill, backed by acoustically transparent foam.
Features
- Powerful bass-reflex T-lined design
- Mobile application
- Pole mount socket
- Self-powered plug ‘n play
Technical specifications
| Description | Compact self-powered subwoofer |
| Transducers | LF: 1 x 15″ |
| Frequency range (-6dB) | 40Hz-100Hz |
| SPL peak (1) | 132 dB |
| Processing | Dedicated AUDIOFOCUS omni and cardioid presets |
| Rigging | Pole socket |
| Audio Connectors | IN: 1 x 3-point XLR LINK: 1 x 3-point XLR |
| Power Connectors | IN: 1×3-point powerCON TRUE1TOP LINK: 1×3-point powerCON TRUE1TOP |
| Dimensions (H x W x D) | 485 x 580 x 520 mm 19.09 x 22.83 x 20.47 inches |
| Weight | 35kg / 77.16lbs |
| Finish | Highly resistant polyurea coating
|
| Cabinet | High grade birch plywood |
(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5
- Display 9 Products per page
Technical sheetS 15a
PDF • 644 Ko • 09/04/2024
