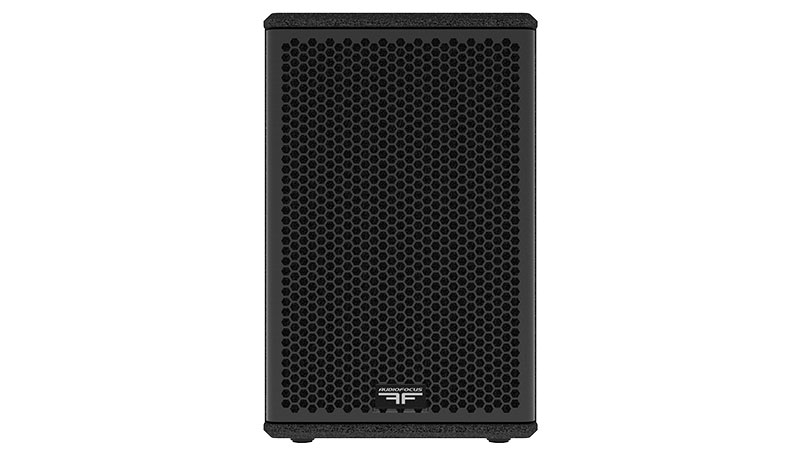

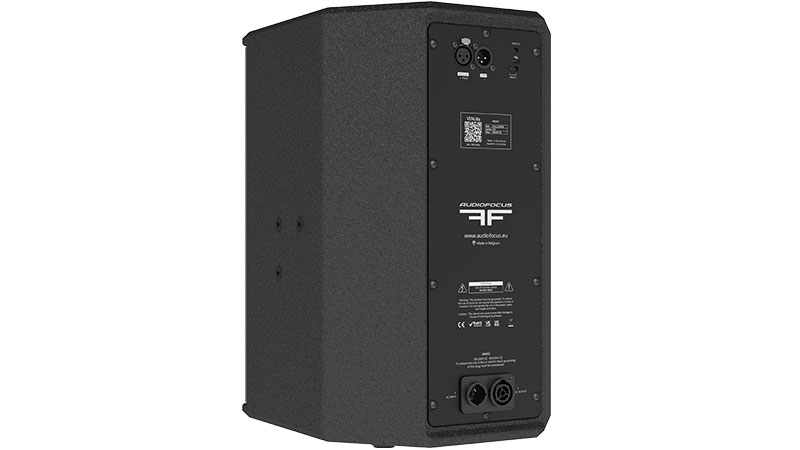

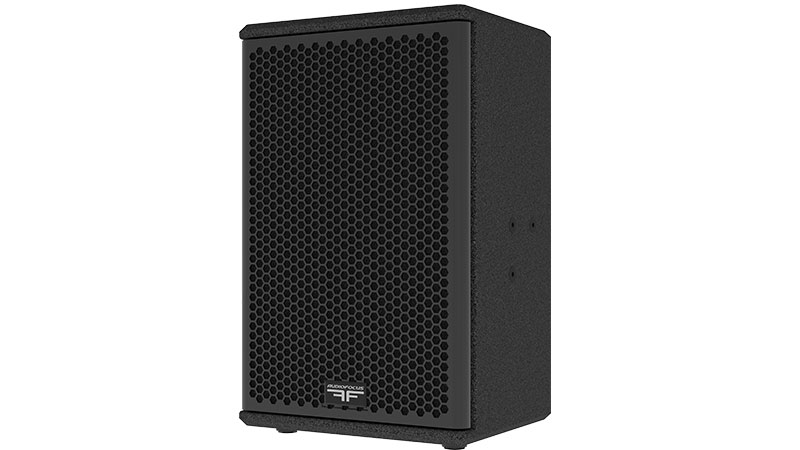

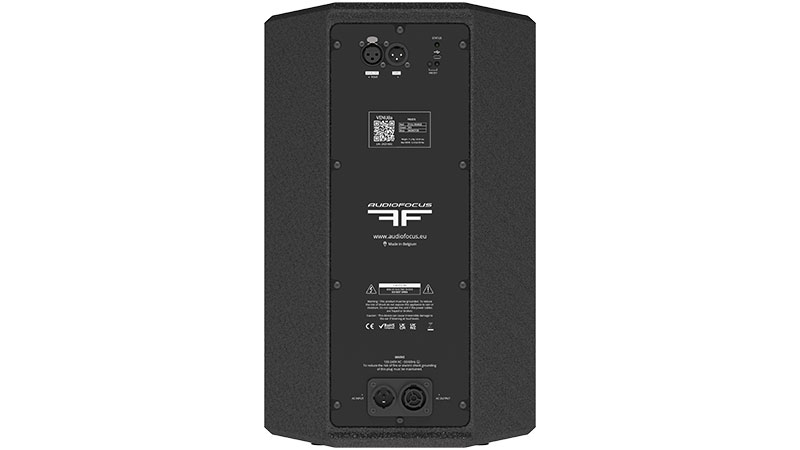

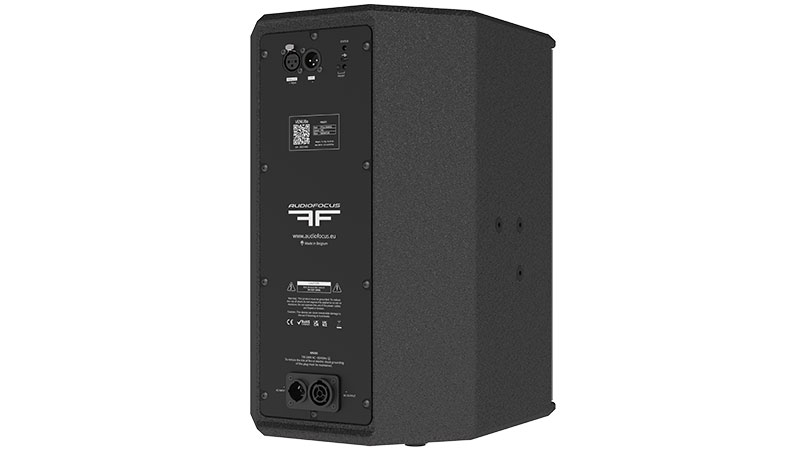

VENU 8a

Compact touring 2-way 8″ self-powered point source loudspeaker


TransducersLF: 1×8’’ / HF : 1×1’’
Frequency Range (-6dB)55Hz – 20kHz
SPL peak / 1m (measured)134 dB
Weight11,5kg / 25.35lbs
Share this product

Description

The 2-way self-powered VENU 8a top unit delivers our signature audio quality in a discreet, super-compact, lightweight format, making it the go-to solution for intimate performances, cafés, acoustic gigs, parties and wherever sound and size matter. Equally at home as a single top, full range PA or stage monitor, rental companies and venues will love VENU 8a’sflexibility and portability.

Our R&D team commissioned bespoke Italian transducers, helping the VENU series to earn its reputation for best-in-class sensitivity and transparency for compact loudspeakers.

An advanced AUDIOFOCUS Class D amplifier module with integral DSP and 4 versatile presets allows VENU 8a to be quickly deployed in any configuration. Our intuitive AUDIOFOCUS Manager software also makes it easy to fine-tune EQ, delay and phase settings.

VENU 8a is built in Belgium to the same exacting standards as our pro touring ranges and coated in tough, weather resistant polyurea to protect your investment.

Features

  • Compact 2-way FOH system
  • Lightweight and portable
  • Mirror monitor configuration
  • Tiltable pole mounts
  • Plug ‘n Play
  • Bespoke Italian drivers
  • Self-powered

Technical specifications

Description2-way active self-powered full-range point source
Transducers LF: 1×8’’
HF : 1×1’’
Frequency range (-6dB)55Hz-20kHz
Nominal directivity (-6dB)80°x80°
SPL peak (1)134 dB
ProcessingDedicated AUDIOFOCUS presets
RiggingAdjustable pole mount and M8 threaded inserts
Optional bracket available
Audio ConnectorsIN: 1×3-point XLR
LINK: 1×3-point XLR
Power ConnectorsIN: 1×3-point powerCON
LINK: 1×3-point powerCON
Dimensions (H x W x D)430 x 275 x 290 mm
6.77 x 10.82 x 11.41 inches
Weight11,5kg / 25.35lbs
FinishHighly resistant polyurea coating

MaterialTop grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5

Gll files for Ease and Easefocus

Gll • 3.27 Mo • 06/01/2022
