S 18a

Touring high performance self-powered 18″ subwoofer


TransducersLF : 1 x 18″
SPL peak / 1m (measured)134 dB
Weight40kg / 88.18lbs
RiggingPole mount
Share this product

Description

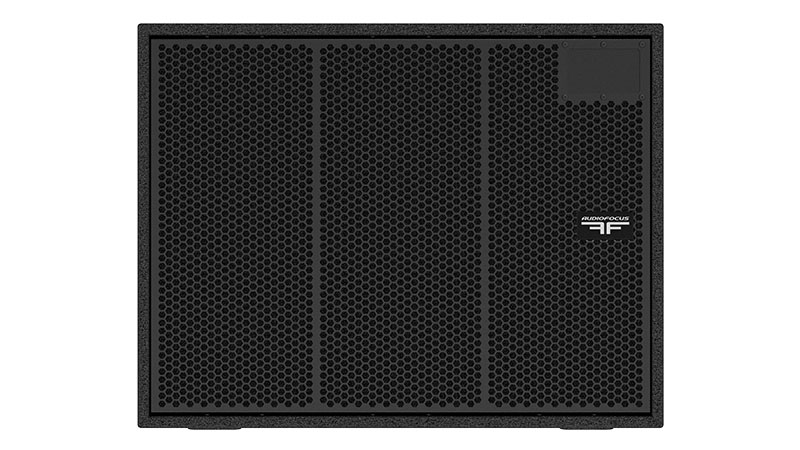

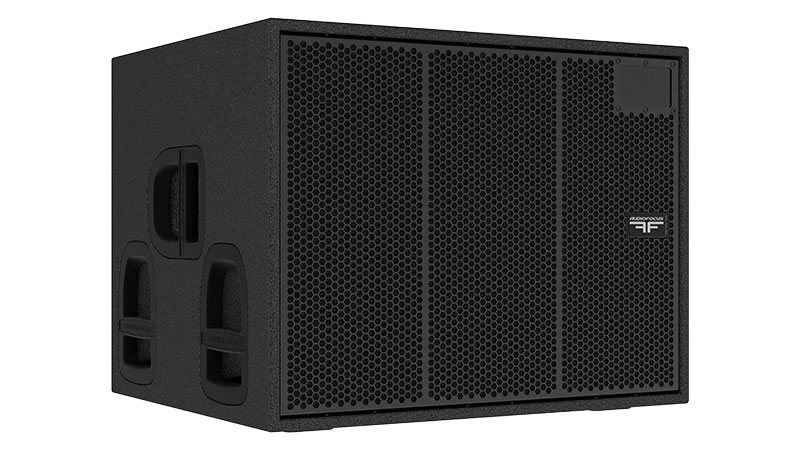

S 18a is a compact, high-performance self-powered touring subwoofer, providing the perfect companion to the AUDIOFOCUS VENU, FR-X, or ARES 8 series in discreet standalone, stacked configurations. Cardio and end fire on every version.

The subwoofer houses a long excursion 18″ neodymium driver and combines front diffusion, bass reflex, and transmission line design for ultimate efficiency and performance.

An advanced AUDIOFOCUS Class D amplifier module with integral DSP and 4 versatile presets allows S 18a to be quickly deployed in any configuration.

S 18a is built with pride in Belgium and coated in tough, weather-resistant polyurea to safeguard your investment. The cabinet front is protected by a rigid metal grill, backed by acoustically transparent foam. Its compact design and ergonomic handles make S18a easy to transport and deploy.

Features

  • Powerful bass-reflex T-line design
  • Mobile applications
  • Pole mount socket
  • Self-powered, plug ‘n play
  • 6 presets

Technical specifications

DescriptionHigh-power self-powered subwoofer
Transducers LF: 1 x 18″
Frequency range (-6dB)38Hz-110Hz
SPL max (1)134 dB
ProcessingDedicated AUDIOFOCUS omni and cardio presets
RiggingPole socket and Aeroquip fly tracks
Audio ConnectorsIN: 1×3-point XLR
LINK: 1×3-point XLR
Network/AESOP Connectors (Dante optional)2 x RJ45
Power ConnectorsIN: 1×3-point powerCON
LINK: 1×3-point powerCON
Dimensions (H x W x D)510 x 650 x 560 mm
20.07 x 25.59 x 22.04 inches

Weight40kg / 88.18lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5

Gll files for Ease and Easefocus

S 18

Gll • 1.64 Mo • 06/01/2022

S 18 Stack

Gll • 1.78 Mo • 06/01/2022
