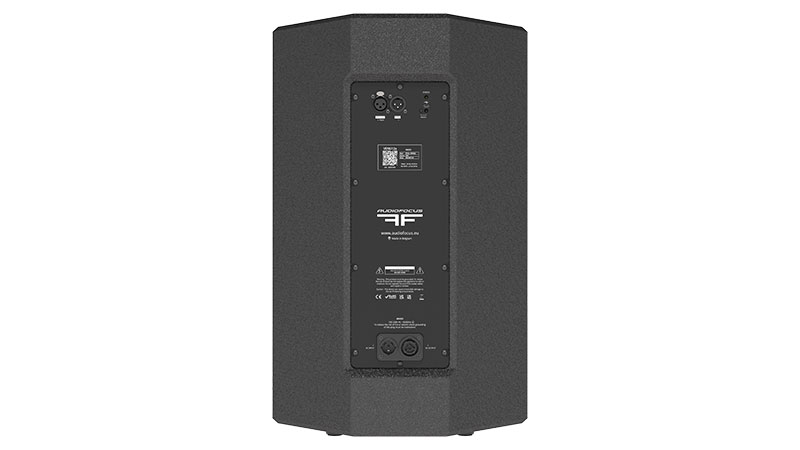

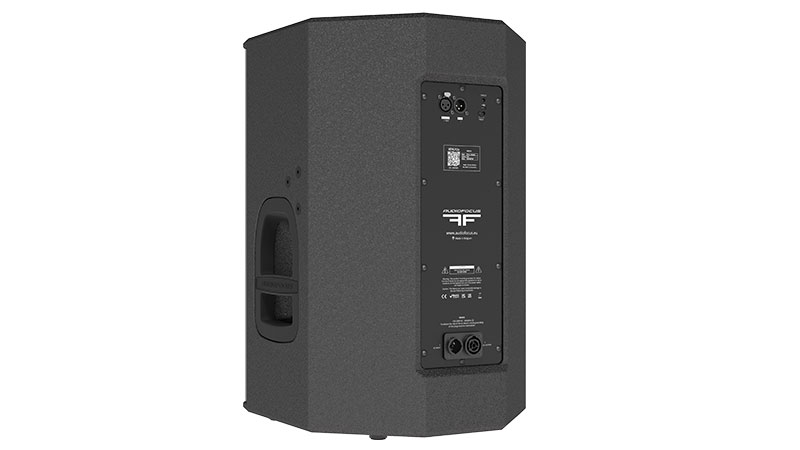

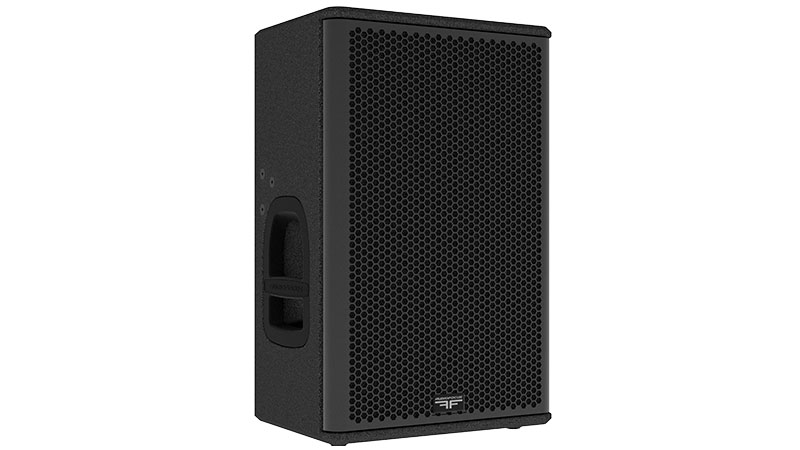

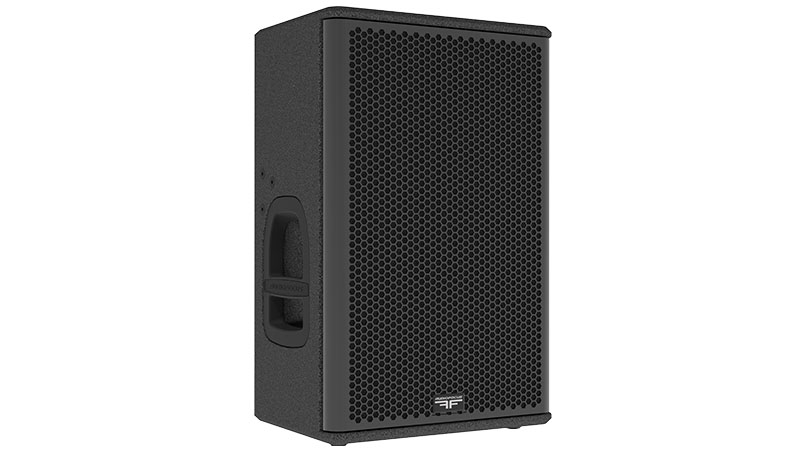

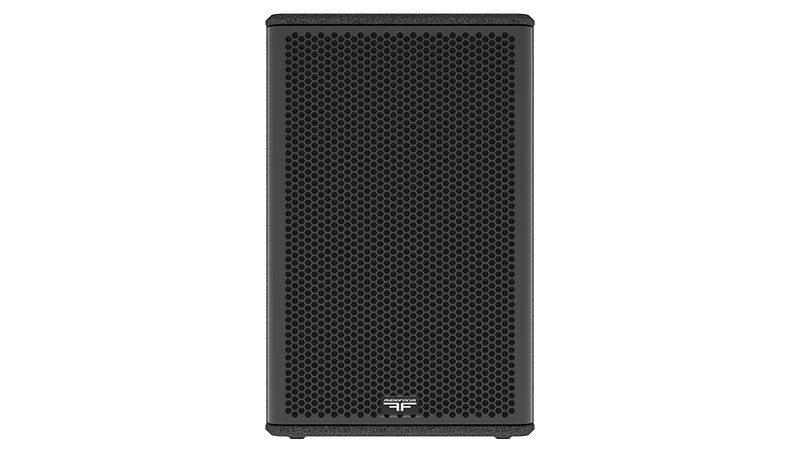

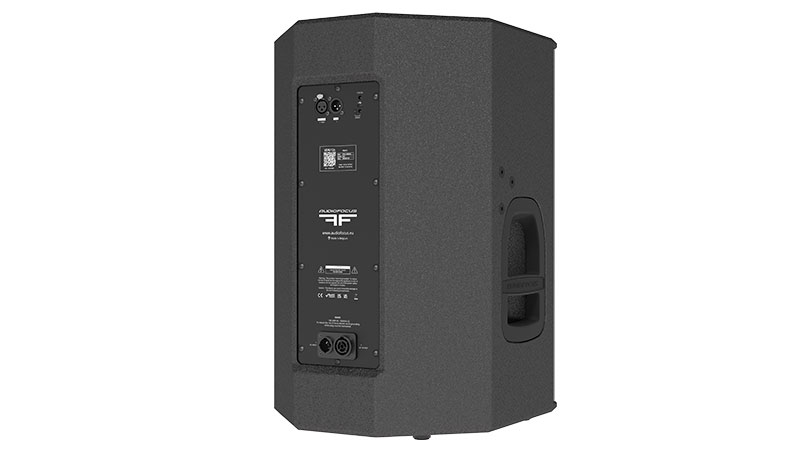

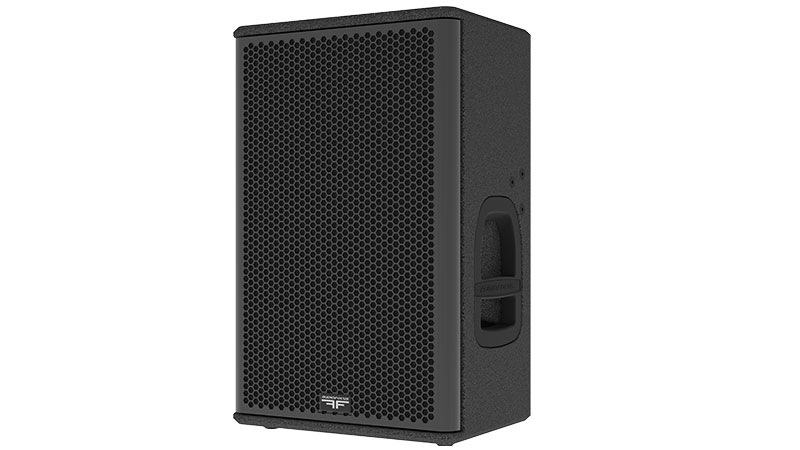

VENU 12a

Compact touring 2-way 12″ self-amplified point source loudspeaker


TransducersLF: 1×12’’ / HF : 1×1’’
Frequency Range (-6dB)50Hz – 20kHz
SPL peak / 1m (measured)135 dB
Weight18,5kg / 40.78lbs
Share this product

Description

The ultimate multi-function workhorse loudspeaker, AUDIOFOCUS VENU 12a is a compact self-powered 2 way top unit for PA, parties, cafes and rental companies. VENU 12a excels as a single top, as a full range PA or even as a stage monitor – delivering excellent return on your investment.

Our R&D team commissioned bespoke Italian transducers, helping the VENU series to earn its reputation for best-in-class sensitivity and transparency for compact loudspeakers.

An advanced AUDIOFOCUS Class D amplifier module with integral DSP and 4 versatile presets allows VENU 12a to be quickly deployed in any configuration.

VENU 12a is built in Belgium to the same exacting standards as our pro touring ranges and coated in tough, weather-resistant polyurea to protect your investment.

Features

  • Compact 2-way FoH system
  • Suitable for Mobile and Portable use
  • Top and side carry handles
  • Mirror monitor configuration
  • Threated inserts
  • Plug ‘n Play
  • Bespoke Italian drivers

Technical specifications

Description2-way active self-powered full-range point source
Transducers LF: 1×12’’
HF : 1×1’’
Frequency range (-6dB)50Hz-20 kHz
Nominal directivity (-6dB)110°x60°
Rotatable horn
SPL peak (1)135 dB
ProcessingDedicated AUDIOFOCUS presets
RiggingAdjustable pole mount and M8 threaded inserts
Optional bracket available
Audio ConnectorsIN: 1×3-point XLR
LINK: 1×3-point XLR
Power ConnectorsIN: 1×3-point powerCON
LINK: 1×3-point powerCON
Dimensions (H x W x D)566 x 362 x 357 mm
22.28 x14.25 x14.05 inches
Weight18,5kg / 40.78lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5

Gll files for Ease and Easefocus

Gll • 4.20 Mo • 06/01/2022
