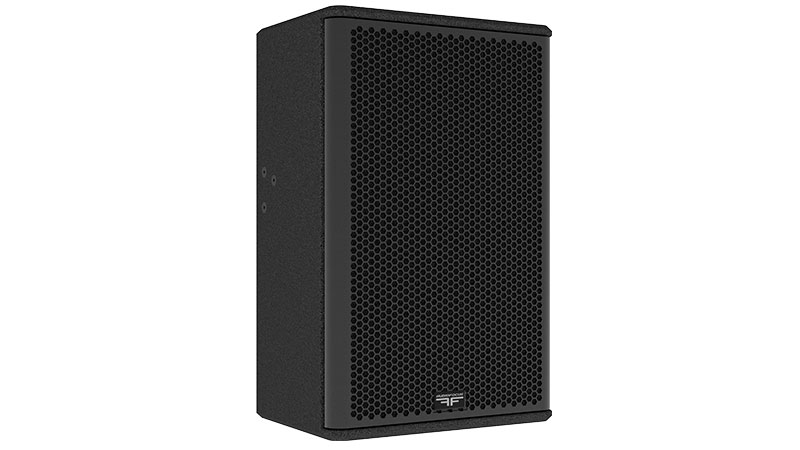

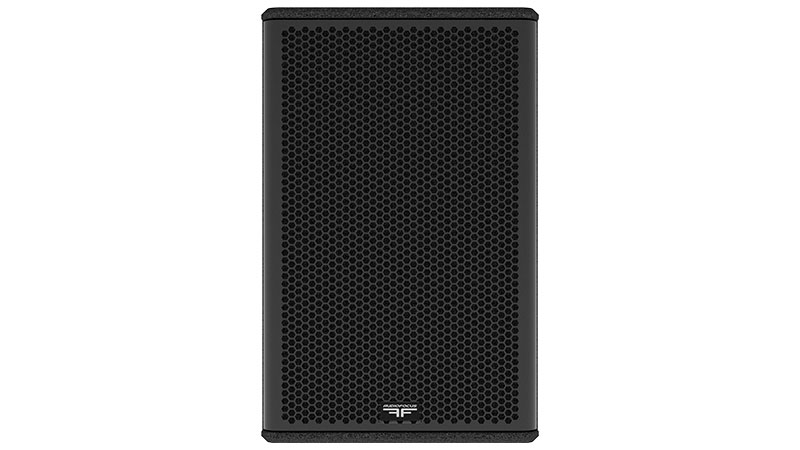

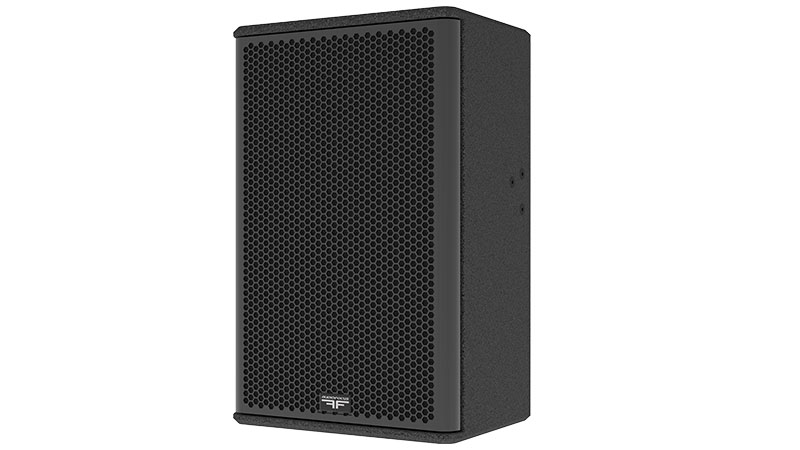

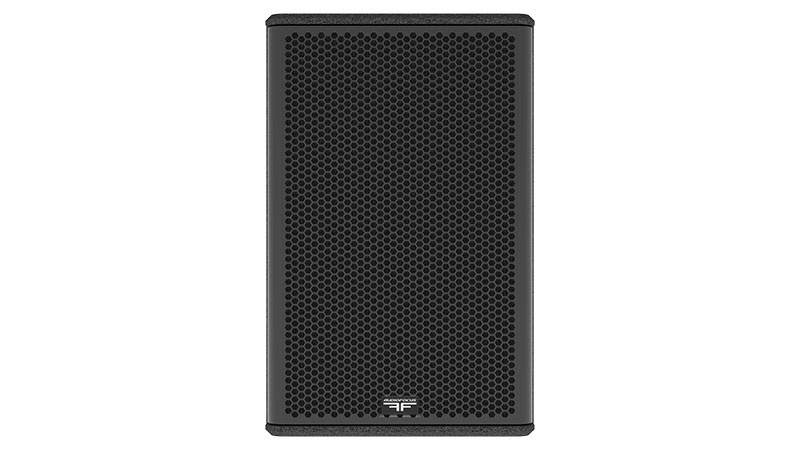

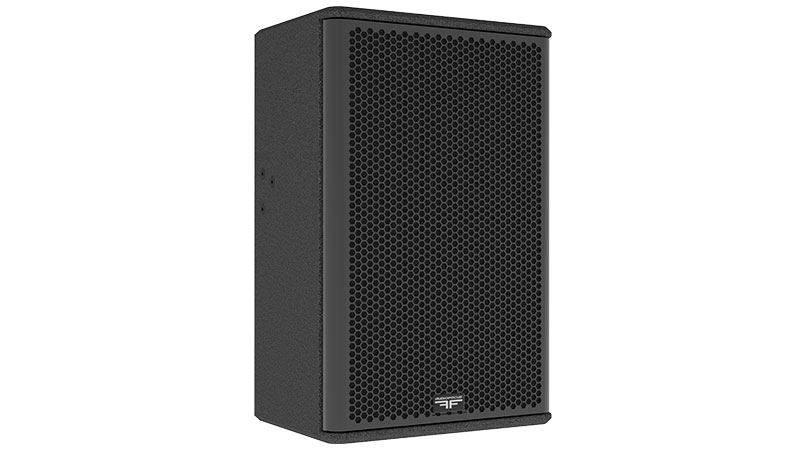

VENU 12i

Install 2-way bi-amplified full-range point source loudspeaker


TransducersLF: 1×12’’ / HF : 1×1’’
Frequency Range (-6dB)50Hz – 20kHz
SPL peak / 1m (measured)135 dB
Weight17.3kg / 38.13lbs
Share this product

Description

VENU 12i is a bi-amplified 2-way top unit, delivering our signature audio quality in a compact format that is optimized for installation applications. With its small footprint and discreet appearance, VENU 12i fits right in wherever sound and size matter – from bars and hotels to smaller music venues.

VENU 12i can be quickly deployed in any configuration when used with AUDIOFOCUS A-704 SCiO, A-1504 SCiO, or A-3004 SCiO amplifiers with integral DSP and dedicated presets. Armonia presets are also available for Powersoft amplifiers.

VENU 12i is built in Belgium to the same exacting standards as our pro touring ranges and coated in tough, weather-resistant polyurea to protect your investment.

Features

  • Compact 2-way FoH speaker
  • Optimised for permanent installation
  • Mirror monitor configuration
  • Threaded inserts
  • Bi-amplified

Technical specifications

DescriptionInstall 2-way bi-amplified full-range point source
Transducers LF: 1×12’’
HF : 1×1’’
Frequency range (-6dB)50Hz-20 kHz
Nominal directivity (-6dB)110°x60°
Rotatable horn
SPL peak (1)135 dB
ProcessingDedicated AUDIOFOCUS A-series SCiO and Powersoft Armonia presets

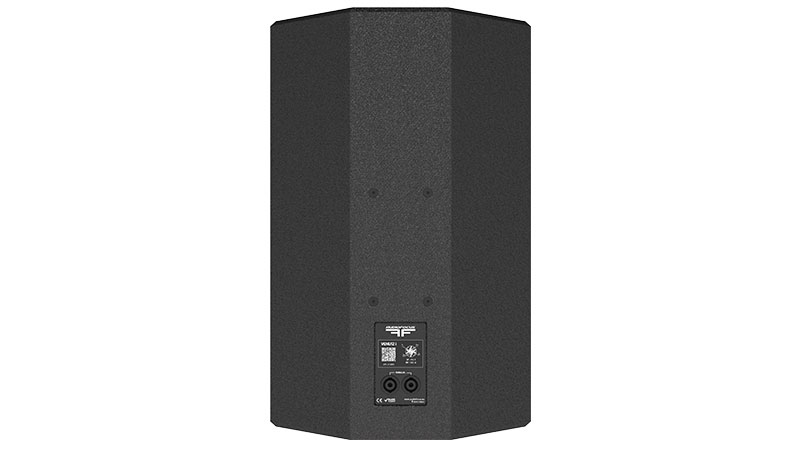

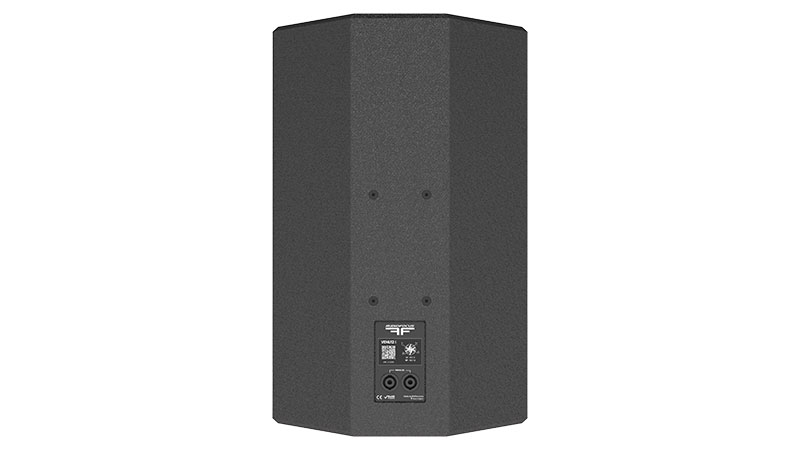

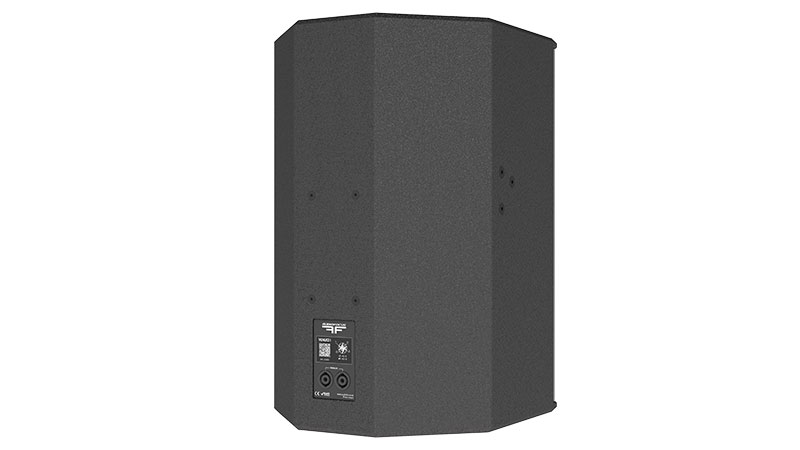

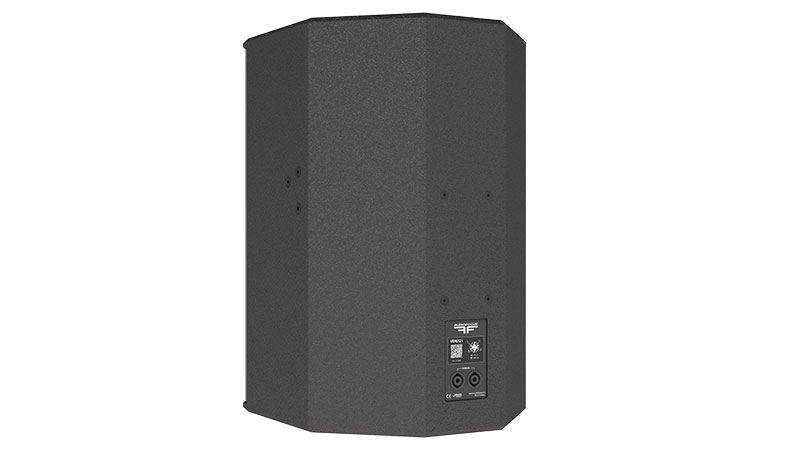

RiggingRear plate K&M compatible
Connectors2 × 4-point speakON
Nominal ImpedanceLF: 8ohm
HF: 8ohm
Watt AES/peakLF: 350/1400W
HF: 35/140W
Dimensions (H x W x D)566 x 362 x 357 mm
22.28 x14.25 x14.05 inches
Weight17.3kg / 38.13lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5

Gll files for Ease and Easefocus

Gll • 4.20 Mo • 06/01/2022

A Series Output Chart
VENU 12i

PDF • 2.76 Mo • 17/10/2022

Powersoft Presets
VENU 12i

Zip • 15 Ko • 20/12/2022

SCiO Presets
VENU 12i

Zip • 43 Ko • 09/01/2023

User Manual
VENU Series

PDF • 9.60 Mo • 13/07/2023
