VENU 12ix

Compact installation 2-way 12″ passive point source loudspeaker


TransducersLF: 1×12’’ / HF : 1×1’’
Frequency Range (-6dB)50Hz – 20kHz
SPL peak / 1m (measured)132 dB
Weight17.3kg / 38.13lbs
Share this product

Description

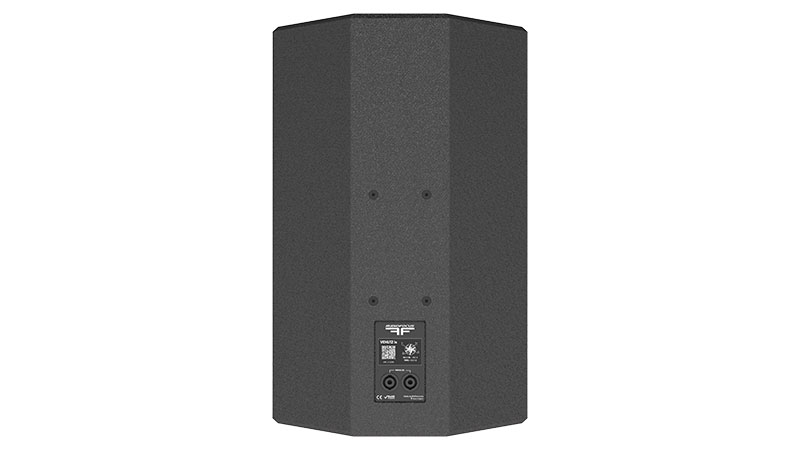

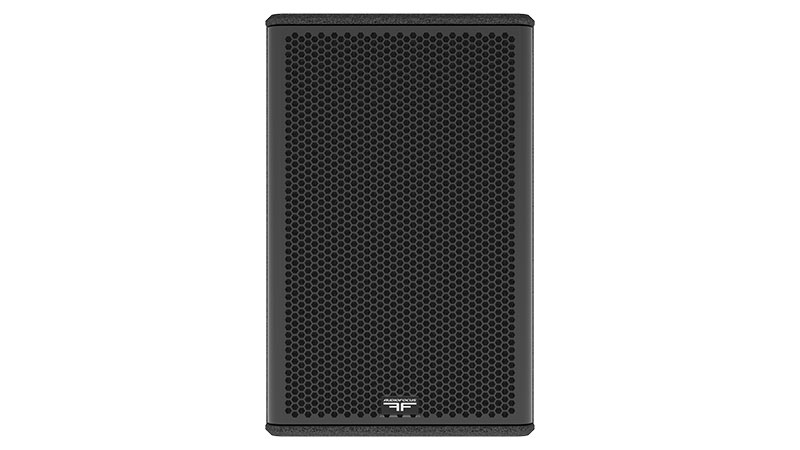

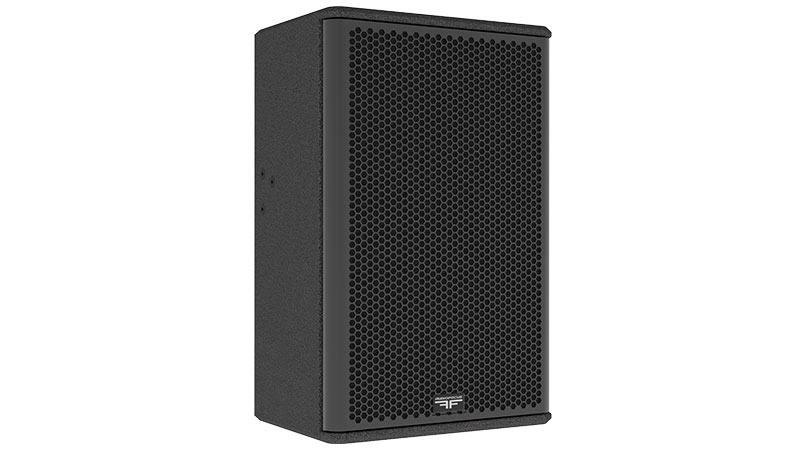

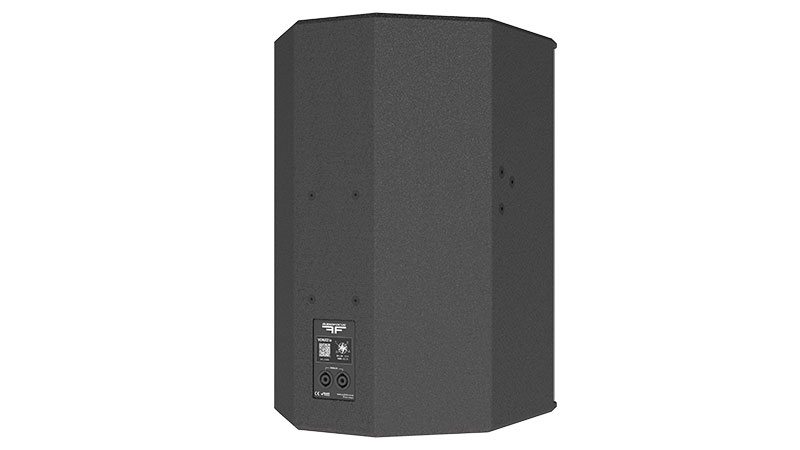

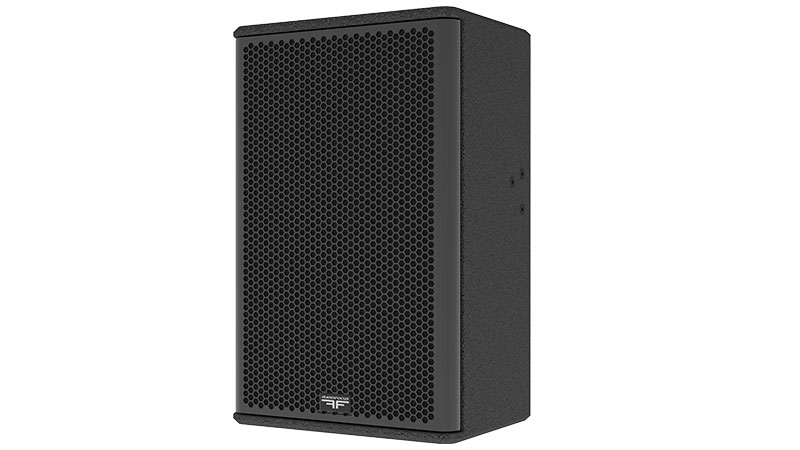

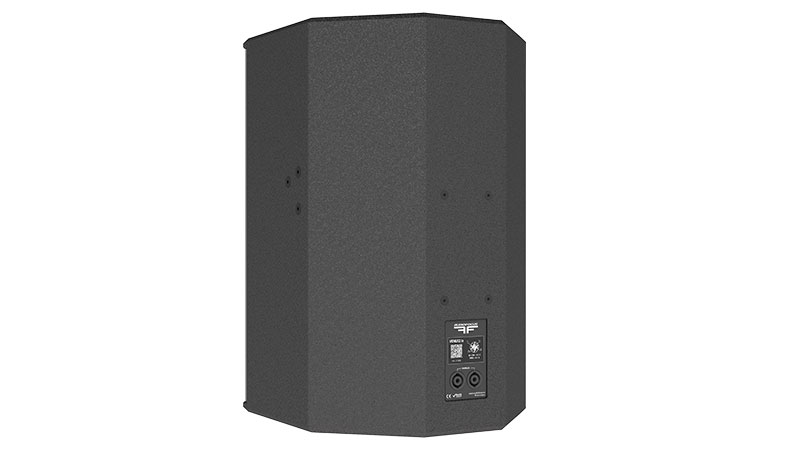

VENU 12ix is a passive 2-way top unit, delivering our signature audio quality in a compact format that is optimized for installation applications. With its small footprint and discreet appearance, VENU 12ix fits right in wherever sound and size matter – from bars and hotels to smaller music venues.

VENU 12ix can be quickly deployed in any configuration when used with AUDIOFOCUS A-704 SCiO, A-1504 SCiO, or A-3004 SCiO amplifiers with integral DSP and dedicated presets. Armonia presets are also available for Powersoft amplifiers.

VENU 12ix is built in Belgium to the same exacting standards as our pro touring ranges and coated in tough, weather-resistant polyurea to protect your investment.

Features

  • Compact 2-way FoH speaker
  • Optimised for permanent installation
  • Mirror monitor configuration
  • Threaded inserts
  • Passive cross-over network

Technical specifications

Description2-way passive full-range point source
Transducers LF: 1×12’’
HF : 1×1’’
Frequency range (-6dB)50Hz-20kHz
Nominal directivity (-6dB)110° x 60°
Rotatable horn
SPL Peak (1)132 dB
ProcessingDedicated AUDIOFOCUS A-series SCiO and Powersoft Armonia presets
RiggingRear plate K&M compatible
Connectors2 × 4-point speakON
Nominal Impedance8ohm
Passive cross-over network
Watt AES/peak350 W/ 1540 W
Dimensions (H x W x D)566 x 362 x 357 mm
22.28 x14.25 x14.05 inches
Weight17.3kg / 38.13lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5

Gll files for Ease
and Easefocus

Gll • 4.20 Mo • 06/01/2022

A Series Output Chart
VENU 12ix

PDF • 163 Kb • 19/04/2024

Powersoft Presets
VENU 12ix

Zip • 17 Kb • 22/05/2024

SCiO Presets
VENU 12ix

Zip • 9 Ko • 17/10/2022

User Manual
VENU Series

PDF • 9.60 Mo • 13/07/2023
