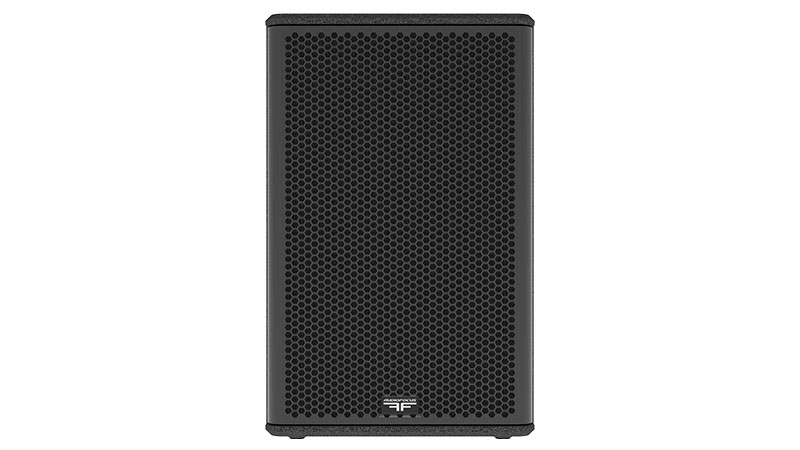

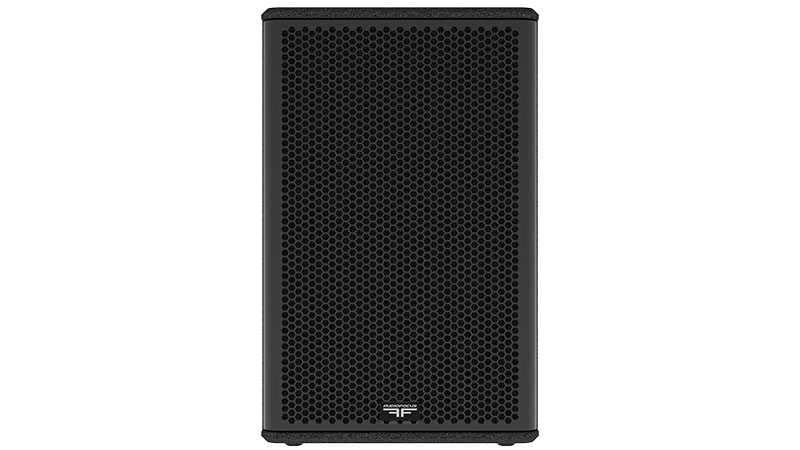

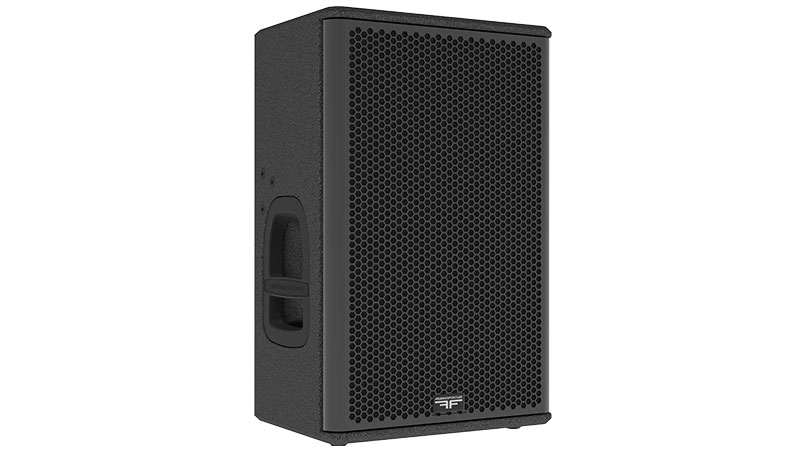

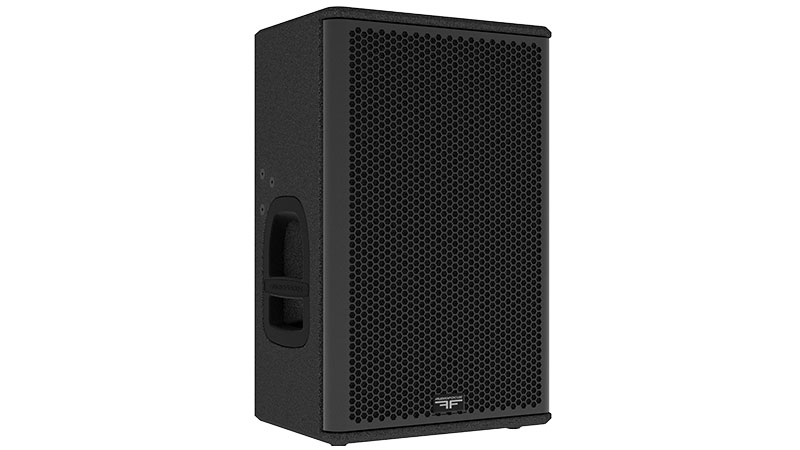

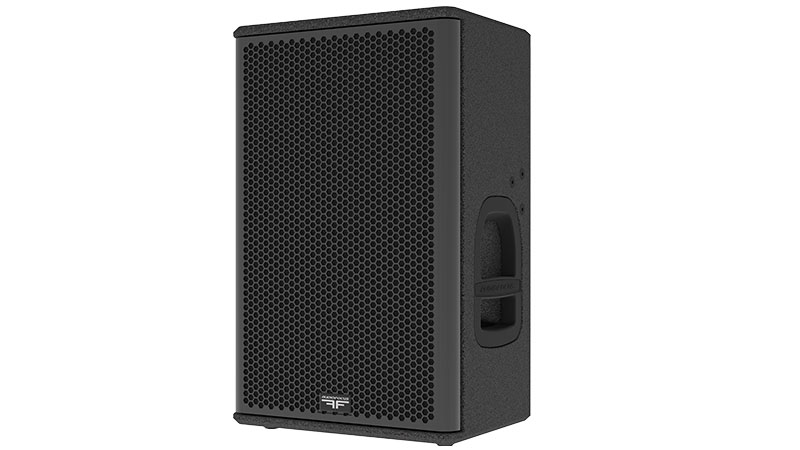

VENU 12x

Compact touring 2-way 12″ passive point source loudspeaker


TransducersLF: 1×12’’ / HF : 1×1’’
Frequency Range (-6dB)50Hz – 20kHz
SPL peak / 1m (measured)132 dB
Weight17.3kg / 38.13lbs
Share this product

Description

The ultimate multi-function workhorse loudspeaker, VENU 12x is a compact passive 2-way top unit for PA, parties, cafés, and rental companies. VENU 12x excels as a single top or with a companion subwoofer as a full-range PA system, and even as a monitor solution, delivering excellent return on your investment.

VENU 12x can be quickly deployed in any configuration when used with AUDIOFOCUS A-704 SCiO, A-1504 SCiO, or A-3004 SCiO amplifiers with integral DSP and dedicated presets. Armonia presets are also available for Powersoft amplifiers.

VENU 12x is built in Belgium to the same exacting standards as our pro touring ranges and coated in tough, weather-resistant polyurea to protect your investment.

Features

  • Compact 2-way FoH system
  • Suitable for mobile and portable use

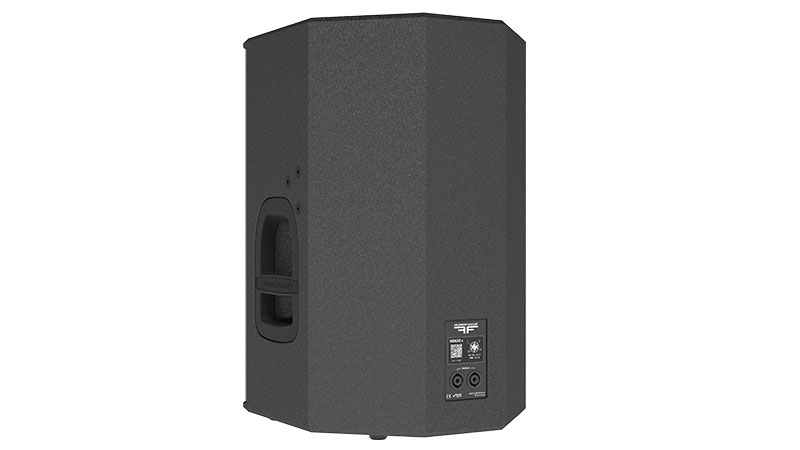

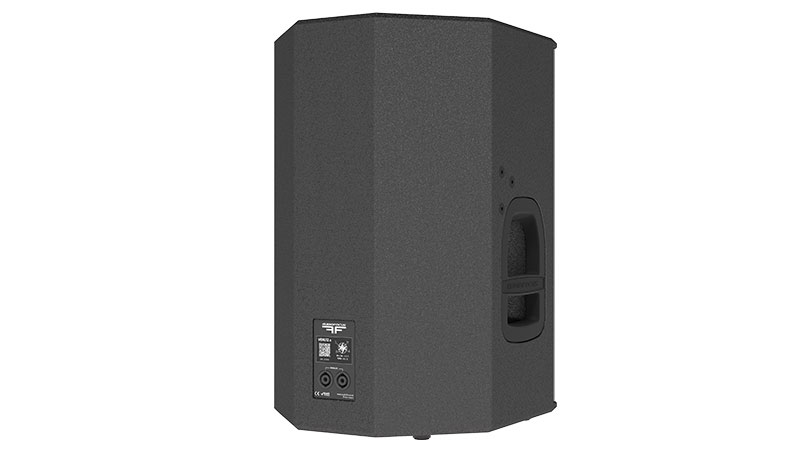

  • Rugged top and side carry handles
  • Mirror monitor configuration
  • Tiltable pole mounts
  • Passive cross-over network

Technical specifications

Description2-way passive full-range point source
Transducers LF: 1×12’’
HF : 1×1’’
Frequency range (-6dB)50Hz-20 kHz
Nominal directivity (-6dB)110°x60°
Rotatable horn
SPL max (1)132 dB
ProcessingDedicated AUDIOFOCUS A-series SCiO and Powersoft Armonia presets
RiggingAdjustable pole mount and M8 threaded inserts
Optional bracket available

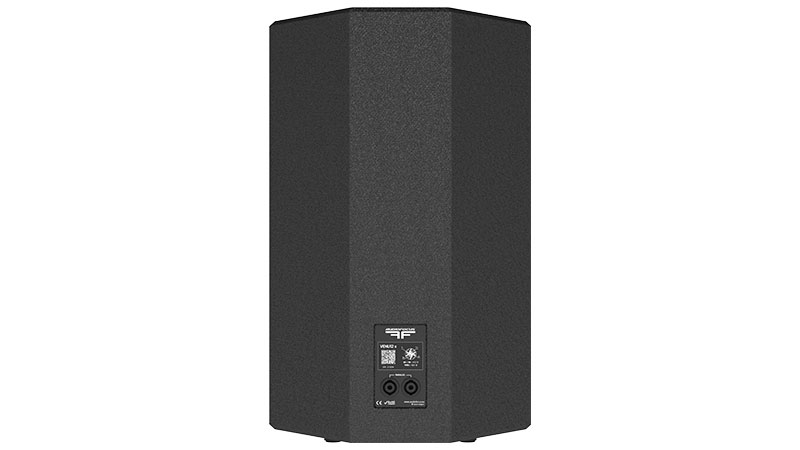

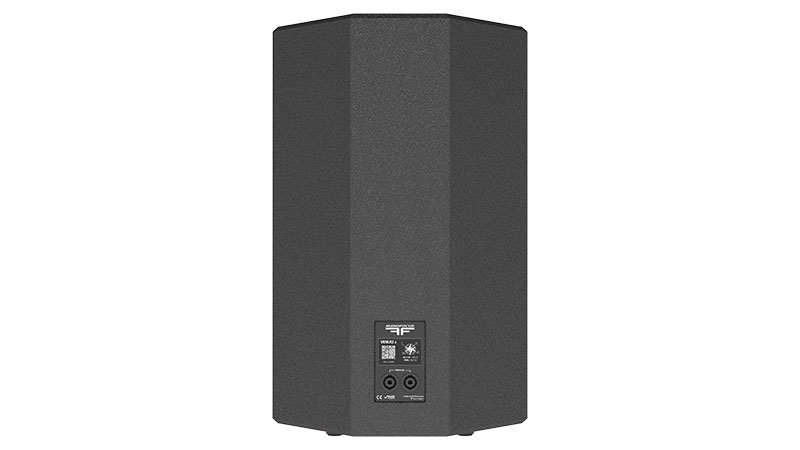

Connectors2 × 4-point speakON
Nominal Impedance8ohm
Passive cross-over network
Watt AES/peak350 W/ 1540 W
Dimensions (H x W x D)566 x 362 x 357 mm
22.28 x14.25 x14.05 inches
Weight17.3kg / 38.13lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5

Gll files for Ease and Easefocus

Gll • 4.20 Mo • 06/01/2022

A Series Output Chart
VENU 12x

PDF • 2.83 Mo • 17/10/2022

Powersoft Presets
VENU 12x

Zip • 15 Ko • 20/12/2022

SCiO Presets
VENU 12x

Zip • 9 Ko • 20/12/2022

User Manual
VENU Series

PDF • 9.60 Mo • 13/07/2023
