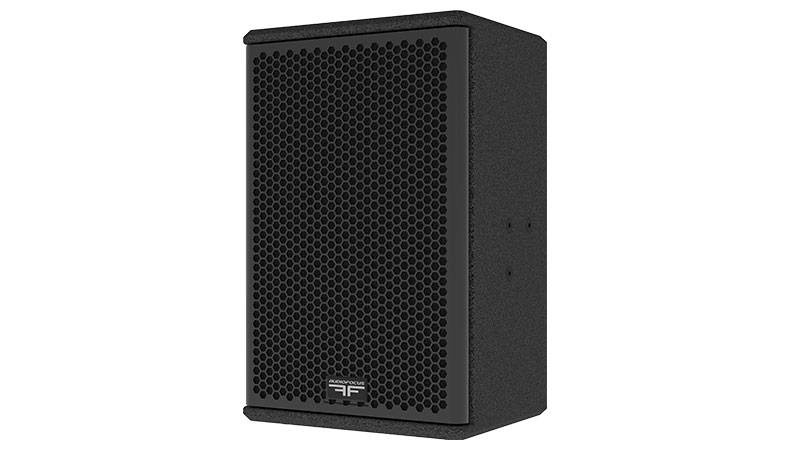

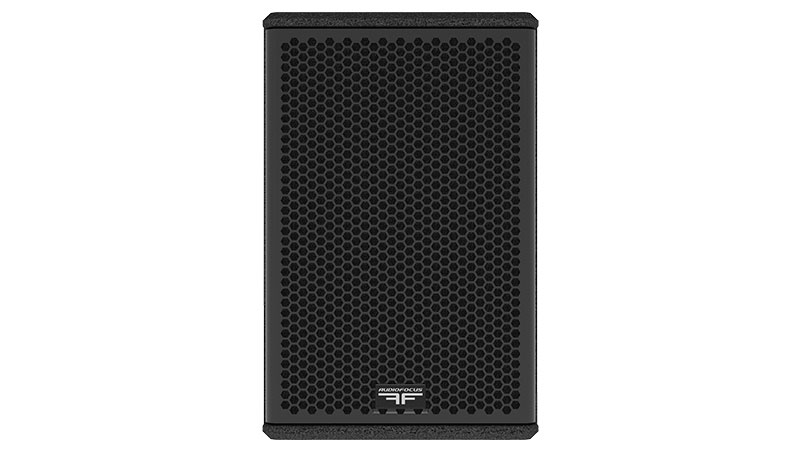

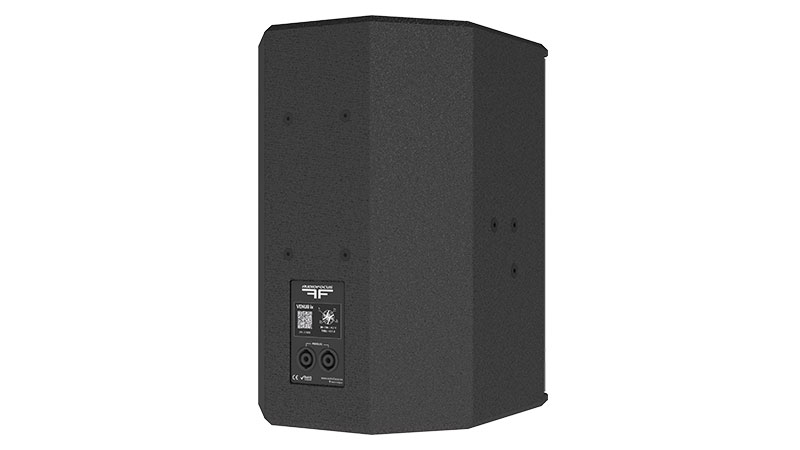

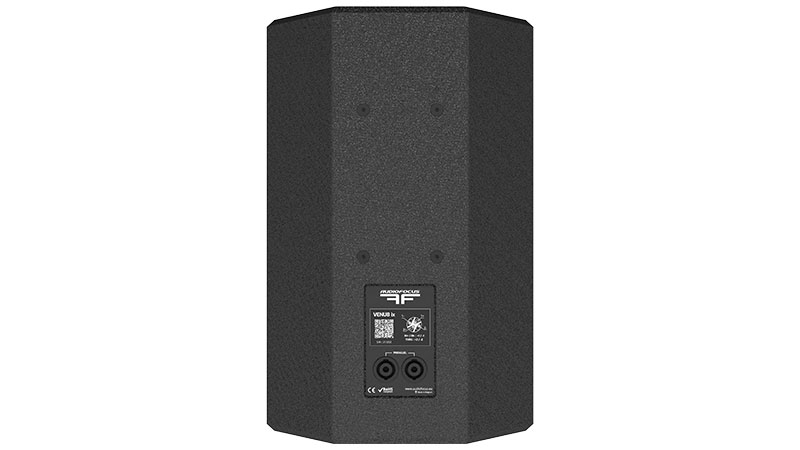

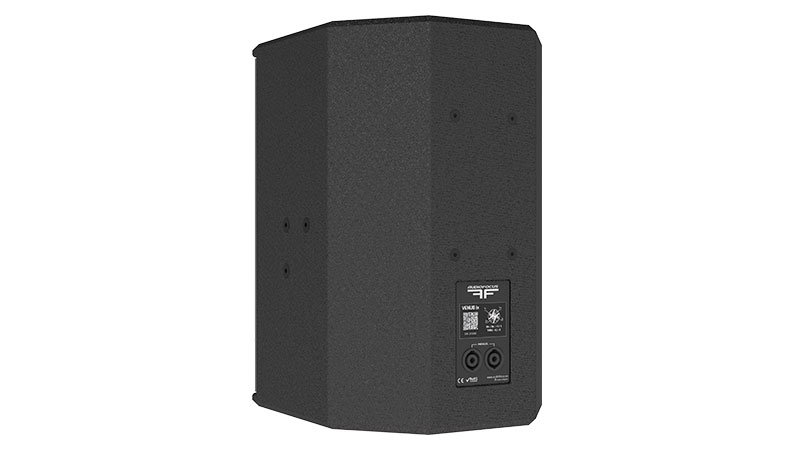

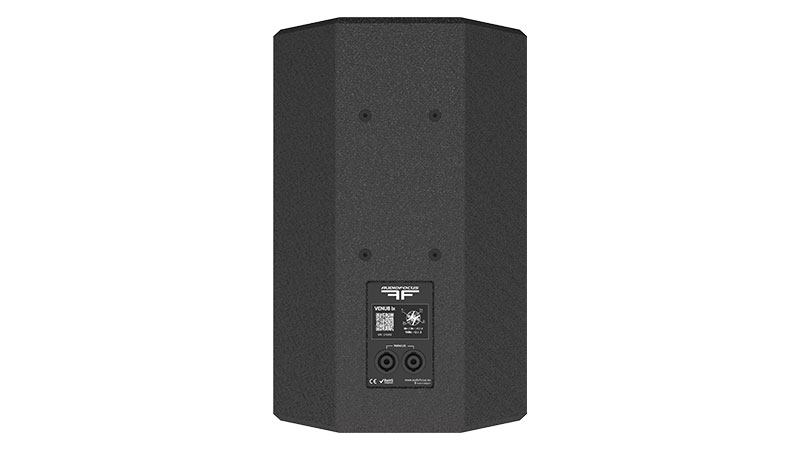

VENU 8ix

Compact installation 2-way 8″ passive point source loudspeaker

TransducersLF: 1×8’’ / HF : 1×1’’
Frequency Range (-6dB)55Hz – 20kHz
SPL peak / 1m (measured)131 dB
Weight10.1kg / 22.26lbs
Share this product


The 2-way VENU 8ix passive speaker delivers our signature audio quality in a discreet, compact, lightweight format, making it the go-to solution for any short throw sound reinforcement or live monitoring applications. Combined with an AUDIOFOCUS S-series sub, the VENU 8ix can also be used as a small PA system. Hotels and commercial venues will love VENU 8ix’s flexibility and portability.

The VENU 8ix can be powered by AUDIOFOCUS A-1504 SCiO or A-3004 SCiO amplifiers. Armonia presets are also available for Powersoft amplifiers.

The VENU 8ix is built in Belgium to the same exacting standards as our pro touring ranges and coated in tough, weather-resistant polyurea to protect your investment.


  • Compact 2-way FOH or monitor system
  • Optimized for permanent installations
  • Mirror monitor configuration
  • Threaded inserts
  • Passive crossover network

Technical specifications

Description2-way passive full-range point source
Transducers LF: 1×8’’
HF : 1×1’’
Frequency range (-6dB)55Hz-20 kHz
Nominal directivity (-6dB)80°x80°
SPL peak (1)131 dB
ProcessingDedicated AUDIOFOCUS A-series SCiO and Powersoft Armonia presets
RiggingRear plate K&M compatible
Connectors2 × 4-point speakON
Nominal Impedance8ohm
Passive cross-over network
Watt AES/peak216 W / 864 W
Dimensions (H x W x D)430 x 273 x 291 mm
16.77 x 10.82 x 11.41 inches
Weight10.1kg / 22.26lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5
