S 18

Touring high performance compact 18″ subwoofer


TransducersLF : 1 x 18″
SPL peak / 1m (measured)134 dB
Weight38.8kg / 85.53lbs
RiggingPole mount
Share this product

Description

S 18 is a compact, high-performance passive touring subwoofer, providing the perfect companion to the AUDIOFOCUS VENU, FR-X, or ARES 8 series in standalone and stacked configurations.

The subwoofer houses a long excursion 18″ neodymium driver and combines front diffusion, bass reflex, and transmission line design for ultimate efficiency and performance.

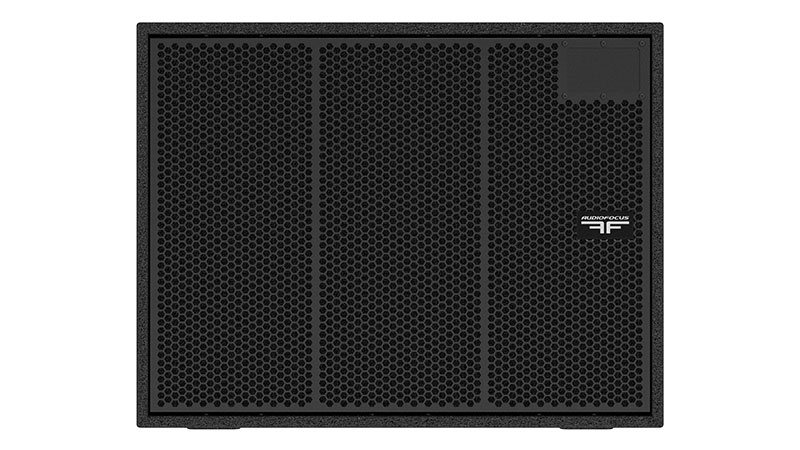

S 18 is built with pride in Belgium and coated in tough, weather-resistant polyurea to safeguard your investment. The cabinet front is protected by a rigid metal grill, backed by acoustically transparent foam. Its compact design and ergonomic handles make S 18 easy to transport and deploy.

S 18 can be quickly deployed in any configuration, including cardioid and end-fire, when used with AUDIOFOCUS A Series amplifiers. Armonia presets are also available for Powersoft amplifiers.

Features

  • Powerful bass-reflex T-line design
  • Mobile applications
  • Pole mount socket
  • Passive

Technical specifications

DescriptionHigh-power subwoofer
Transducers LF: 1 x 18″
Frequency range (-6dB)38Hz-100Hz
SPL peak (1)134 dB
ProcessingDedicated AUDIOFOCUS and Armonia/Powersoft omni and cardioid presets
RiggingPole socket

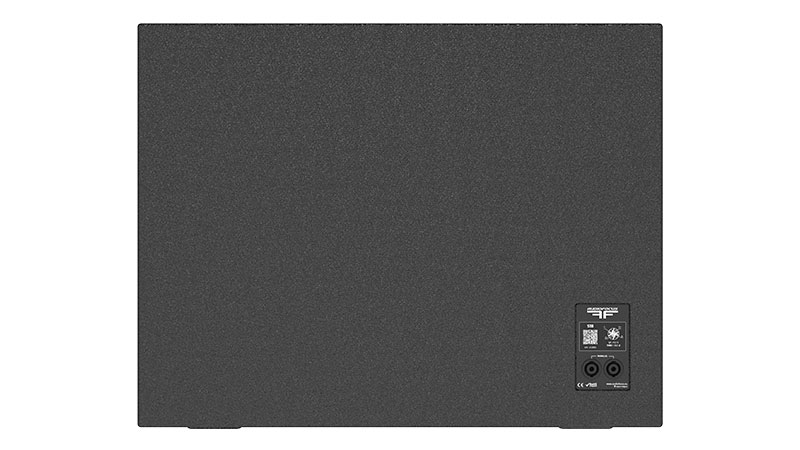

Connectors2 × 4-point speakON
Nominal Impedance8ohm
Watt AES/peak1200/4800W
Dimensions (H x W x D)510 x 650 x 560 mm
20.07 x 25.59 x 22.04 inches

Weight38.8kg / 85.53lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5

Gll files for Ease and Easefocus
S18

Gll • 1.64 Mo • 06/01/2022

Gll files for Ease and Easefocus
S18 Stack

Gll • 1.78 Mo • 06/01/2022

A Series Output Chart
S 18

PDF • 2.76 Mo • 18/10/2022

Powersoft Presets
S 18

Zip • 17 Ko • 20/12/2022

SCiO Presets
S 18

Zip • 43 Ko • 09/01/2023
