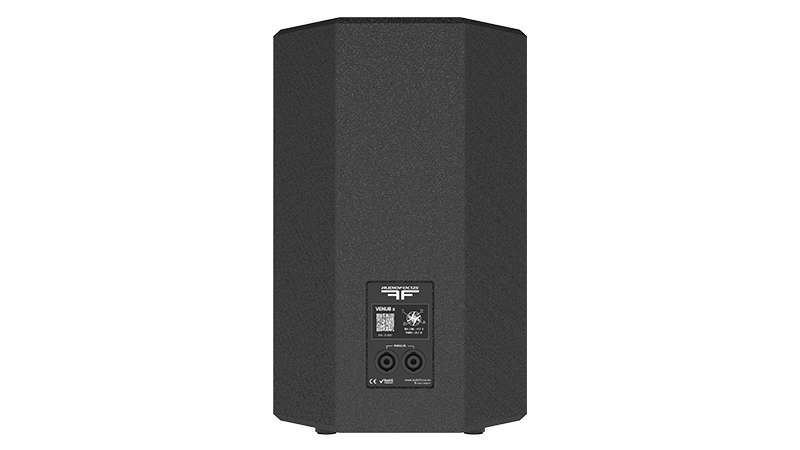

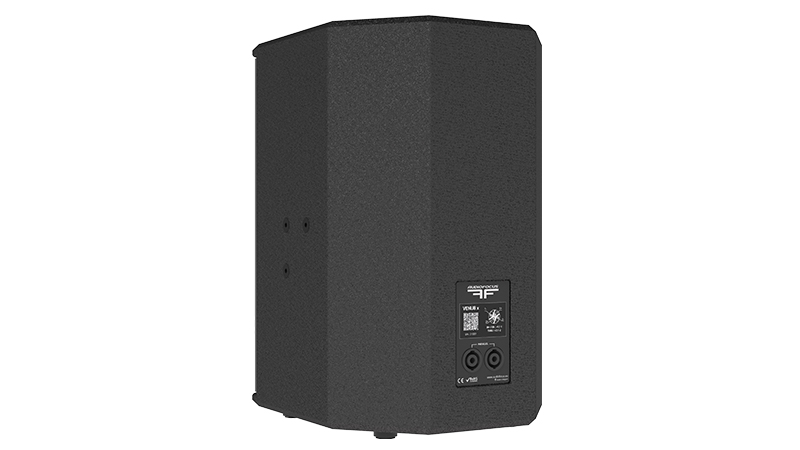

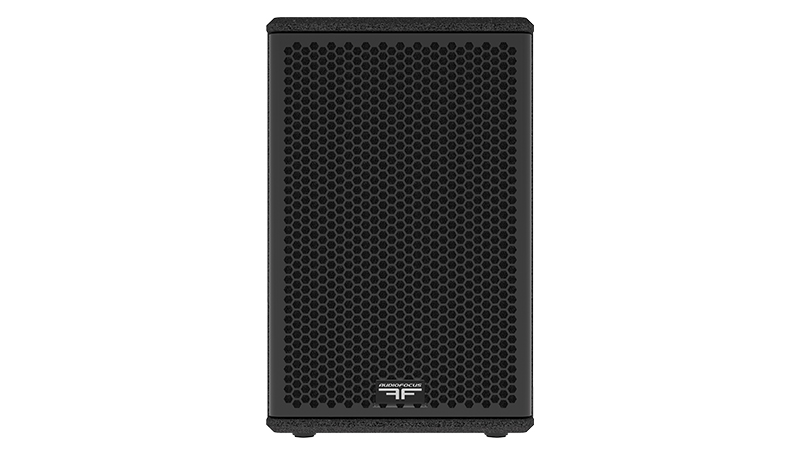

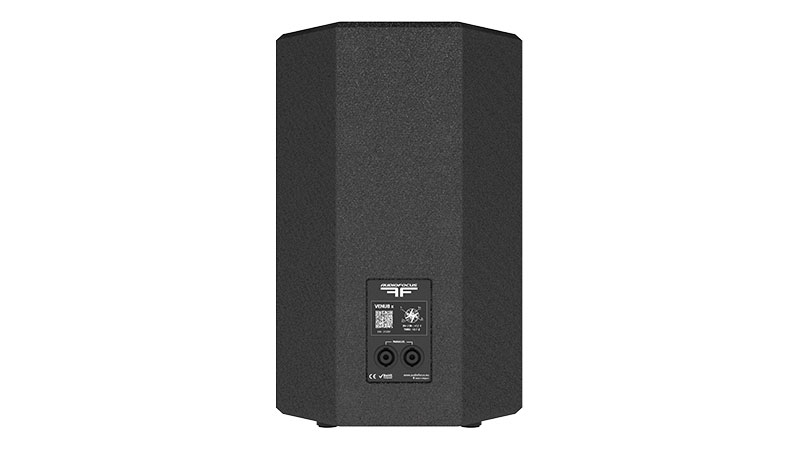

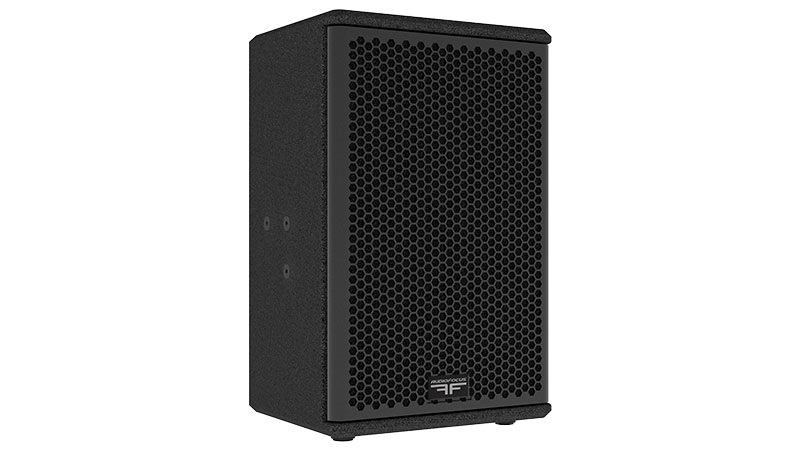

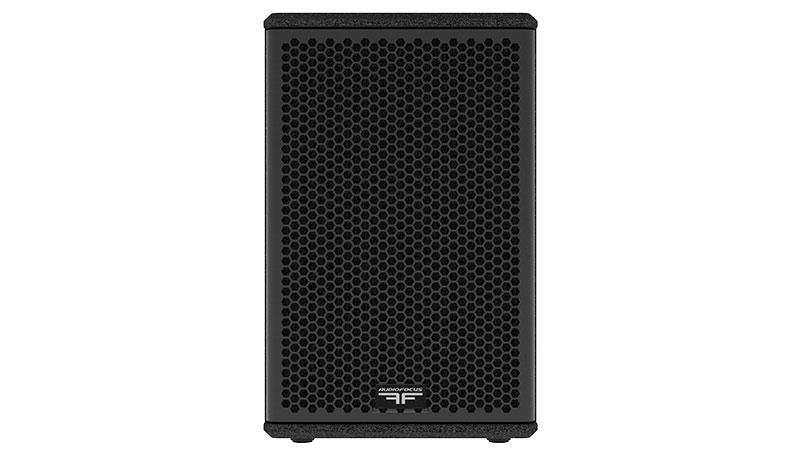

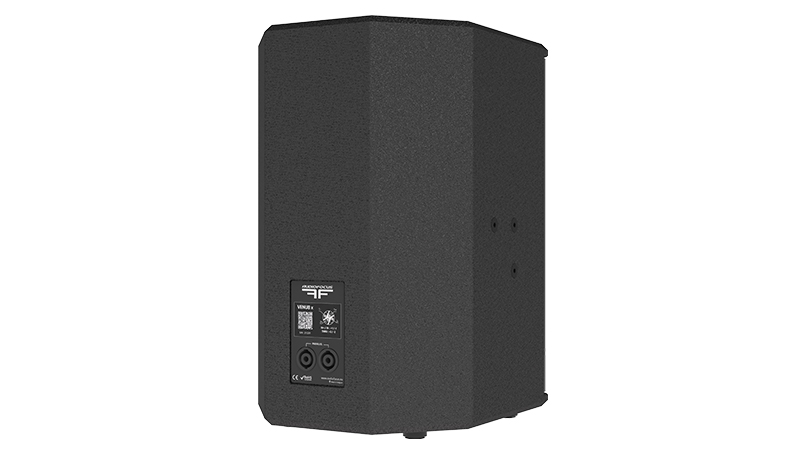

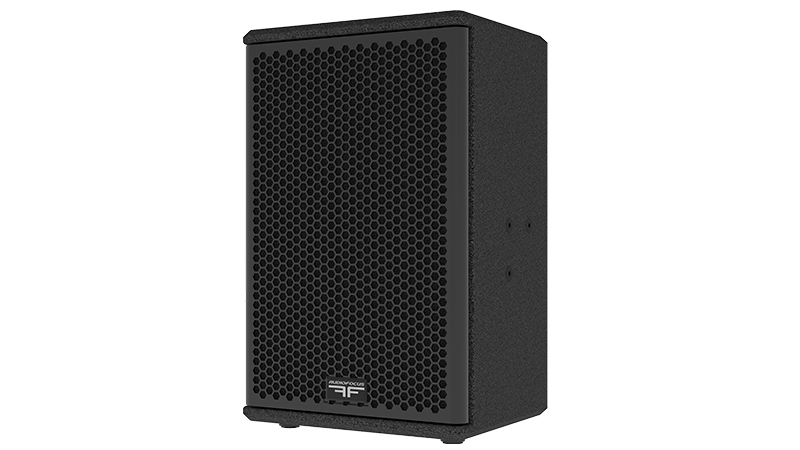

VENU 8x

Compact touring 2-way 8″ passive point source loudspeaker


TransducersLF: 1×8’’ / HF : 1×1’’
Frequency Range (-6dB)55Hz – 20kHz
SPL peak / 1m (measured)131 dB
Weight10.1kg / 22.26lbs
Share this product

Description

The 2-way passive VENU 8x speaker delivers our signature audio quality in a discreet, compact, lightweight format, making it the go-to solution for any short throw sound reinforcement or live monitoring applications. Combined with an AUDIOFOCUS S-series sub the VENU 8x can be used as a small PA system. Rental companies and venues will love VENU 8x’s flexibility and portability.

VENU 8x can be quickly deployed in any configuration when used with AUDIOFOCUS A-354 SCiO, A-704 SCiO, A-1504 SCiO, or A-3004 SCiO amplifiers with integral DSP and dedicated presets. Armonia presets are also available for Powersoft amplifiers.

VENU 8x is built in Belgium to the same exacting standards as our pro touring ranges and coated in tough, weather-resistant polyurea to protect your investment.

Features

  • Compact 2-way FOH or monitor system
  • Lightweight and portable
  • Mirror monitor configuration
  • Tiltable pole mounts
  • Passive

Technical specifications

Description2-way passive full-range point source
Transducers LF: 1×8’’
HF : 1×1’’
Frequency range (-6dB)55Hz-20 kHz
Nominal directivity (-6dB)80°x80°
SPL peak (1)131 dB
ProcessingDedicated AUDIOFOCUS A-series SCiO and Powersoft Armonia presets
RiggingAdjustable pole mount and M8 threaded inserts
Optional bracket available
Connectors2×4-point speakON
Nominal Impedance8ohm
Passive cross-over network
Watt AES/peak216 W / 864 W
Dimensions (H x W x D)430 x 273 x 291 mm
16.77 x 10.82 x 11.41 inches
Weight10.1kg / 22.26lbs
FinishHighly resistant polyurea coating

CabinetHigh grade birch plywood

(1) Peak level measured at 1 m under free field conditions using pink noise with crest factor 5

Gll files for Ease
and Easefocus

Gll • 3.27 Mo • 06/01/2022

A Series Output Chart
VENU 8x

PDF • 2.83 Mo • 17/10/2022

Powersoft Presets
VENU 8x

Zip • 15 Ko • 20/12/2022

SCiO Presets
VENU 8x

Zip • 2 Ko • 20/12/2022

User Manual
VENU Series

PDF • 9.60 Mo • 13/07/2023
