Description

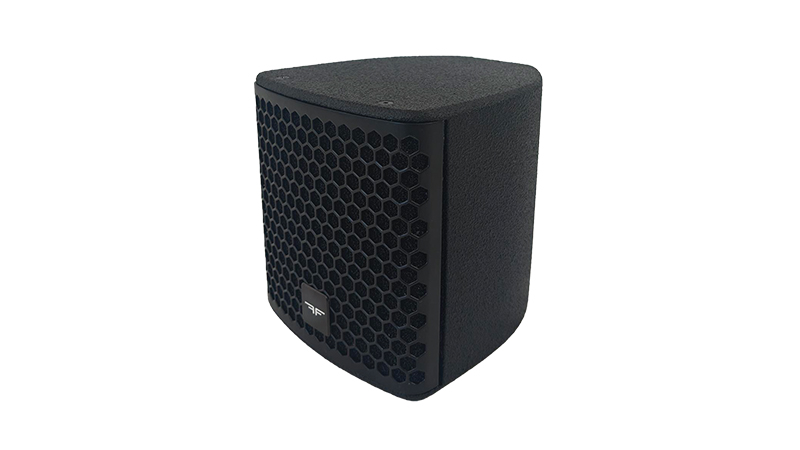

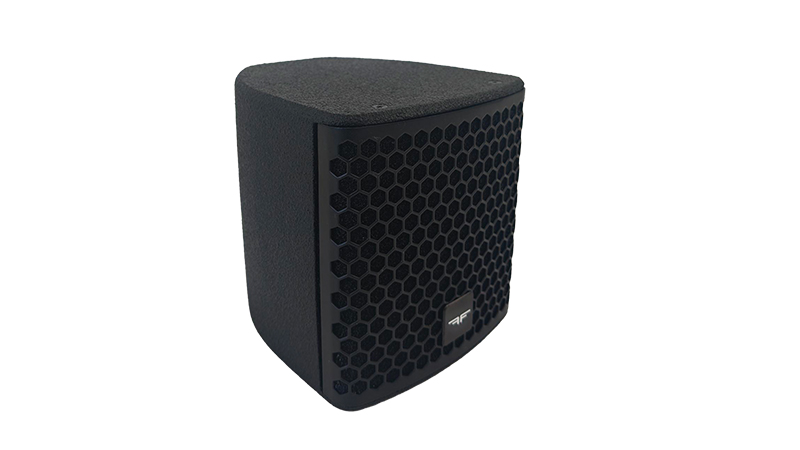

Cyris CX5 is a super-compact 2-way passive loudspeaker delivering exceptional power for its size in a discreet, elegant cabinet.
CX5 houses a powerful 5” coaxial transducer featuring an aluminium demodulation ring for low distortion and enhanced intelligibility and employs a lightweight neodymium ring magnet for excellent thermal efficiency.
CX5 can be teamed with other Cyris series speakers to create plug ‘n play solutions for bars, restaurants and other short throw applications. CX5 can be partnered with A-series rack amplifiers or up to 4 cabinets can be powered direct from the low-profile active C210Sa subwoofer.
A mic stand attachment allows fast deployment in portable setups while M6 inserts and an optional bracket enable wall / ceiling mounting.
Cyris CX5 upholds AUDIOFOCUS’ reputation for exceptional build quality and audio performance. The distinctive curved enclosure is hand-built in Belgium from birch plywood and premium components before being encased in a tough, UV and weather-resistant coating.
Features
- High SPL in a super-compact, portable design
- Plug ‘n play system building with CX6, CX8, C210S
- Floor / wall / mic stand mounting
- Flared vent to reduce low frequency distortion
- Durable birch plywood construction
Technical specifications
| Description | Coaxial 2-way passive full-range point source |
| Transducers | LF: 1×5” HF : 1×1” compression driver |
| Frequency range (-6dB) | 100Hz-18kHz |
| Nominal directivity (-6dB) | 90°x 90° |
| SPL peak (1) | 124.3 dB |
| Processing | Dedicated AUDIOFOCUS A-series SCiO and Powersoft Armonia presets |
| Rigging | 2 x M6 inserts for optional U bracket 1 × 3/8″ insert for microphone stand |

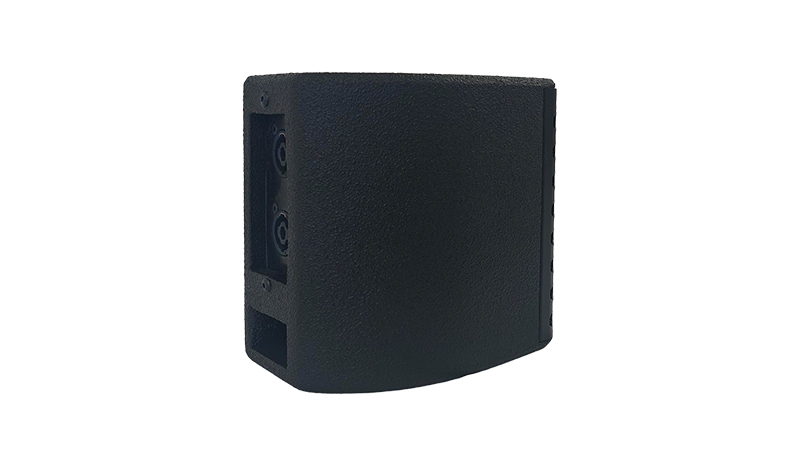

| Connectors | 2×4-point speakON |
| Nominal Impedance | 8ohm Passive cross-over network |
| Watt AES/peak | 135W / 540W |
| Dimensions (H x W x D) | 156 x 144 x 160mm 6.1 x 5.7 x 6.3 inches |
| Weight | 2.4kg / 5.31lbs |
| Finish | Highly resistant polyurea coating |
| Cabinet | High grade birch plywood |
(1)Mtone 12 dB crest factor with compression of 2dB average in the low section
A Series Output Chart CYRIS CX5
PDF • 221 Kb • 15/12/2025
Technical sheet CYRIS CX5
PDF • 1.2 Mb • 15/12/2025

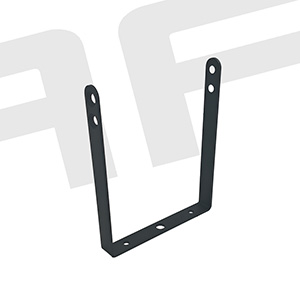

U-BRACKET FOR CX5
