|Max unclipped output voltage @8 Ω||175 Vpeak|
|Output power per channel||5200 W @ 2 Ω|
3000 W @ 4 Ω
1600 W @ 8 Ω

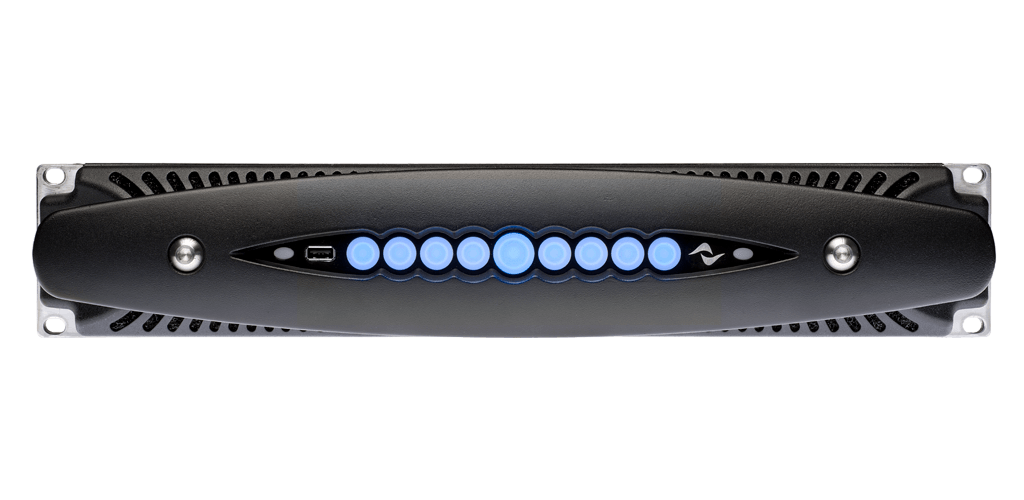

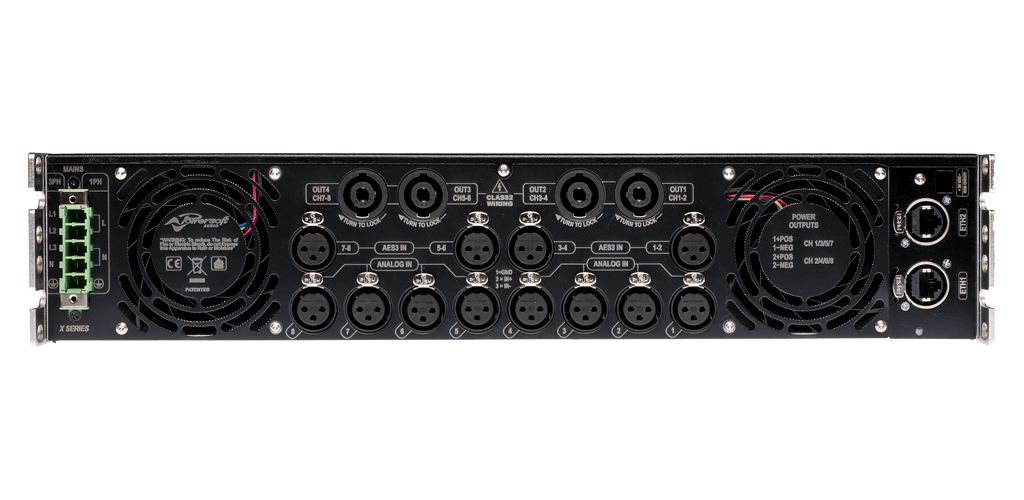

Powersoft X8 is a proven amplification platform for live touring, thanks to its worldwide compatible three-phase power supply and fully featured DSP. Custom presets allow full compatibility with passive and bi-amplified AUDIOFOCUS loudspeakers.
X4’s DSP provides non-boolean routing and mixing, multi-stage equalization with raised-cosine, IIR and FIR filters, delay up to 2s in input processing and 100ms for time alignment, gain and polarity adjustment, crossover, peak limiters, TruePower™ limiters, and Active DampingControl™.
The power supply permits worldwide AC acceptance and direct connection to any regional power line configuration: it is now suitable for Single Phase, Bi-Phase, or Three Phase operation from 85 VAC up to 440 VAC without the need for manual selection. True Three Phase load balancing is directly achievable by the unit without any complex load assignment in the power distribution system design.
- Single Phase, Bi Phase, Three Phase operation from 85 VAC to 440 VAC.
- Low Inrush Limiting reduces AC inrush current, removing need for power sequencers.
- Signal grouping for speaker routing.
- Hardware monitoring available for fast local diagnostic.
- Input delay up to 2 s and output delay up to 100 ms for time alignment per channel.
- Active DampingControl™ for cable compensation.
- Compact size and high power density.
- Fully protected circuit design.
- 6th generation fixed frequency switchmode output stage for high grade sound accuracy.
- AES3 digital inputs.
- Two Dante™ streams.
- TI C6000 DSP platform architecture.
- Power limiter (RMS, Peak, Clip, TruePower™, and Current).
- WiFi remote management via smartphone and tablet.
BUILDING INFORMATION MODELING – BIM
AUDIOFOCUS has been creating professional touring + installation loudspeakers for 20+ years. 100% made in Belgium – supported worldwide.
